Ubiquiti Networks UBB-XG-US
- SKU: UBB-XG-US
$999.00
Product Information

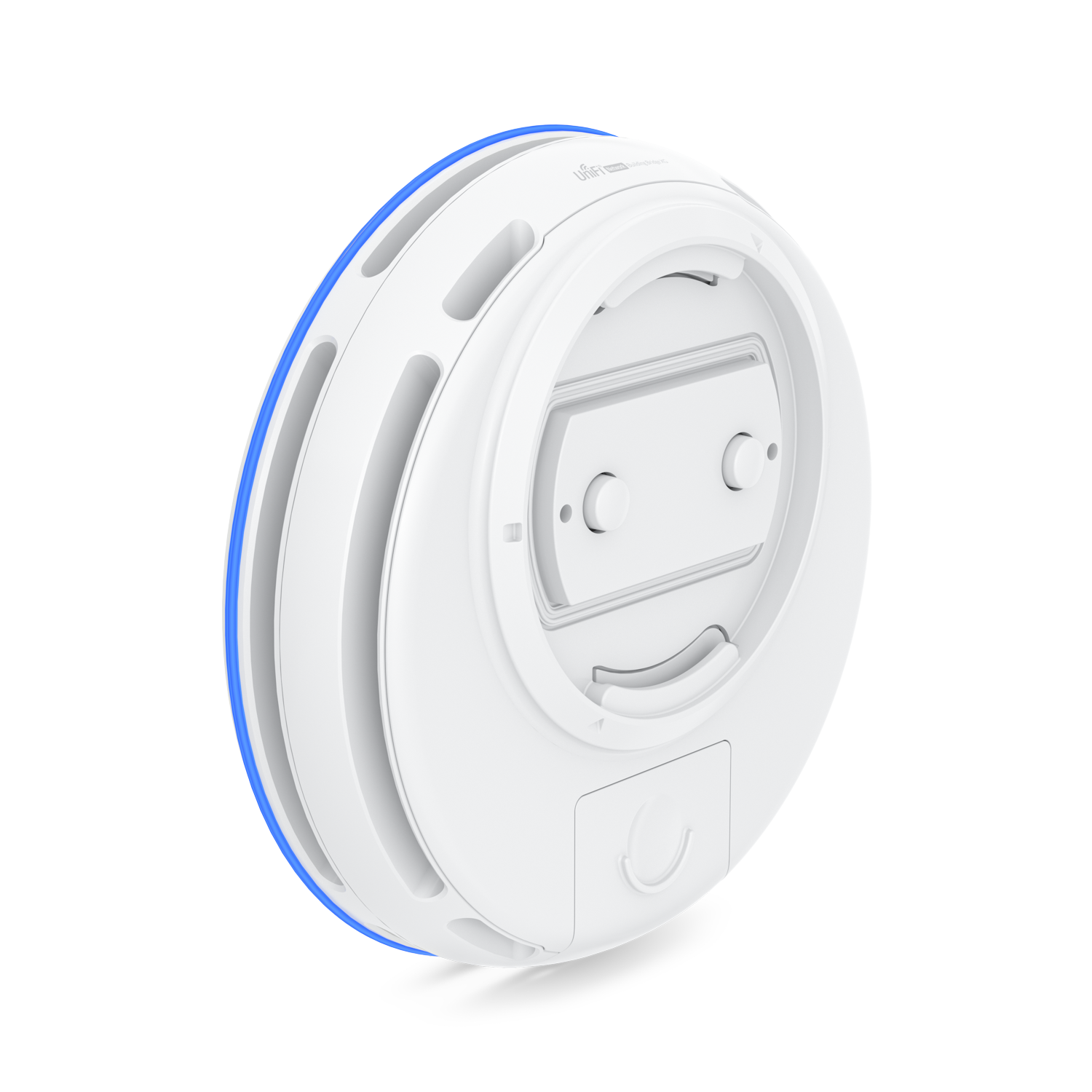

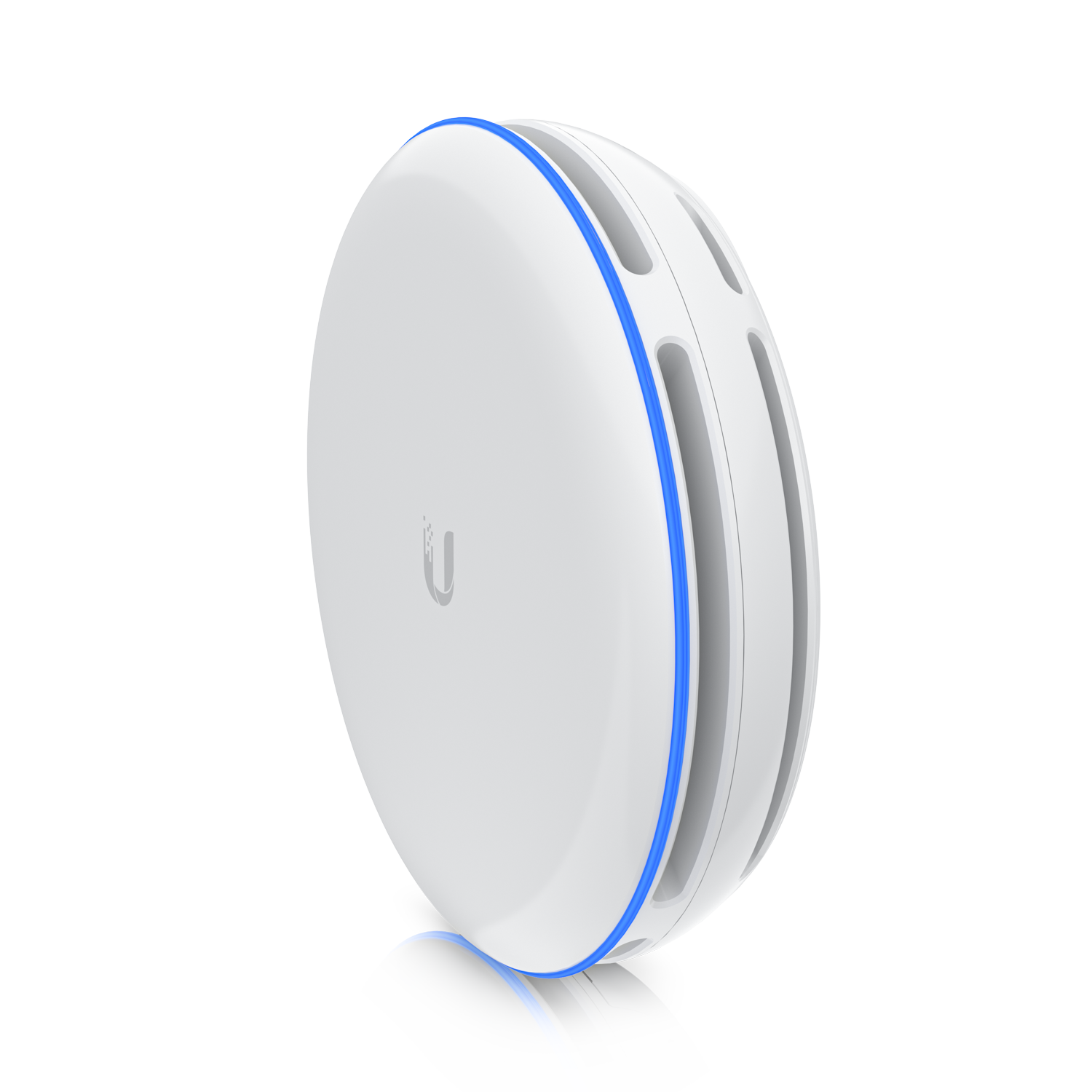

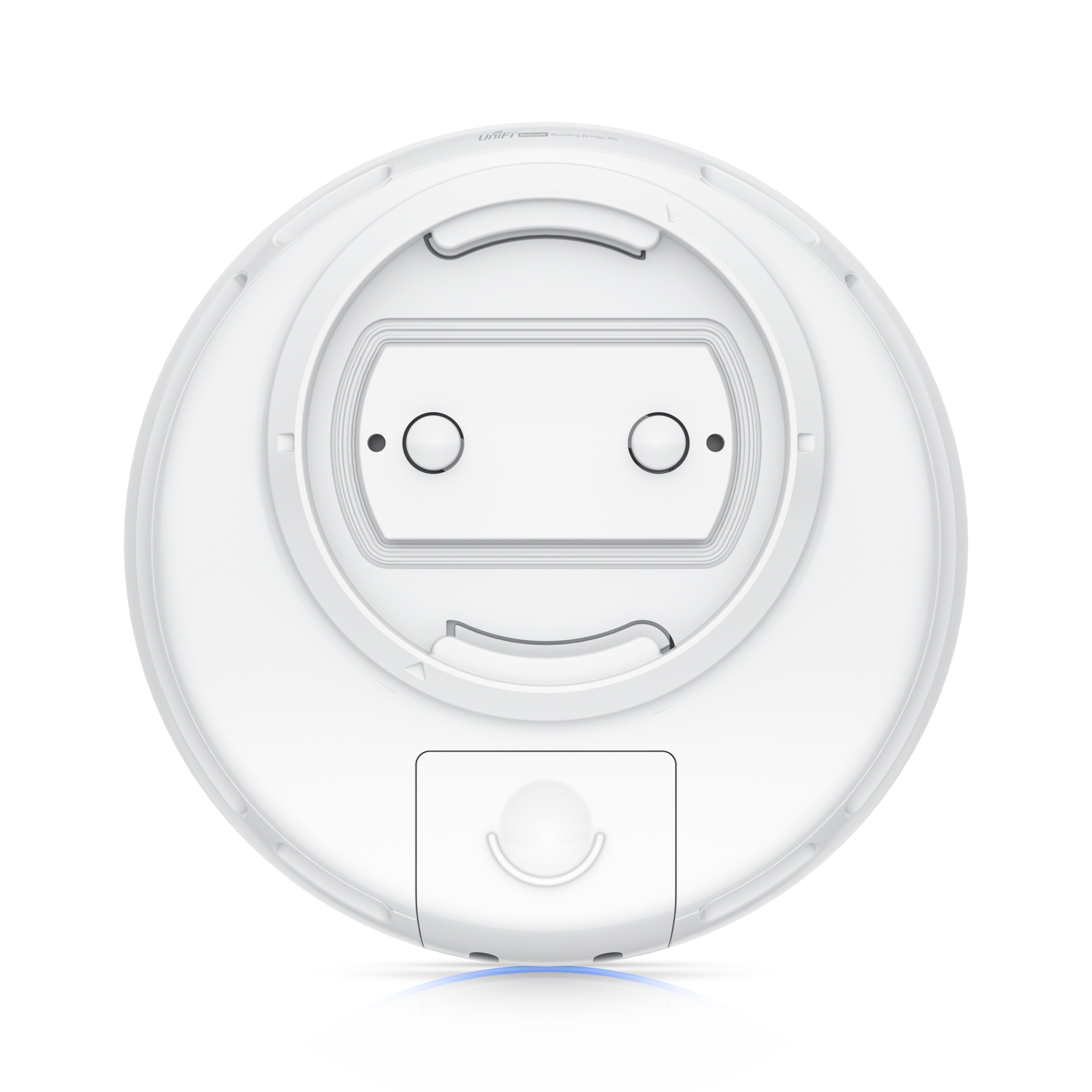

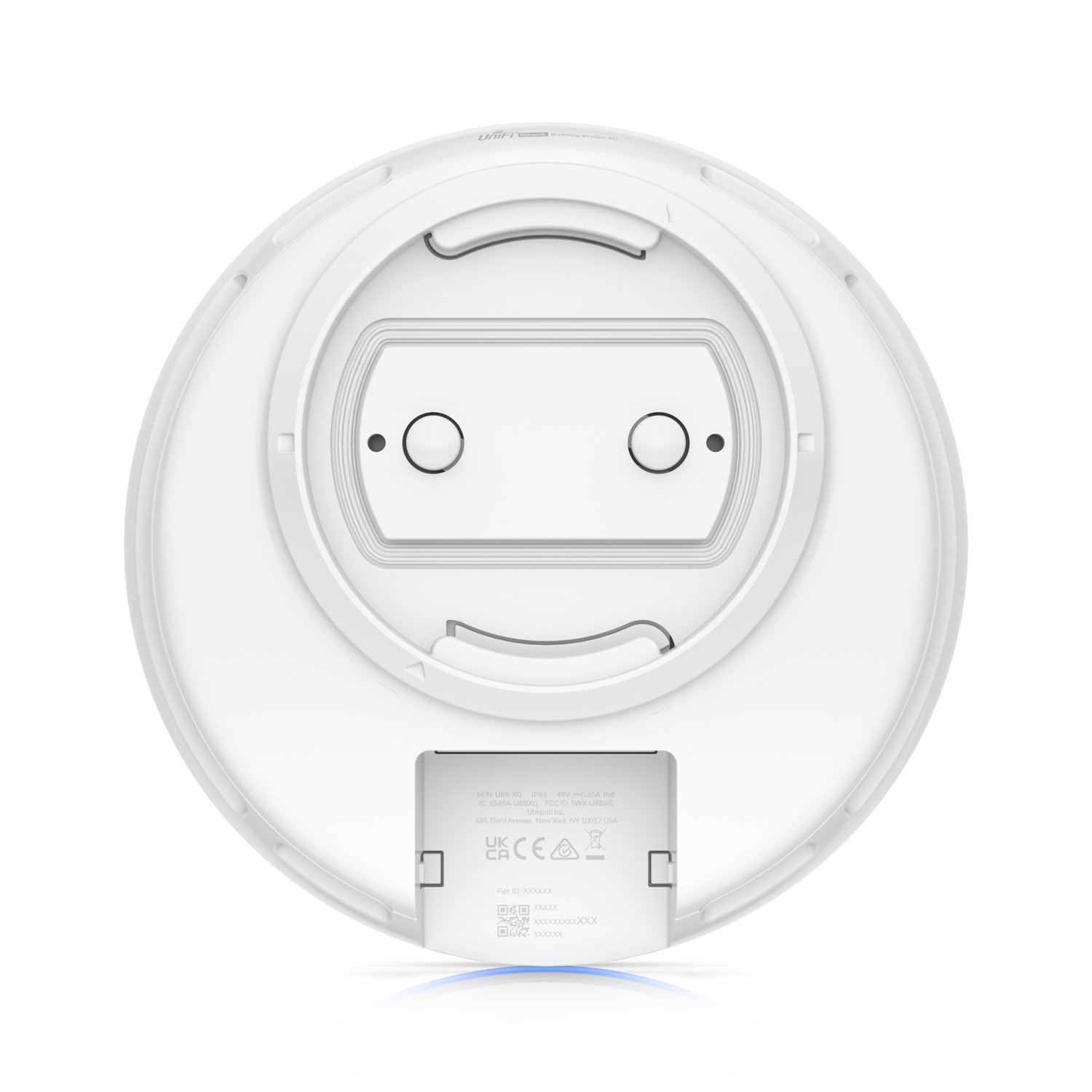

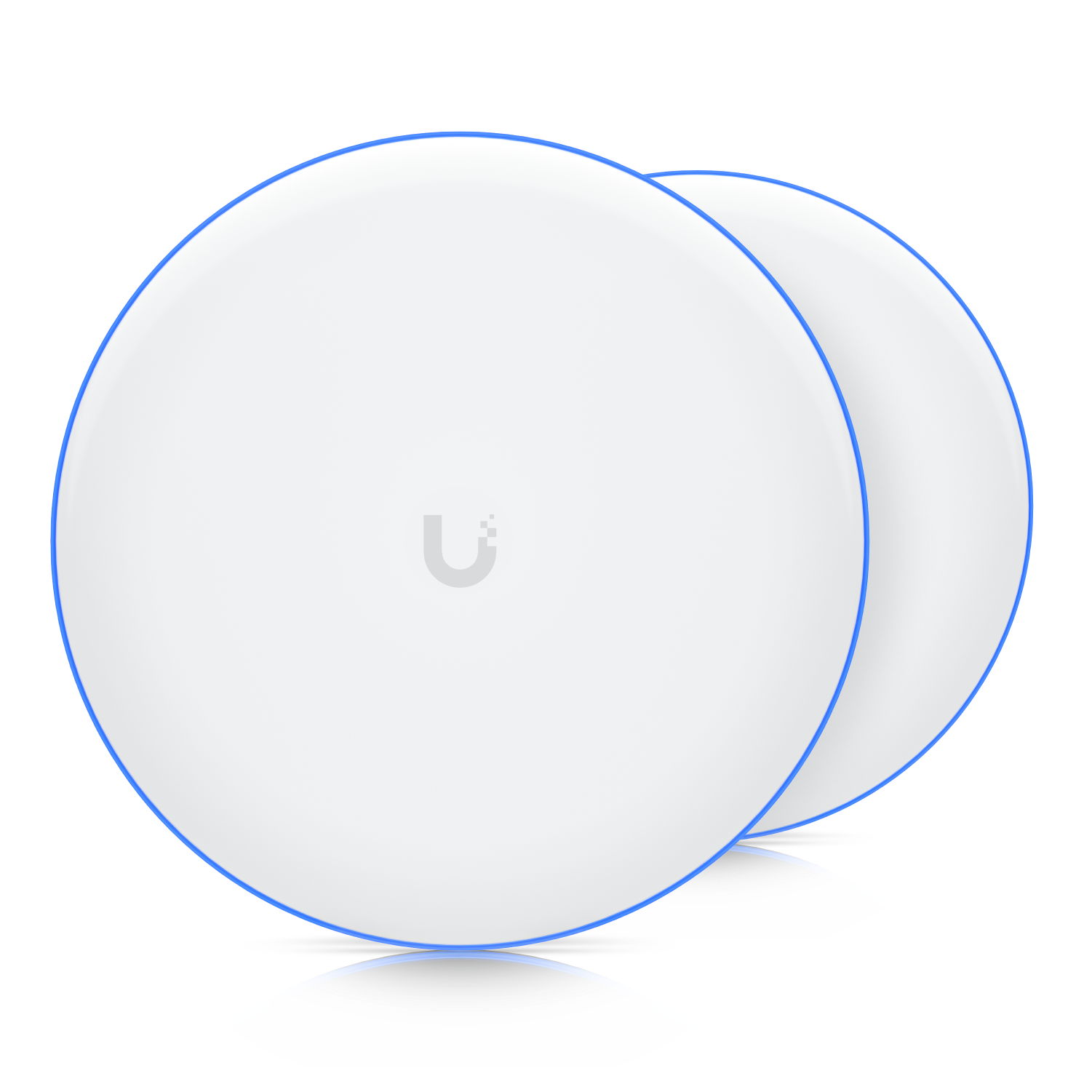

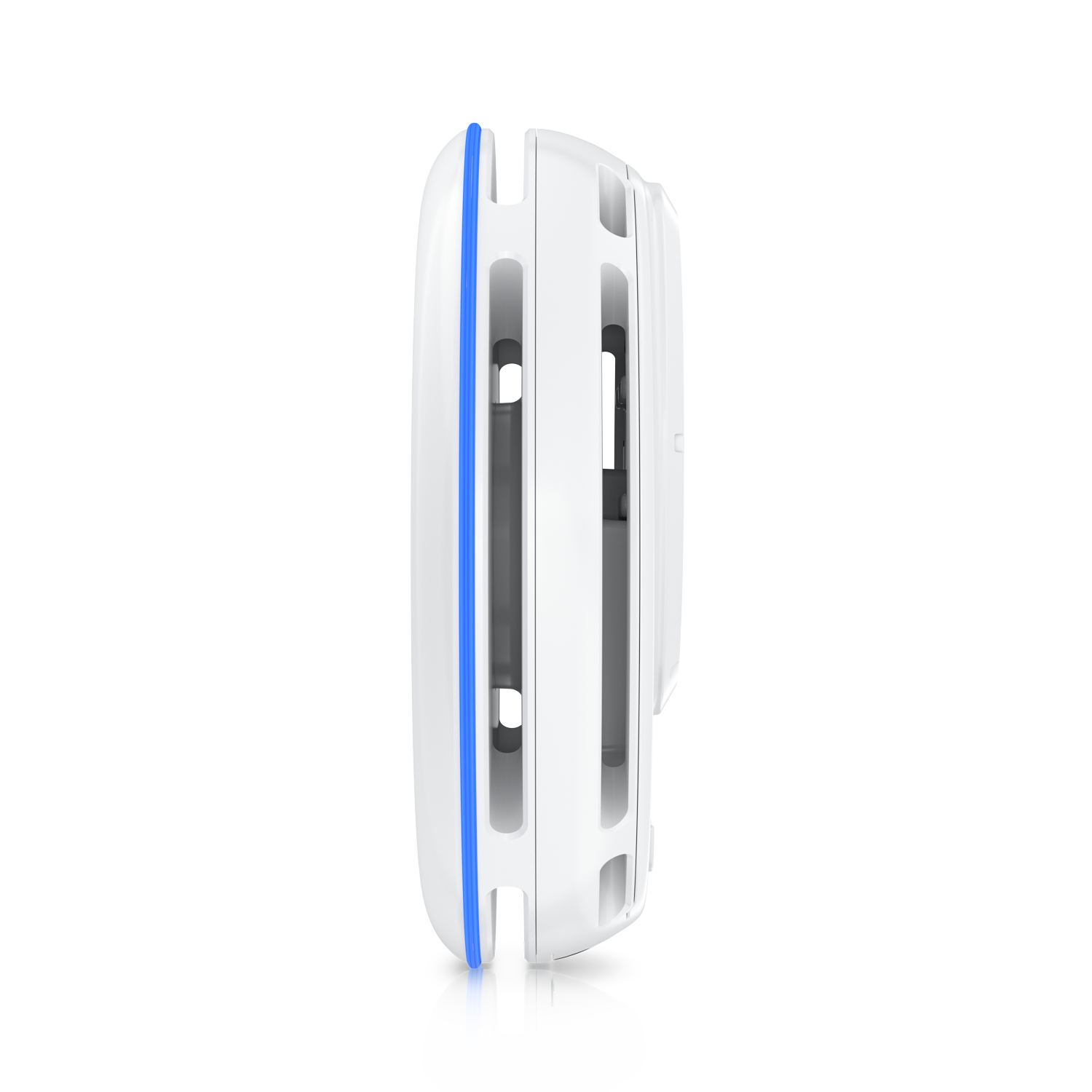

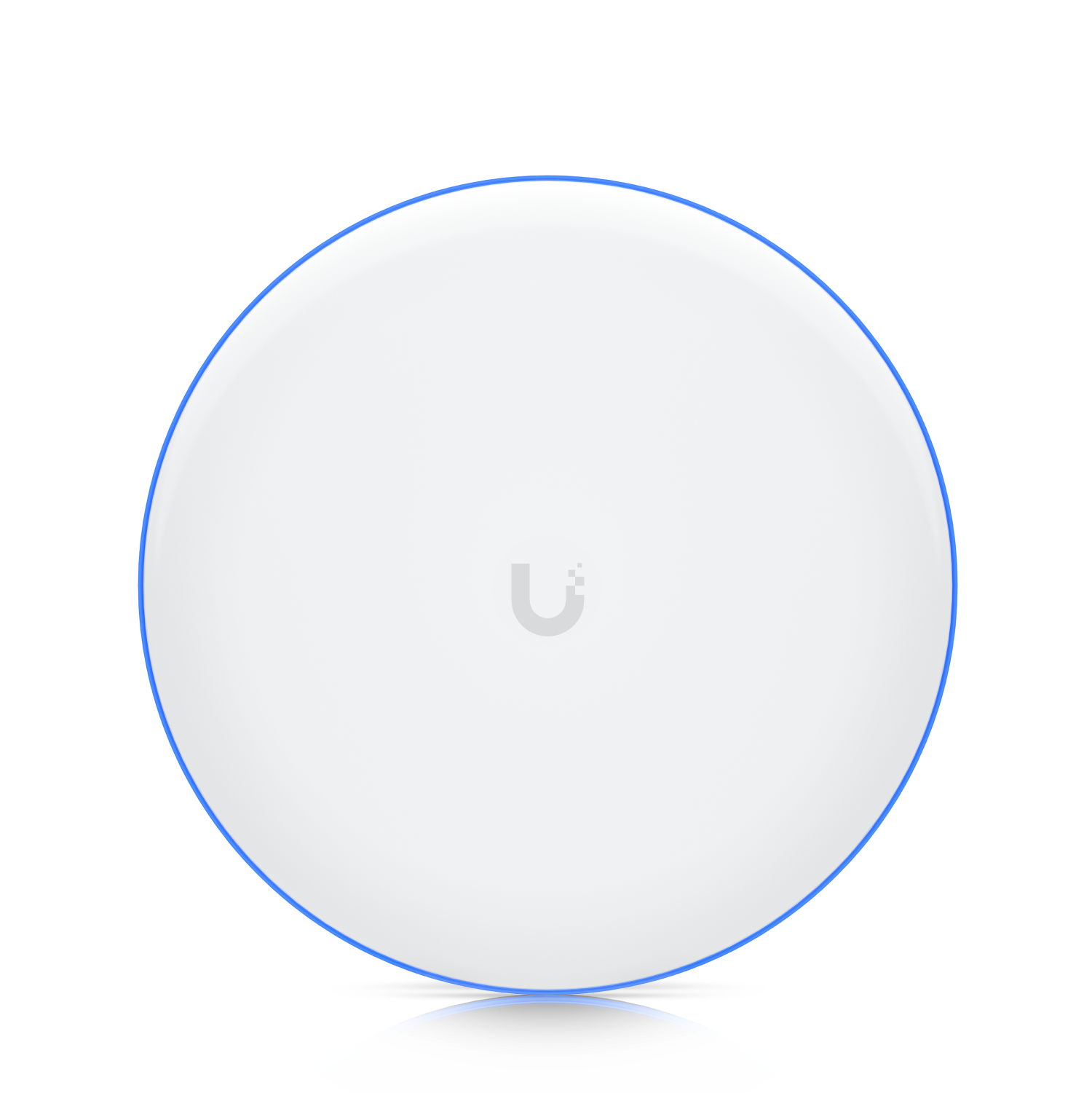

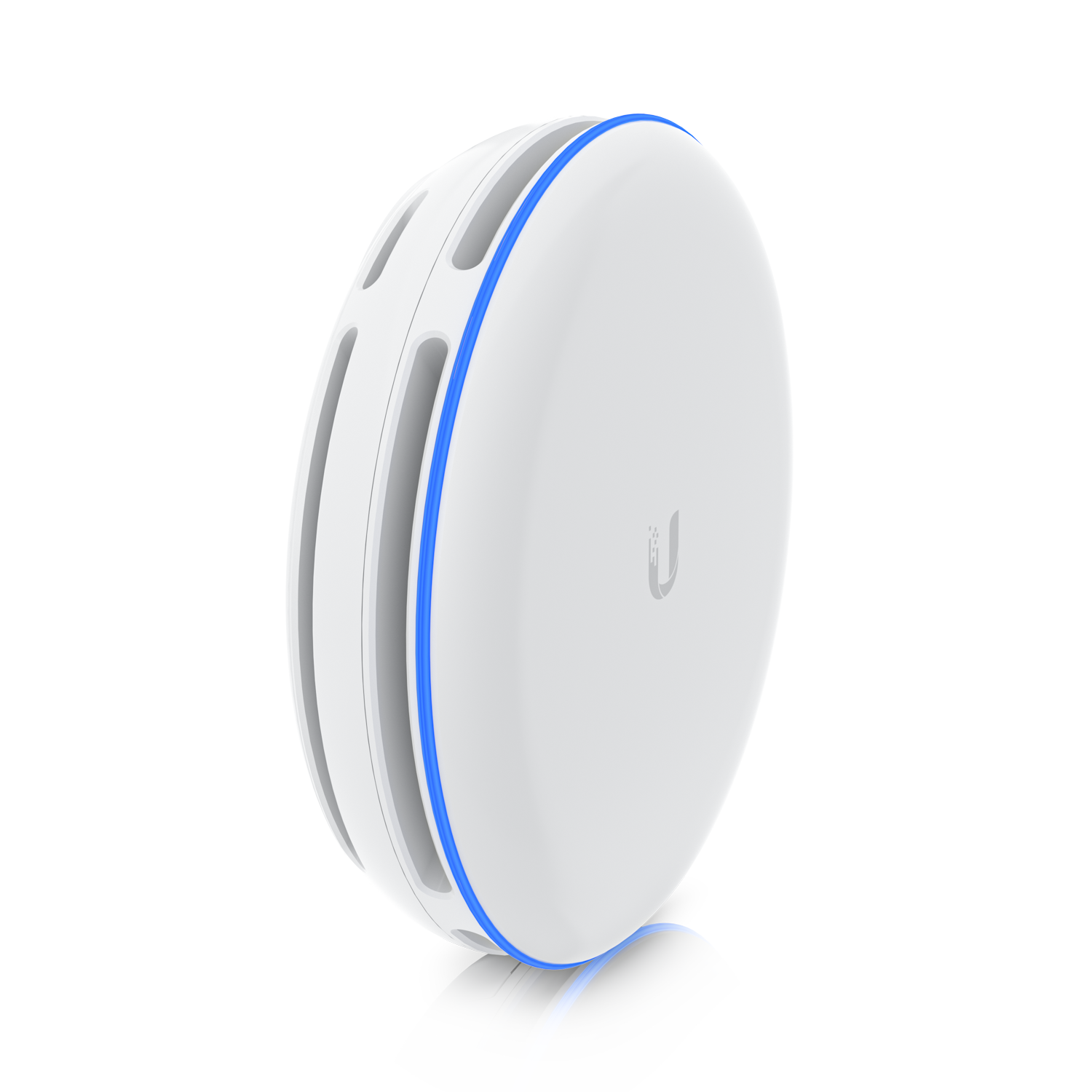

Ubiquiti Unifi Building Bridge XG (2-pack)
Specifications
Specifications UBB-XG
| Mechanical | |
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Pole mount diameter | 1-2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |

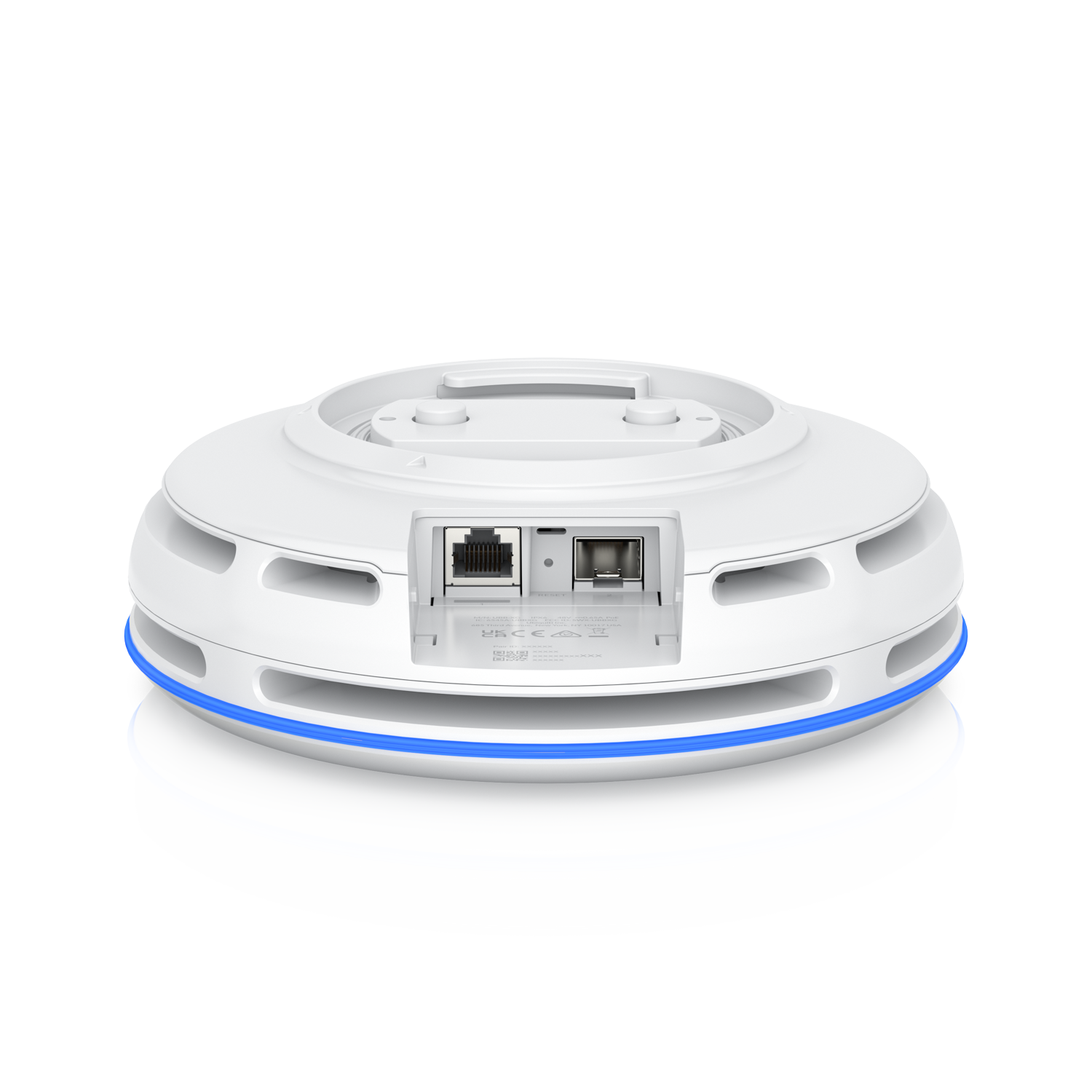

| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) 2-pairs (4, 5+; 7, 8-) |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz) | – 23 dBm – 16 dBm (60 GHz) |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 866.6 Mbps (BW80) – 6 Gbps (60 GHz) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | – 14 dBi – 21 dBi (60 GHz |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |

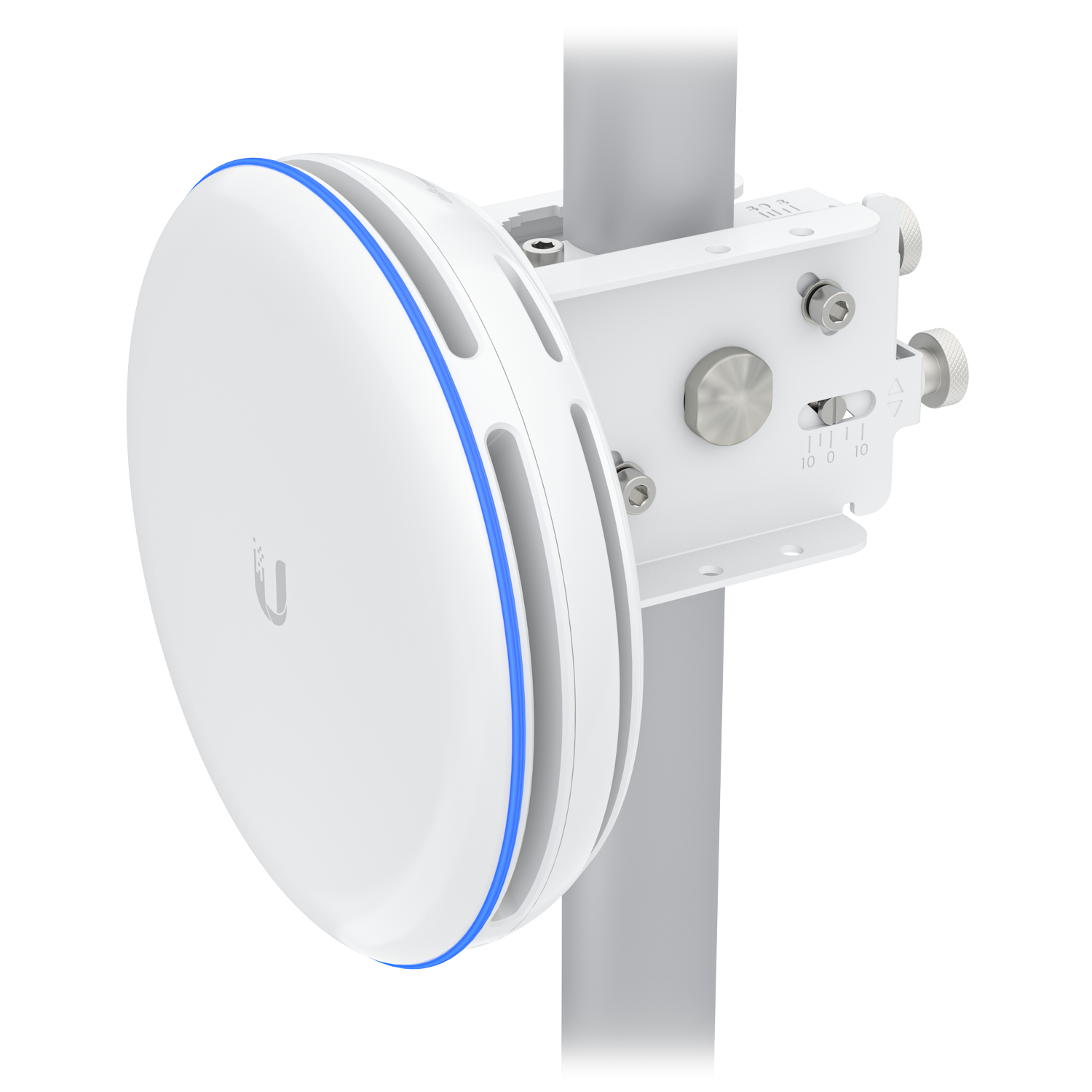

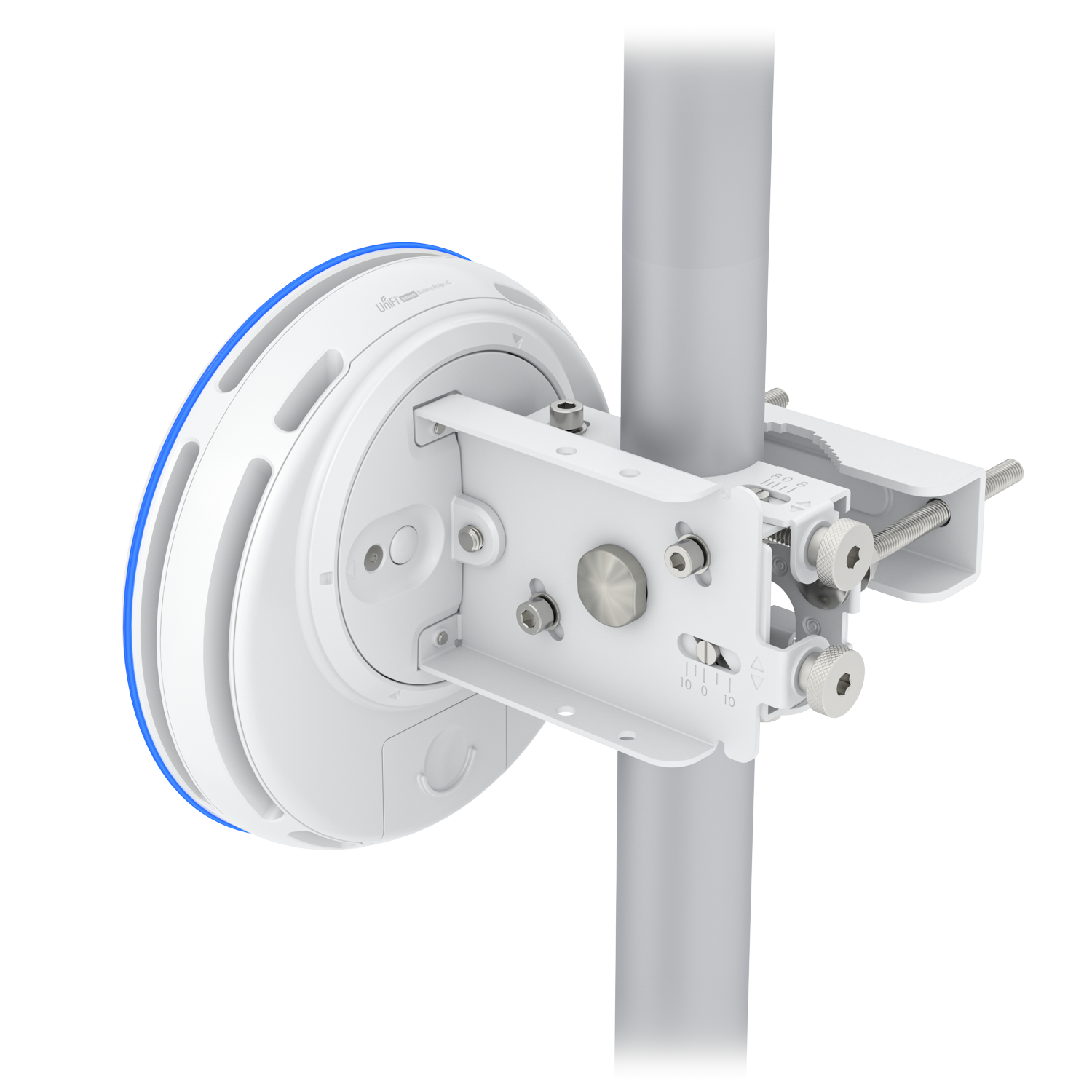

| Mounting | 60G precision alignment pole mount (Included) |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CA | U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz |
| Worldwide | 5,150 - 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
