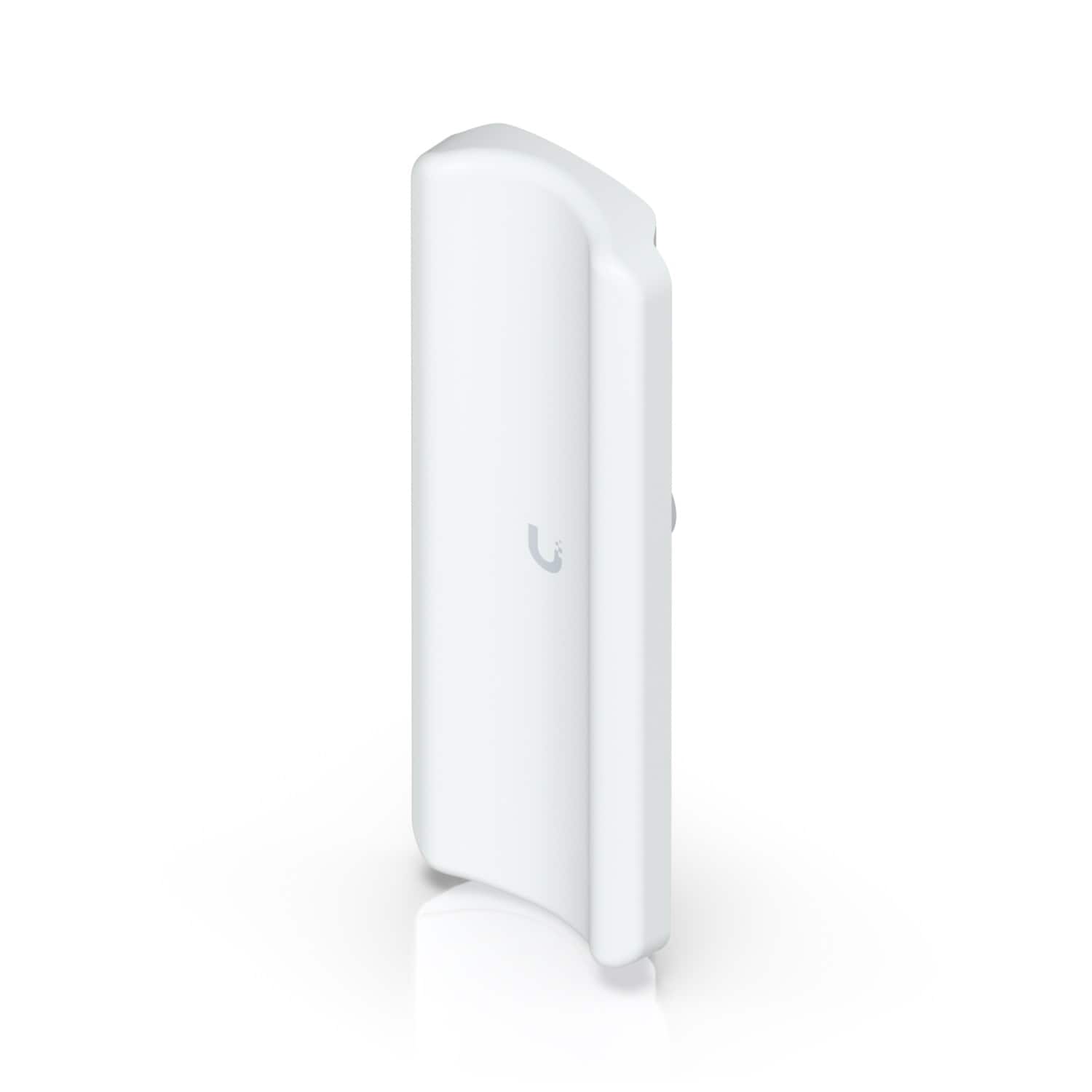

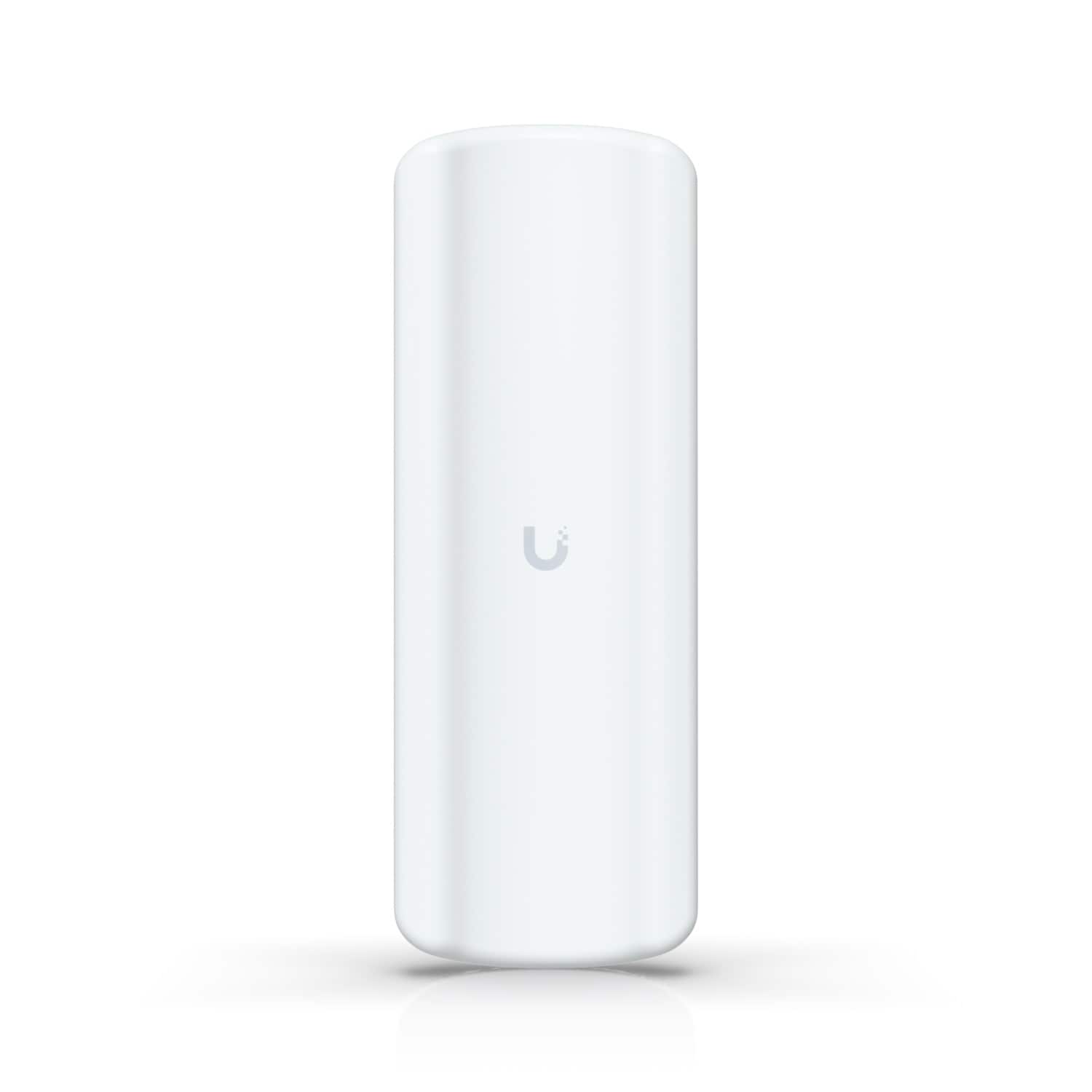

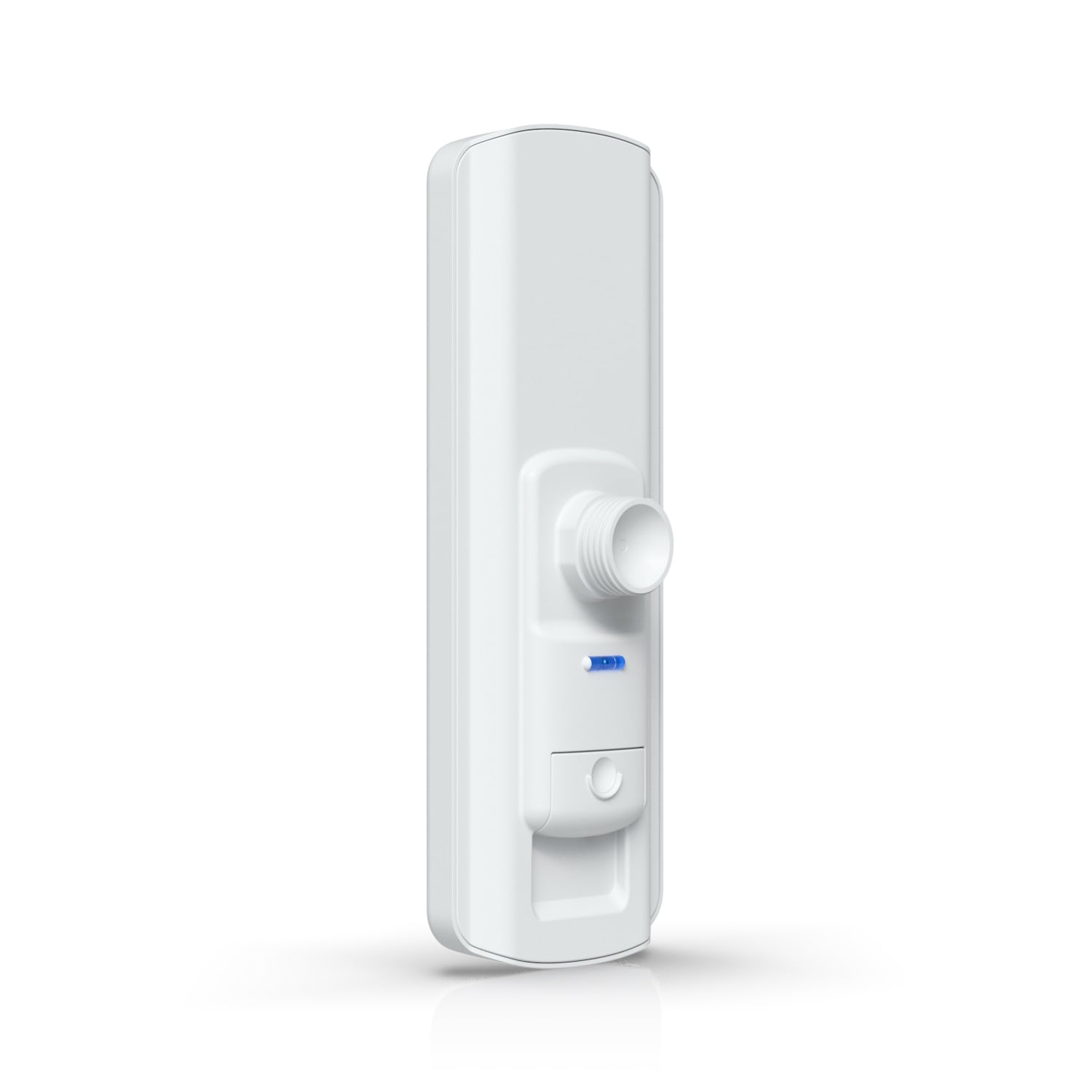

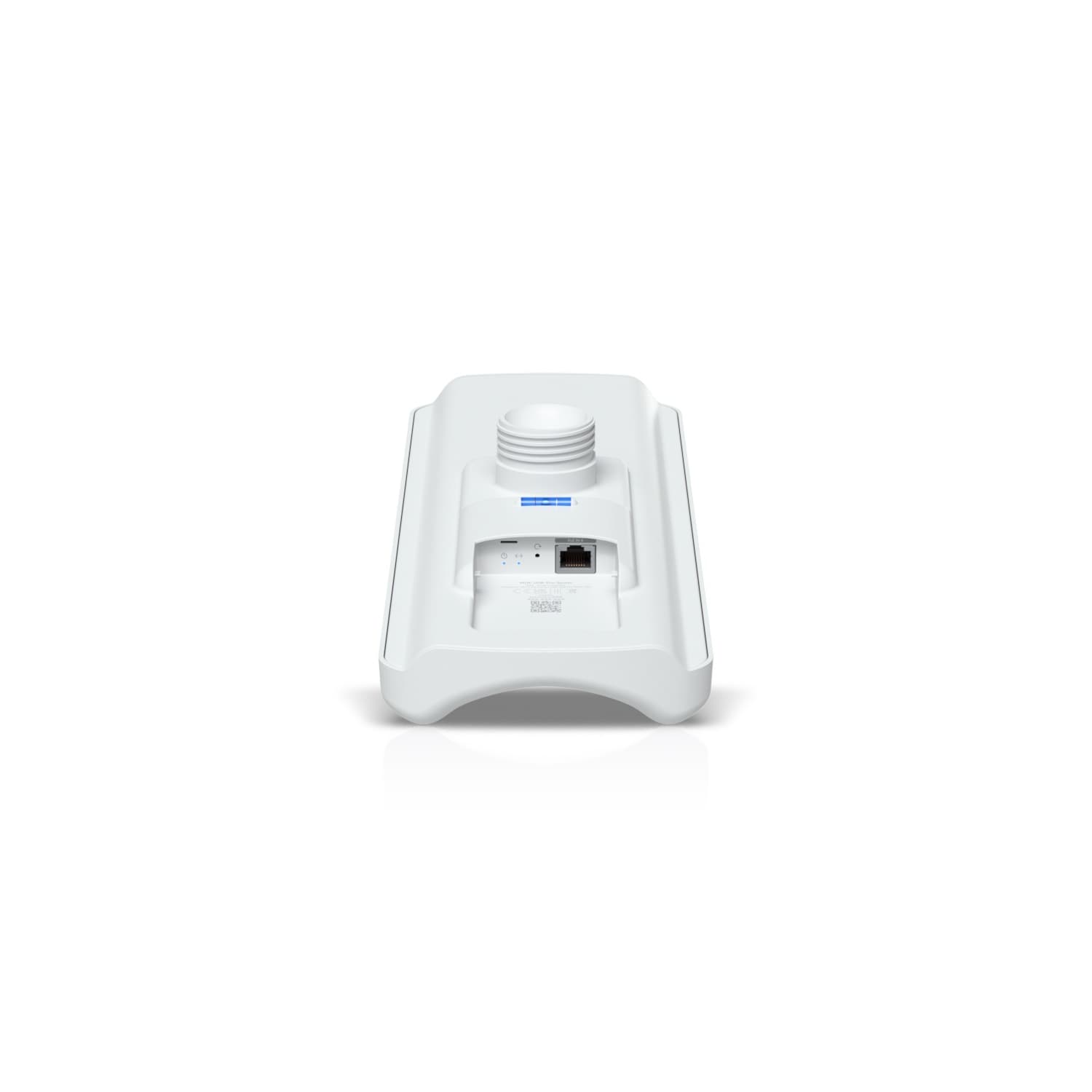

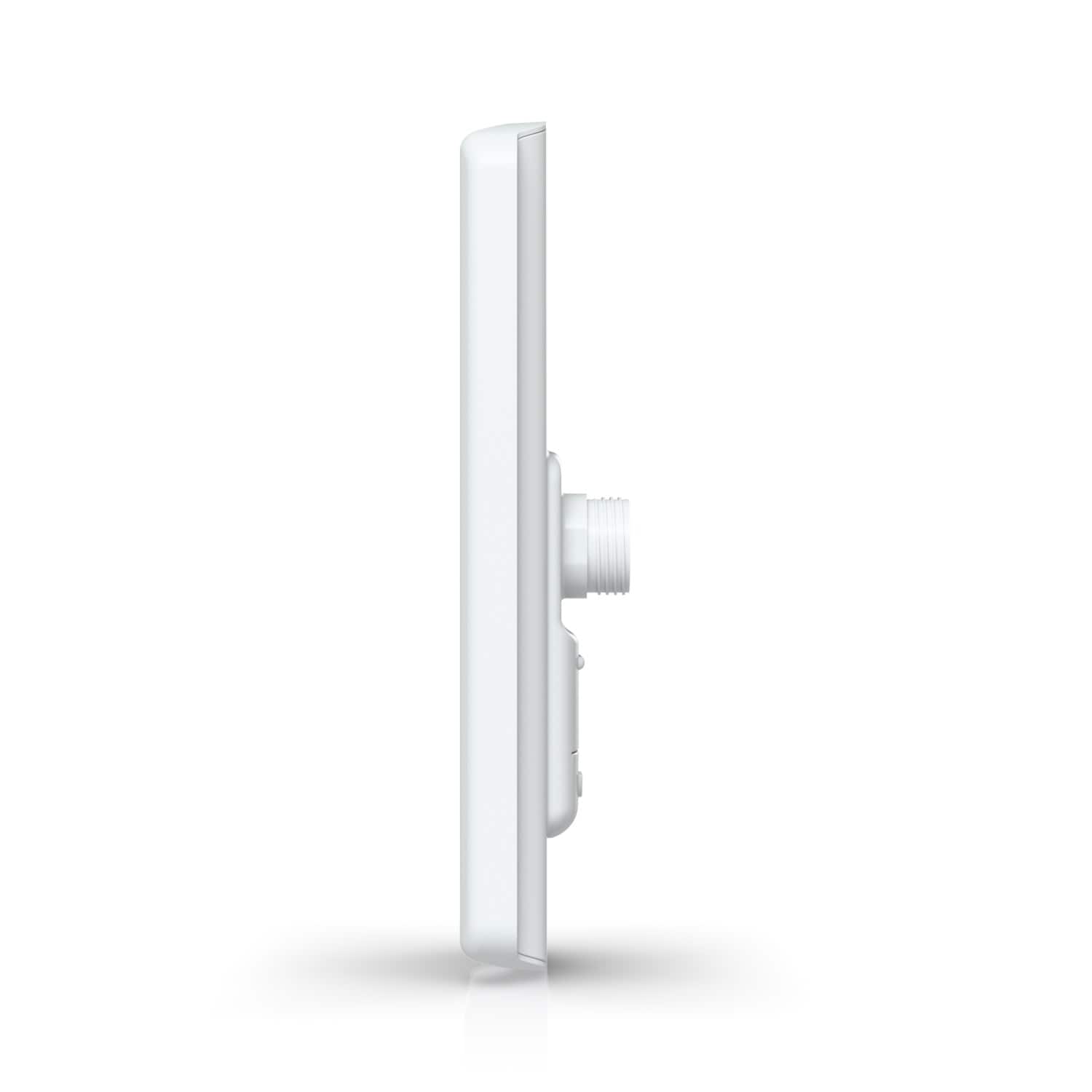

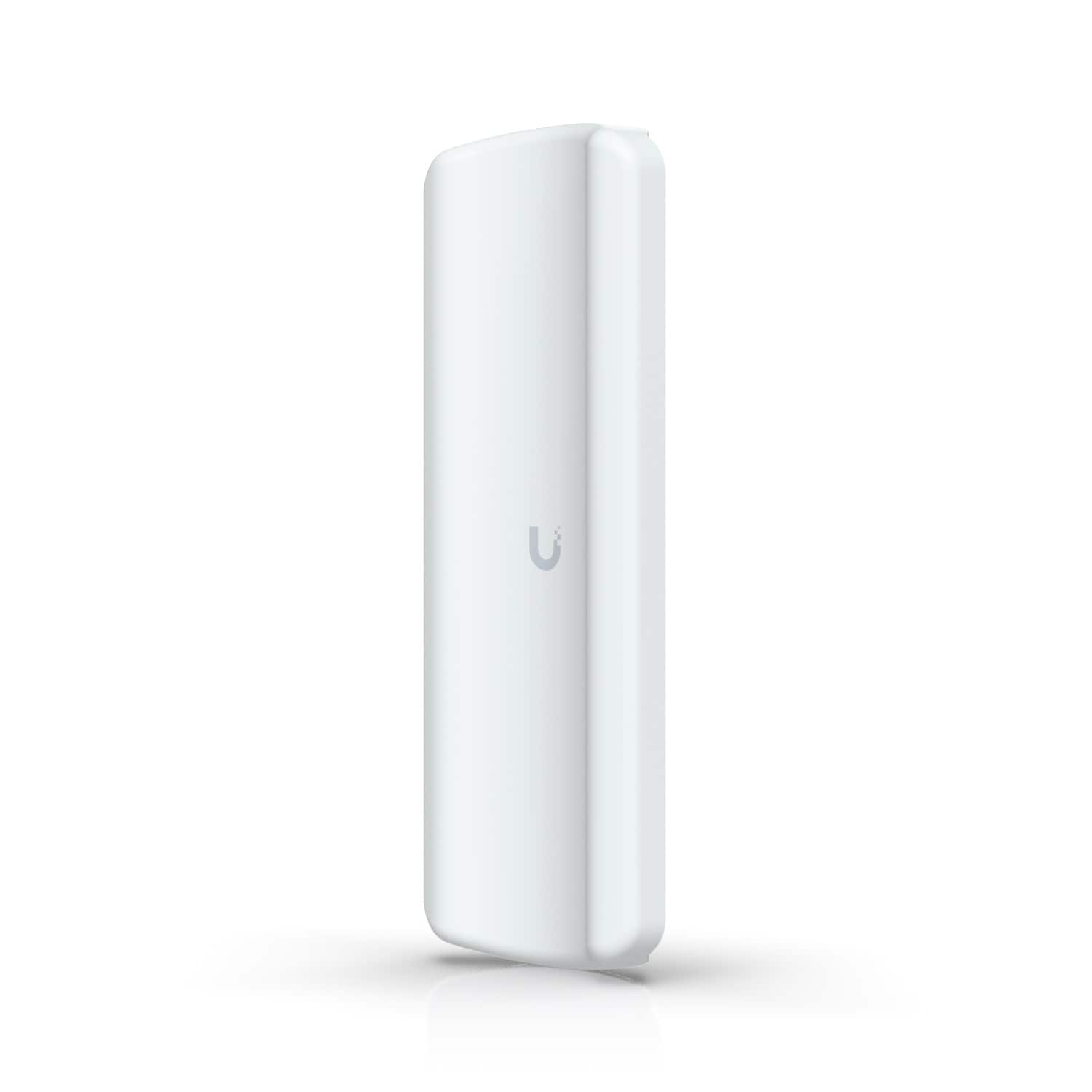

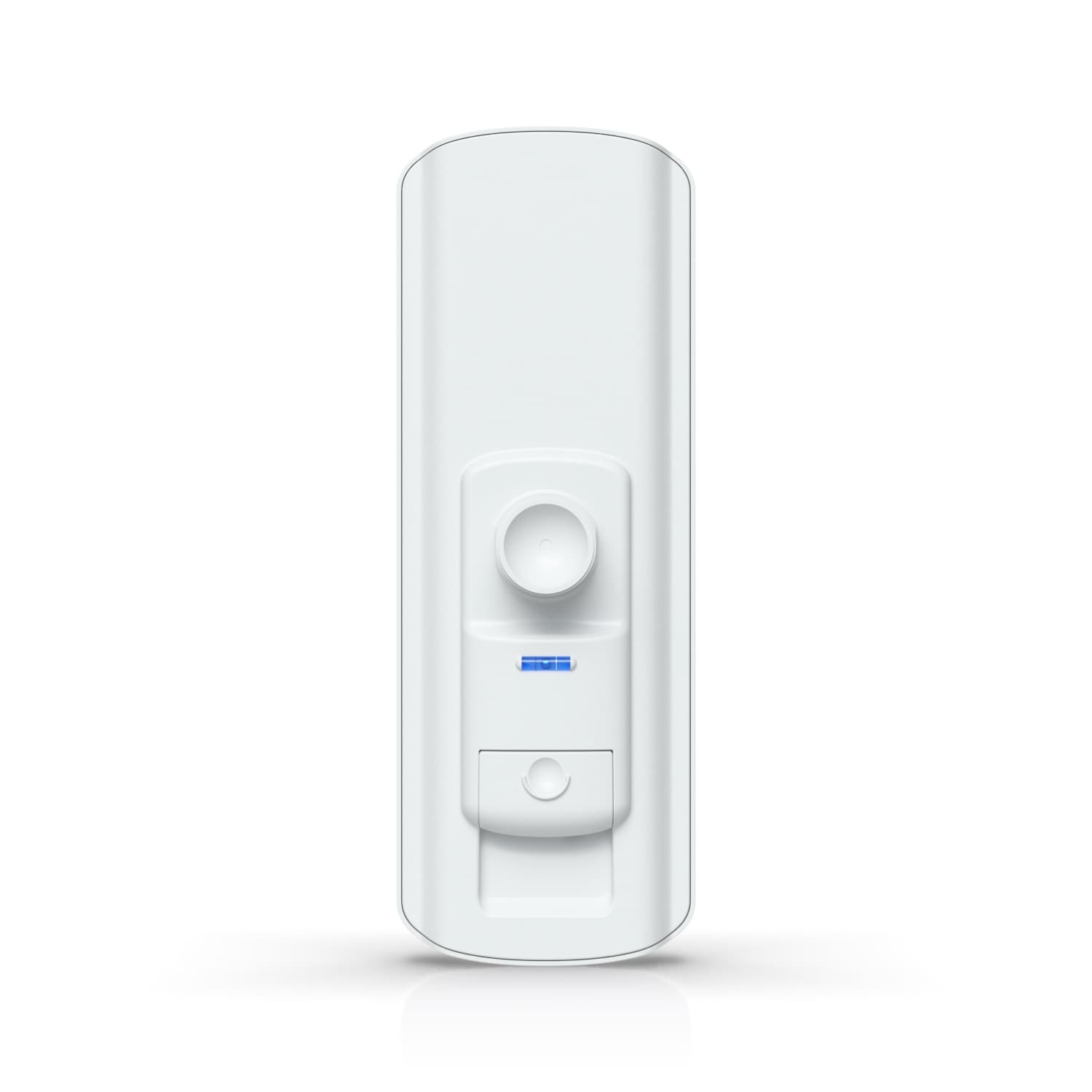

Ubiquiti Networks Device Bridge Pro Sector
- SKU: UDB-Pro-Sector-US
$199.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti 5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
Features:
- Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients
- 90° sector coverage
- Powered using PoE
- Pole mounting
- Weatherproof (outdoor exposed)
Specifications
Specifications UDB-Pro-Sector-US
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| Weight | Without mount: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure material | UV-resistant polycarbonate |
| Mount material | UV-stabilized polycarbonate, stainless steel |
| Pole mount diameter | 0.9—2.4" (24—60 mm) on pipe outer diameter |
| Wind loading | 128.2 N at 200 km/h (28.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 ports |
| Management interface | Ethernet WiFi |
| Power method | PoE |
| Power supply | UniFi PoE switch |
| Supported volatage range | 42.5–57V DC |
| Max. power consumption | 6W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | – 25 dBm – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 400 Mbps (BW40) – |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | – 17 dBi – |
| Antenna | Internal |
| Range | 5+ km |
| LEDs | Power, Ethernet |
| Button | Factory reset |
| Mounting | Pole (Included) |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Supported clients count | 50+ |
Operating frequency US/CA | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20/40 MHz |
| Max. conducted TX power | 25 dBm (Combined) |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚) |
