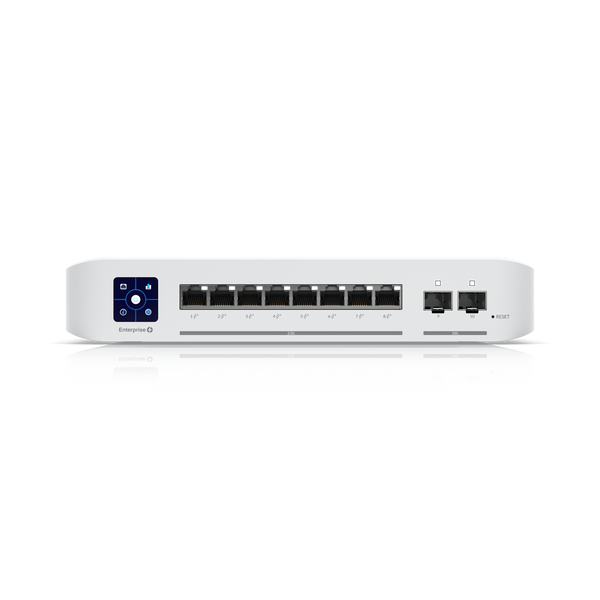

Ubiquiti UniFi 8 port 2.5GbE POE switch with SFP+ uplink
- SKU: USW-Enterprise-8-PoE
$479.00
Product Information
Managed, Layer 3 switch with (8) 2.5GbE, PoE+ RJ45 ports and (2) 10G SFP+ ports.
Specifications
Specifications USW-Enterprise-8-PoE
| Mechanical | |
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.29 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Hardware | |
| Total Non-Blocking Throughput | 40 Gbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Max PoE Power | 120W |
| Power Method | (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (8) 1/2.5 Gbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10 Gbps SFP+ |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3* PoE Gigabit Ethernet Switch * Layer 3 feature will be available in the future firmware release. |
| LCM Display | (1) 1.3" Touchscreen |
| Bootup Animation | Bootup in Progress |
| Firmware Upgrade Icon | Firmware Upgrading |
| Steady White | Factory Defaults, Awaiting Adoption |
| Steady Blue | Device is Adopted |
| ESD/EMP Protection | Air:± 16 kV, Contact:± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | White:Link or Activity |
| SFP+ | White:Link or Activity |
