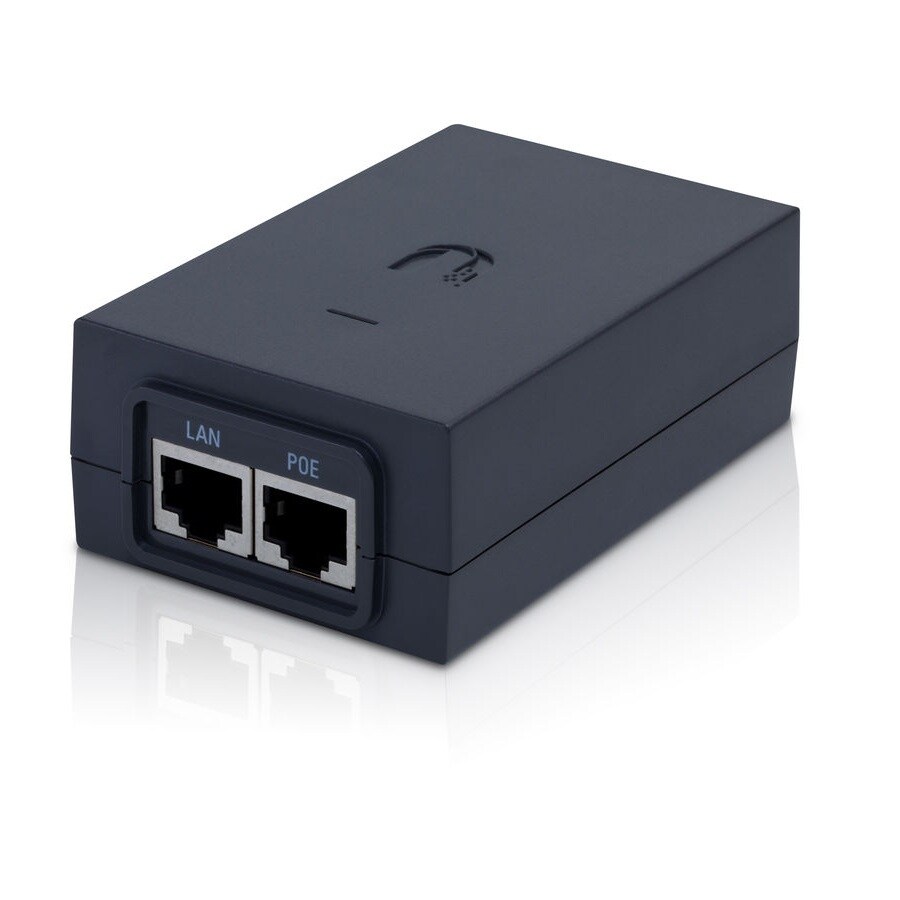

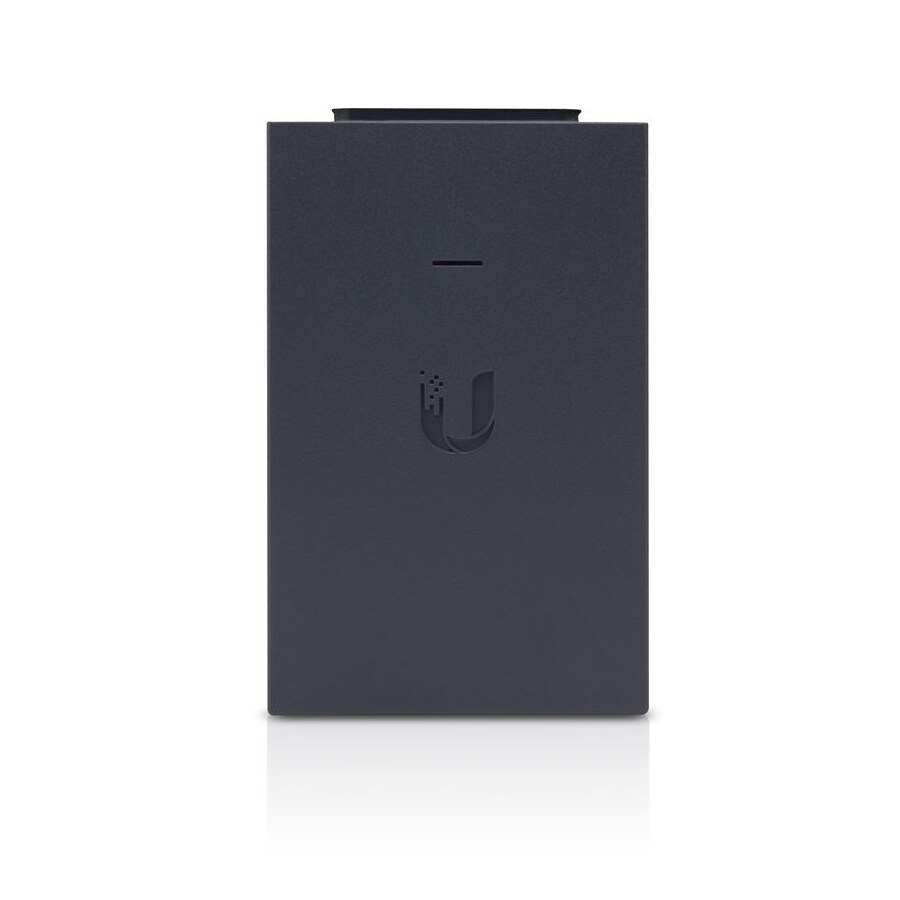

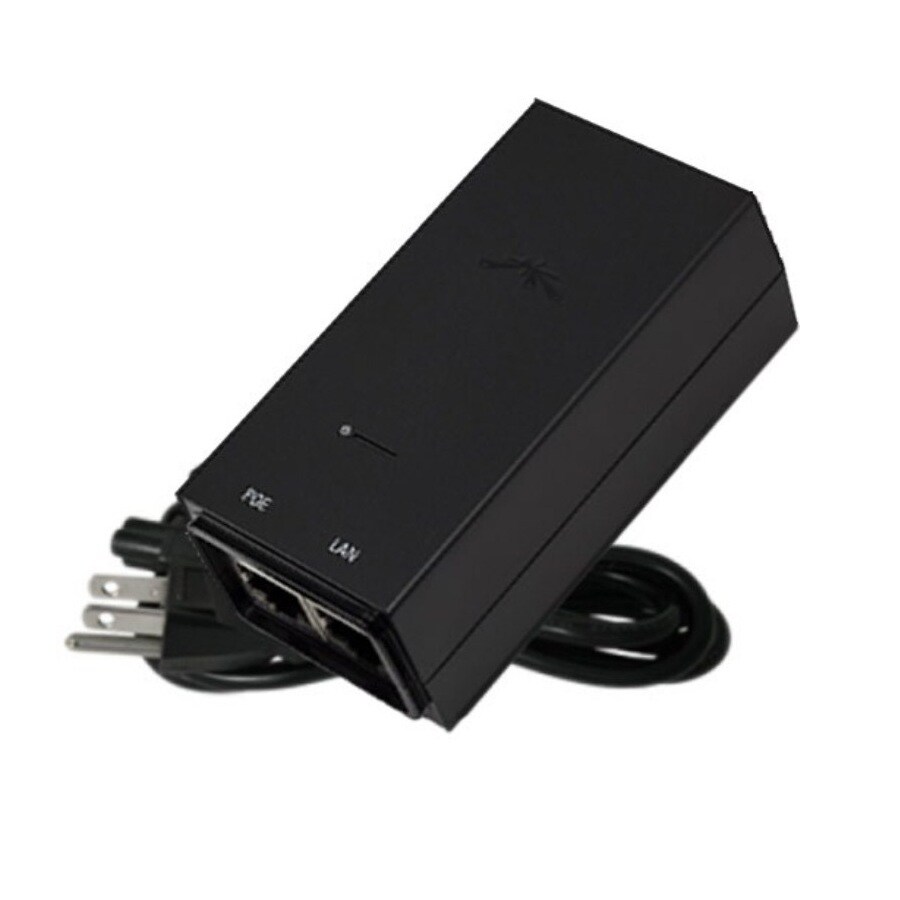

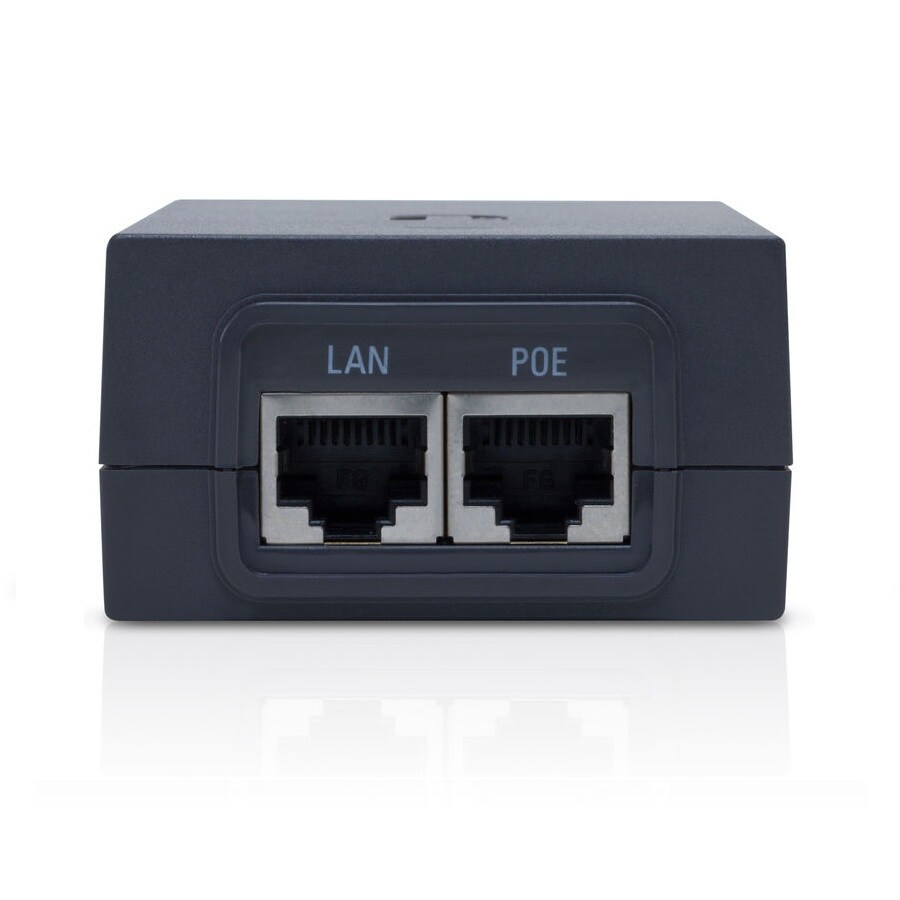

Ubiquiti 24V PoE Adapter for AF-5X
- SKU: POE-24-AF5X
$16.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
PoE Adapter for AF-5X
Specifications
Specifications POE-24-AF5X
| Model | POE-24-AF5X |
| Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30") |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Input Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (- |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20µS) Power |
| Peak Pulse Current | 36A (10/1000µS) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
