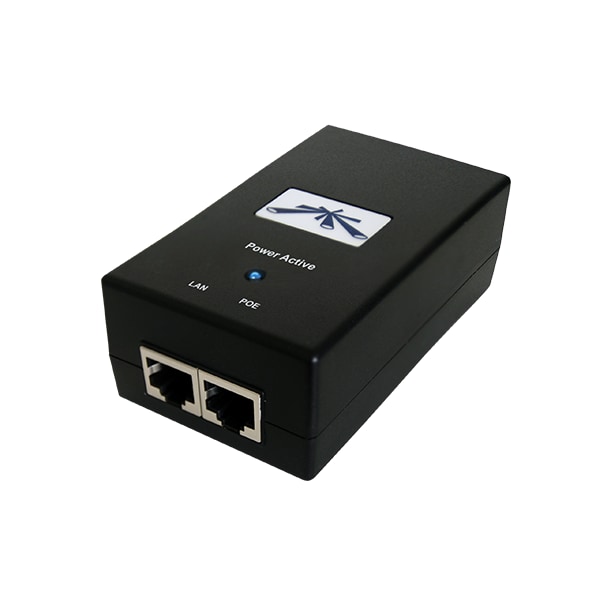

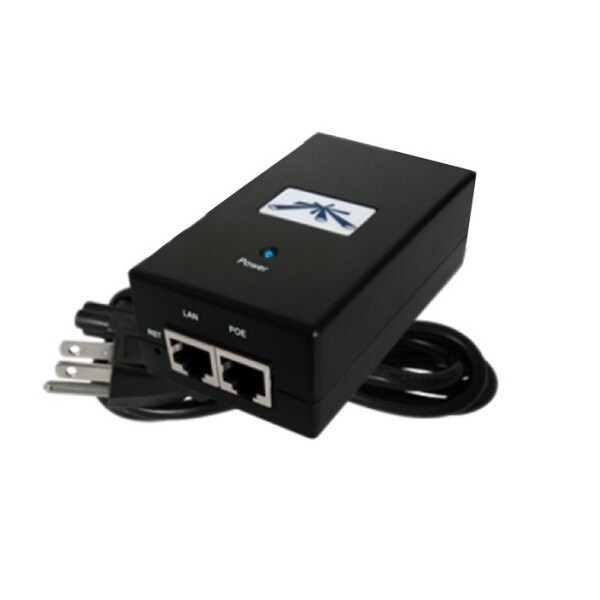

Ubiquiti 48V 24W Gigabit PoE Adapter
- SKU: POE-48-24W-G
$16.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Power Over Ethernet 48VDC at .5A, Gigbit LAN Port
Specifications
Specifications POE-48-24W-G
| Model | POE-48-24W-G |
| Dimensions | 92 x 60 x 33 mm (3.62 x 2.36 x 1.30") |
| Weight | 158.5 g (5.59 oz |
| Output Voltage | 48VDC @0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Input Voltage | 90-260VAC @ 47-63 Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <65A Peak @120VAC, <130A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ± 1% |
| Load Regulation | ± 3% |
| 4-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | <5pf data |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20µS) Power |
| Peak Pulse Current | 36A (10/1000µS) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 nS |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B |
| AC Cable with Earth Ground | USA, EU, AR, BR, UL, CCC, Mexico |
