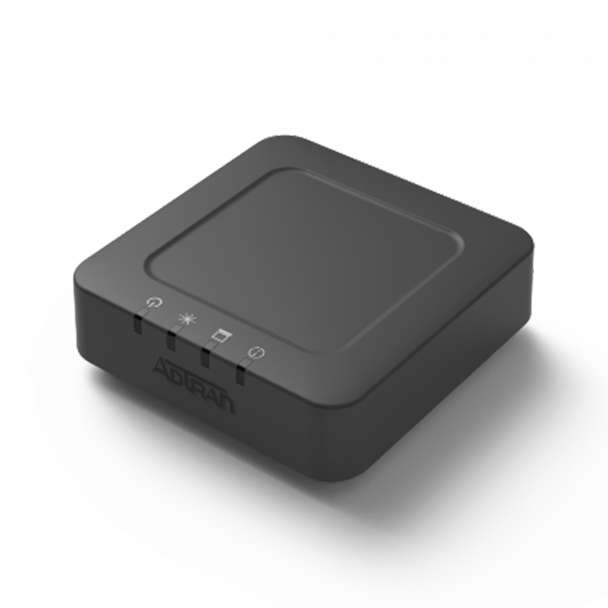

Adtran SDX611 Simple ONT
- SKU: 1287933F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
In a typical indoor ONT deployment, many Ethernet ports are left unused because users migrate to more wireless connections off of a separate residential gateway versus wired Layer 2 connections. The 600 Series of ONTs offers a simpler and more cost effective architecture that enables service providers to reduce the number of devices they deploy and manage. Simple ONTs leverage fewer ports while retaining all of the data and video functionality expected from a carrier-class product.
In addition to a simplified and cost-effective architecture, the 611 Series of ONTs allows service providers to leverage existing residential gateway vendors that they have depended on for years. We have watched the wireless market continuously evolve over the years. There is no end in sight for wireless evolution, and these simple ONTs allows service providers to easily keep up without unnecessarily replacing the ONT or sending a technician to the home.
Product Application- Residential
- Uniquely supports SFU, SBU, and MDU deployments streamlining installation procedures
- Key part of a wireless residential gateway deployment strategy
- Zero-touch service provisioning eliminates truck rolls for service upgrades
- Traffic management through priority queuing, scheduling, policing and traffic shaping
- Adtran SDX611 GPON Simple ONT
Specifications
Specifications 1287933F1
| Ethernet Interfaces | ■ RJ-45 for 10/100/1000Base-T ■ 1 Gbps LAN ■ Ethernet Port Auto Negotiation or Manual Configuration ■ MDI/MDIX Automatically Sense ■ Hardware Priority Queues on the Downstream Direction in Support of CoS |
| Ethernet Services Support | ■ 802.1D Bridging ■ 802.1x Authentication ■ Eight Queues, Strict Priority and/or Weighted Fair Queue Schedulers ■ Configurable to EtherType and TPID for Service Flexibility ■ VLAN IDs 0 – 4095; EVC Configurable in the Range of 2 – 4,094 ■ Virtual Switch Based on 802.1q VLAN ■ VLAN Tagging/Detagging ■ VLAN Stacking (Q-in-Q) and VLAN Translation ■ Class of Service Based on VLAN-ID, 802.1p Bit ■ Marking/Remarking of 802.1p |
| Mosaic Application Support | ■ Mosaic Activate ■ Mosaic Subscriber Insight |
| Working Environment | ■ Temperature: 32° F to 104° F (0° C to +40° C) ■ Relative Humidity: 5% to 95%, Non-condensing |
| Network Interface | ■ GPON optical interface BOSA on Board (BoB) ■ Compliant with ITU-T G.984.2 GPON standards ■ Class B+ optics support |
| OAM | ■ OMCI (Embedded Operations Channel Interface) per ITU-T G.988 and Open OMCI standards ■ 15 min rolling counters ■ Dying gasp alarm |
| LEDS | ■ Power ■ LAN ■ Optical ■ Status |
| Regulatory | ■ ETSI EN 300 019-1-3.cl3.2 (V2.3.2) for ONT and power supply ■ ETSI EN 300 119 for ONT and power supply ■ ETS 300 753 for ONT and power supply ■ CISPR 32 Class B ■ FCC CFR 47 Part 15 Class B |
