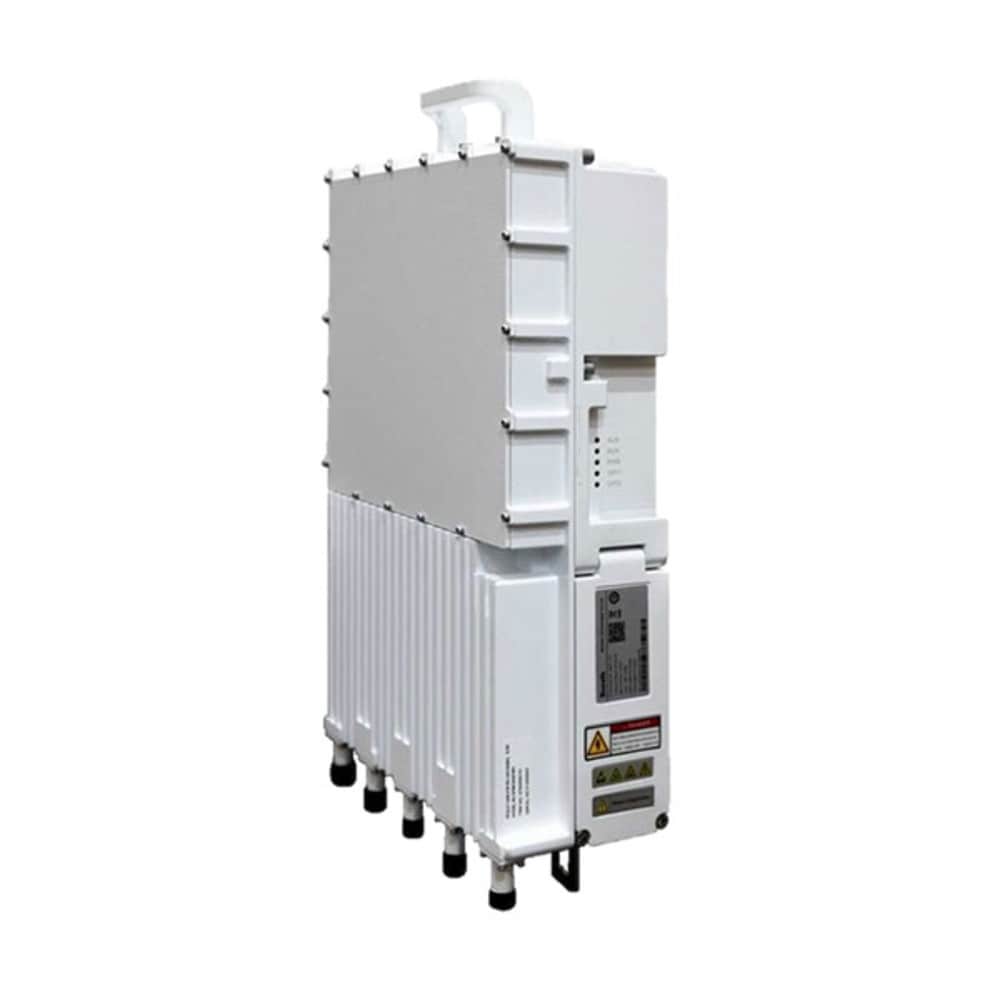

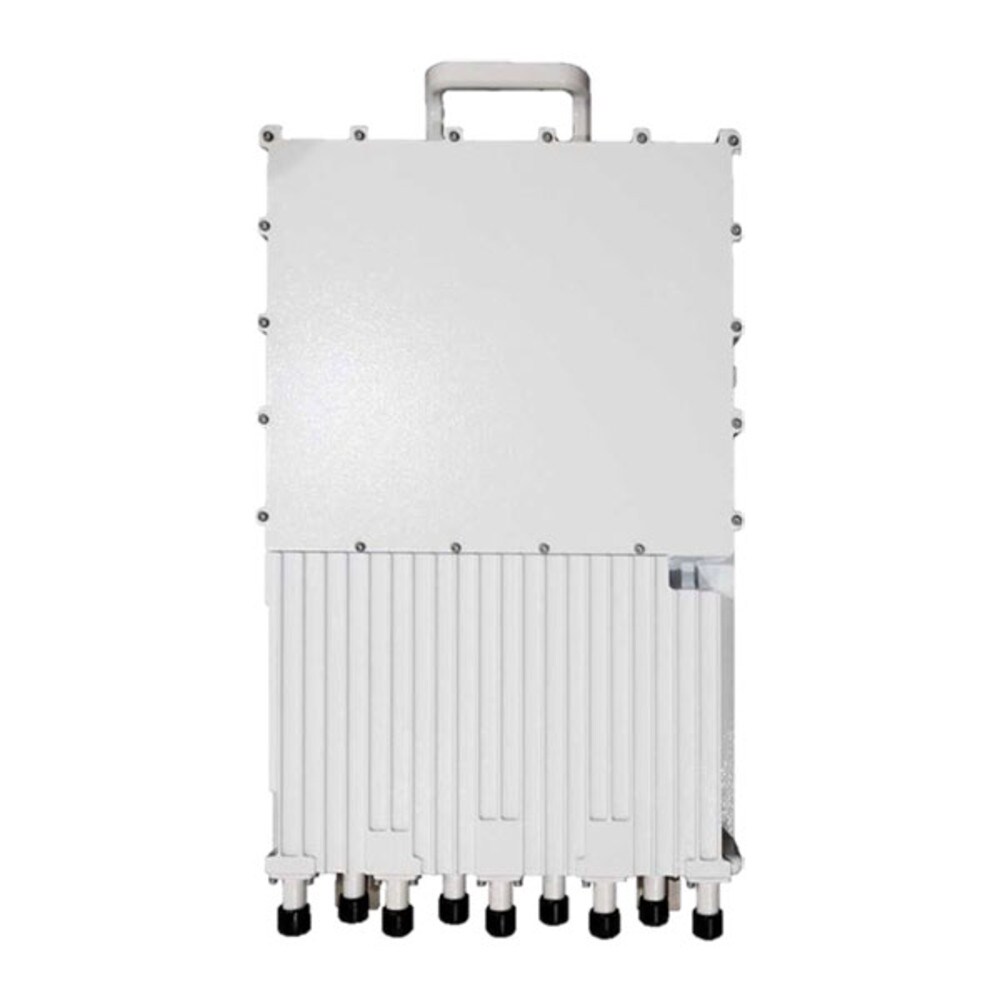

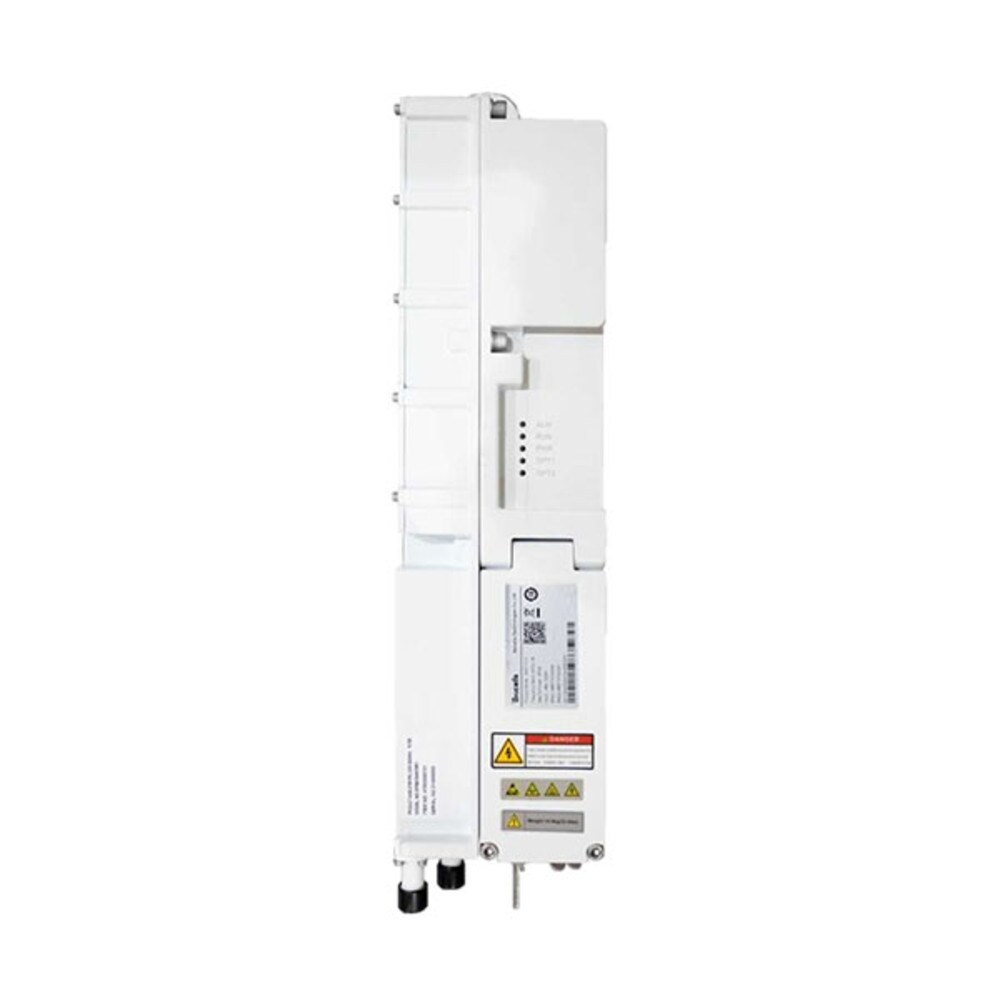

Baicells Nova846N 3.5GHz B48 Outdoor eNodeB
- SKU: sBS71010
Product Information
The Baicells Nova846 is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 8x5W eNB operates in either Carrier Aggregation (CA) or Dual Carrier (DC) modes.
Nova846 supports 2CC (2 2-component carriers) DL/UL CA in CA mode. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.
In DC mode, each carrier is treated as an independent cell, supporting 2x512 users, with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova846 in DC mode simplifies and streamlines the deployment of split sectors.
HaloB (an embedded EPC option) is also available on the Nova846 as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
This product comes with a standard one-year warranty; an extended warranty is available.
Product Features
- GUI-based local and remote Web management
- Excellent Non-Line-of-Sight (NLOS) coverage
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
- Peak rate: Up to DL 580Mbps and UL 70Mbps with 4x4 MIMO CA mode
- Supports 512 RRC-connected users per cell, 2x512 RRC-connected users in DC mode
- Supports up to 2x4T4R cells or 3x2T2R cells*
- Supports downlink of 256 QAM
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with Baicells CloudCore
- HaloB as an embedded EPC solution
- Supports Transparent Bridge Mode
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with standard LTE Evolved Packet Core (EPC)
- Highly secured with equipment certification against potential intrusion risk
- Supports TR-069 network management interface protocol
- Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
Product Includes
- Baicells Nova846
- DC Power Supply
- Power Supply Filter
- OT Terminal
- Power Terminal
- GPS Antenna, Mounting Bracket, and Cable
- 10x Cold Shrink Tubes
- Pole Bracket
- Unit Bracket
Specifications
Specifications sBS71010
| HARDWARE | |
| Air Interface | LTE |
| LTE Mode | TDD |
| Frequency Bands | Band 41, 48 |
| Channel Bandwidth | 5/10/15/20 MHz |
| Carrier Config. | Maximum 2 carriers |
| Max Output Power | 37 dBm / channel x 8 channel |
| MIMO | DL: 4x4 |
| Rx Sensitivity | -102 dBm |
| Synchronization | GPS |
| Data Interface | 1 optical GE or 1 electrical GE or 2 optical GE |
| LED Indicator | 5 x status LED: RUN/ACT/ALM/GE0/GE1 |
| Power Supply | -40.5 to 57 VDC, Nominal -48 VDC |
| Power Consumption | <=200 W |
| Installation | Pole or wall mount |
| Antenna Port Config | 2 x cluster antenna port (4T4R) |
| Antenna | External high-gain antenna |
| Dimensions (HxWxD) | 18.7 x 10 x 4.8 inches 475 x 254 x 123 millimeters |
| Volume | <=14.8 Liters |
| Weight | 17.6 lbs./8 kgs |
| Basic Report Function | RSSI, VSWR, TSSI (transmission signal strength), temperature, etc. |
| Cooling Method | Natural convection cooling @ vertical installation |
| Noise Figure | Room temperature: <2.5, All temperature: <3.5 |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| SOFTWARE | |
| LTE Standard | 3GPP Release 15 |
| User Capacity | 128+128 concurrent users, 256+256 RRC users Future software release 256+256 concurrent users, 512+512 RRC users |
| QoS Control | 3GPP standard QCI |
| Modulation | DL: QPSK, 16 QAM, 64 QAM, and future software release 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Voice | VoLTE, Circuit Switched Fallback (CSFB)* |
| Traffic Offload | Local breakout |
| SON | Self-organizing network: Automatic setup Automatic Neighbor Relation (ANR) PCI confliction detection |
| RAN Sharing | Multi-Operator Core Network (MOCN)* |
| HaloB | Supported |
| Network Mgmt | TR-069 |
| Maintenance | Remote/local maintenance Online status management Performance statistics * Fault management* Local or remote software upgrade Logging Connectivity diagnosis |
| ENVIRONMENTAL | |
| Operating Temperature (ambient) | -40°F to 131°F / -40°C to 55°C |
| Humidity | 2% to 95% |
| Ingress Protection Rating | IP66 |
| Salt Fog/Salt Spray | GR-487 |
| Seismic Specification | Telcordia GR-63-CORE, Section 4.4 Zone 4 |
| Wind Resistance | ETSI300019-1-4 |
| EMC | • ETSI EN 301 489-4 • ETSI EN 301 908-1 |
| sBS71010 | sBS71010 (TDD Outdoor eNB, band 48 (3550 MHz-3700 MHz), 8T8R, 8*5 W, 48 VDC, outdoor, external antenna, 1*RJ45+1*OPT) • FCC certification: TBD • IC certification: TBD |
