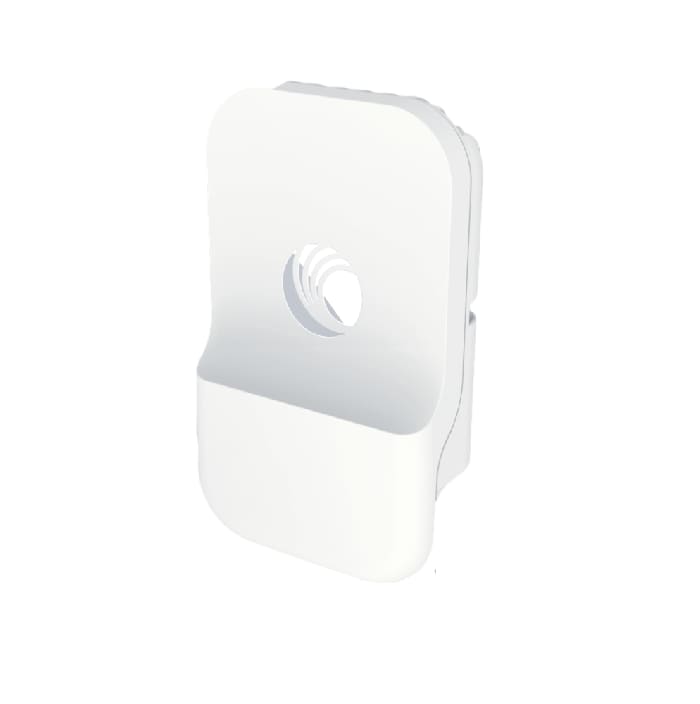

Product Information
Each Bridge-in-a-Box comes with two wireless radio modules and Power over Ethernet (PoE) supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one. The Gigabit modules use the unlicensed 60GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect. The Bridge-in-a-Box 1Gb has a range of up to 150m and up to 2Gbps total throughput.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are People Using Bridge-in-a-Box?- Extending Internet Connectivity
- Connecting Remote Wi-Fi Hotspots
- Remote Camera or CCTV Video Feeds
- Machine Shops / Garages / Storage Sheds
- Docks / Boat Ramps
- Any Remote or Outlying Buildings
- Remote Parking Lots
- Campus Buildings
- Building to Building
- Cabins and Lodges
- Construction Sites
- Temporary Events such as: Concerts, Farmers Markets, etc.
- Athletic Fields and Events
- 802.11ay Wi-Fi standard
- 22.5dBi antenna
- Range: 150m / 500ft
- 57GHz – 66GHz frequency range
- Ethernet interface: (1) 100/1000 BaseT with PoE In
- 2KV surge suppression
- (2) Wireless radio modules
- PoE supplies
Specifications
Specifications C600510C001A
| Weight | 1.8 kg (3.97 lb) |
| Dimension | (7.9in. x 7.9in. x 7.9in.) |
| Operating Frequency | 60 GHz |
| Capacity | Up to 1 Gbps each direction |
| Range | Up to 150 meters (Up to 500 feet) |
| Line of Sight Requirements | Must be able to see end to end |
| Environmental Ruggedization | IP67 |
| Ethernet Por | 1 x 100/1000BaseT |
| PoE Output port | No |
