Product Information
Cambium Networks’ 60GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

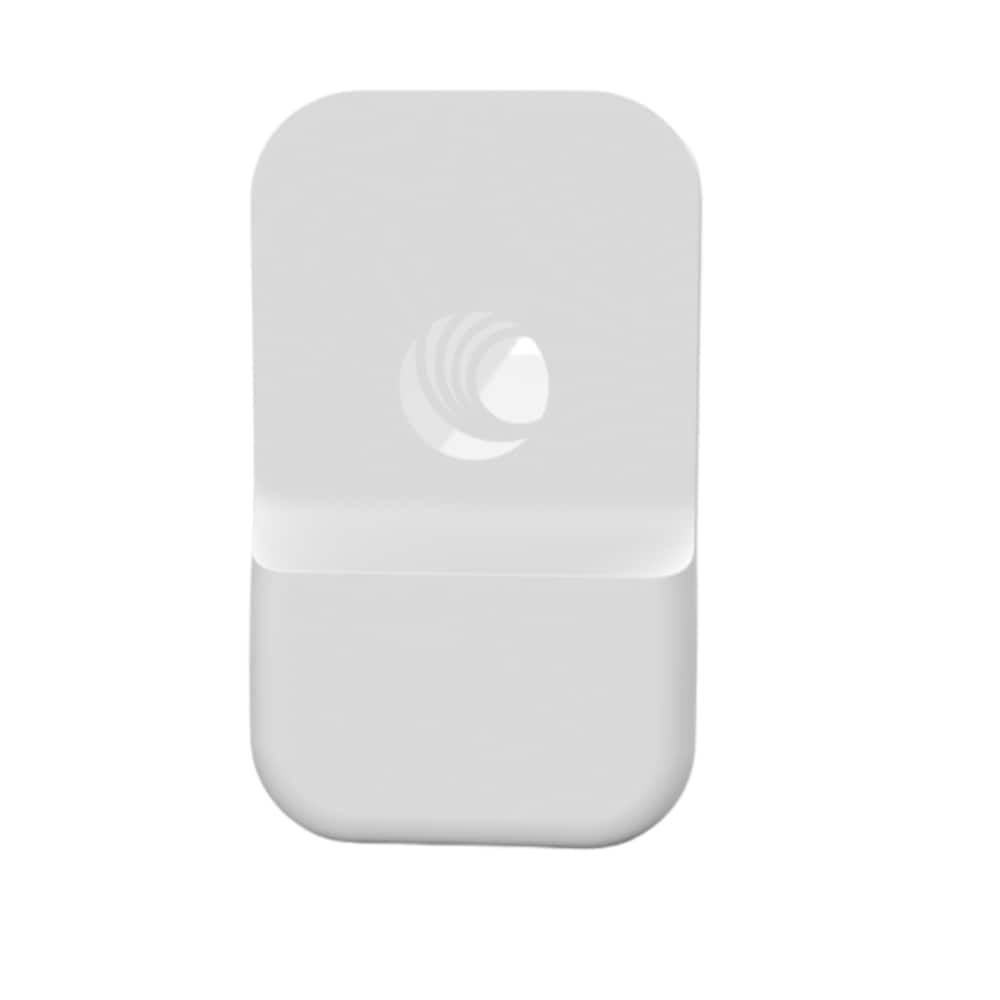

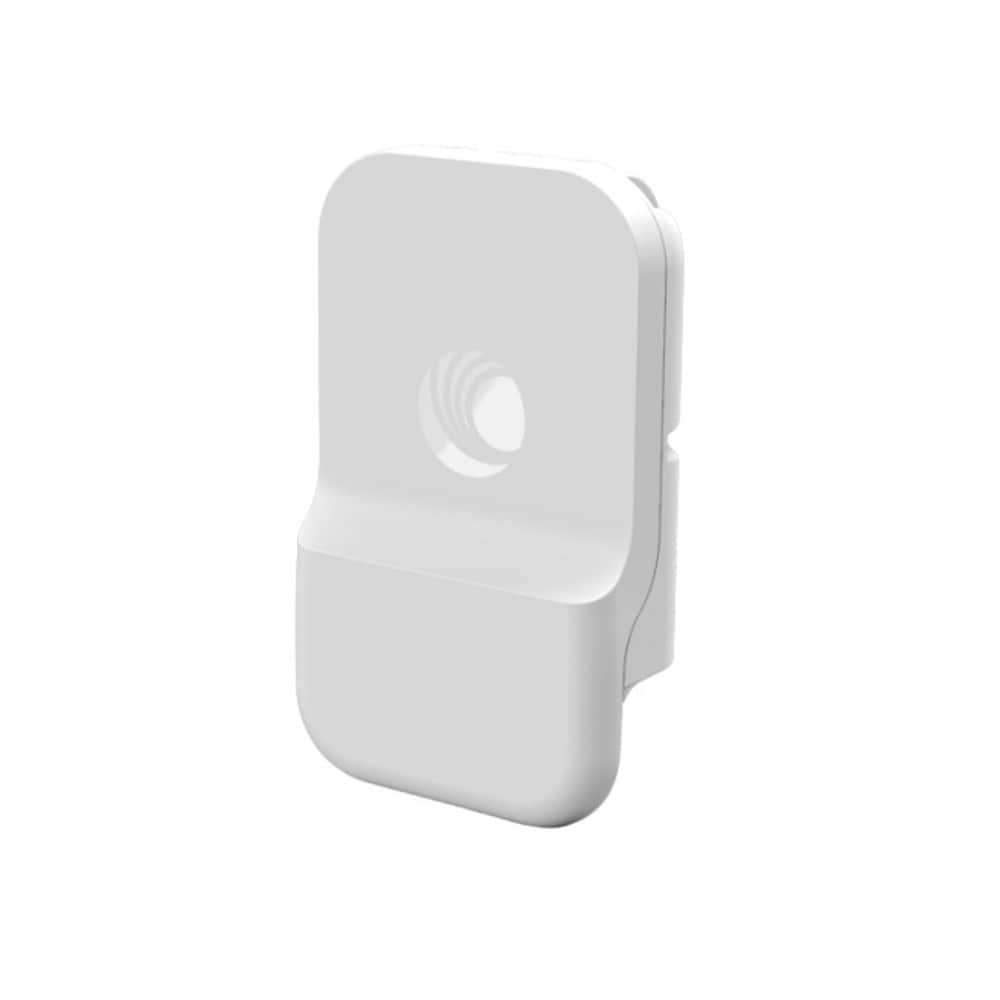

V1000 is featured with wide-range, 80° beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2Gbps with 1Gbps in the uplink direction and 1Gbps in the downlink direction.
Product Features- Auto-beamforming, 80° horizontal and 40° vertical
- Cloud and on-premise management
- Designed for high-speed and high-density deployments
- Frequency Range: 57GHz to 66GHz in a single SKU
- Antenna Gain: 22.5dBi
- Antenna Beam Width: 12°
Specifications
Specifications C600500C001A
| Client Node Model V1000 | |
| Maximum Throughput in DL or UL | 1 Gbps |
| Maximum EIRP | 38 dBm |
| Spectrum | |
| Frequency Range | 57 to 66 GHz in a single SKU |
| Channel Width | 2.16 GHz, 4.32 GHz* |
| Carrier Bonding* | Up to 2 adjacent channels |
| Mode of Operation | PMP or Mesh, PTP |
| Interface | |
| Channel Access | TDMA/TDD |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ |
| Ethernet | |
| Protocol Supported | IPv4, IPv6 |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
| MTU | 4,000 bytes |
| VLAN* | 802.1ad (QinQ), 802.1Q with 802.1p priority |
| QoS* | 4 Level QoS, DSCP and VLAN Tag |
| Security | |
| Encryption | 128-bit AES |
| Firmware Security | Signed Firmware Images |
| Performance | |
| Modulation & Coding Schemes | MCS-0 (BPSK) to MCS-12 (16-QAM) |
| Latency | < 1 ms |
| Maximum EIRP | 38 dBm |
| Antenna | |
| Gain | 22.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | +/- 140º azimuth, +/- 20º elevation |
| Beam Width | 12º |
| Powering | |
| Type | Passive PoE (42-57 V) |
| Power Consumption | 60 W with AUX PoE Out in use, 35 W without AUX PoE Out in use |
| Physical | |
| Environmental | IP66/67 |
| Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
| Mean Time Between Failure | > 40 years |
| Weight | 0.25 kg (0.55 lbs) |
| Dimensions W x H x D | 15 cm x 10 cm x 25 cm |
| Wind Survival | 200 km/h (124 mi/h) |
