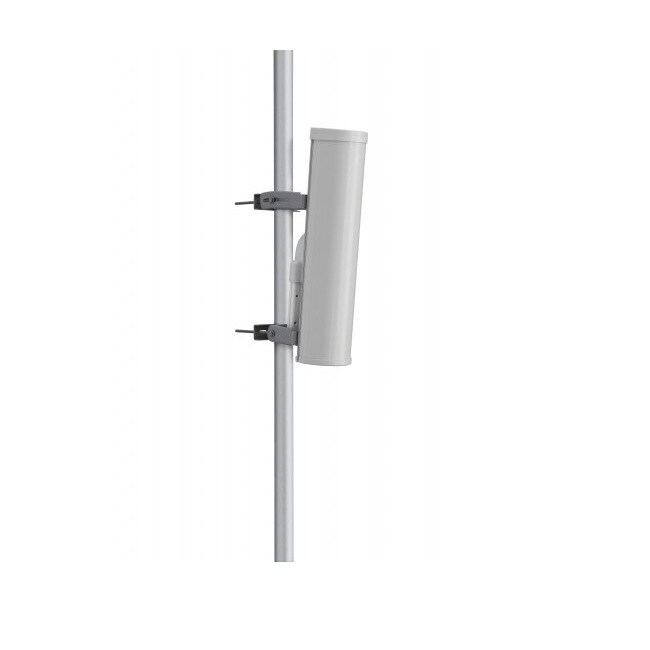

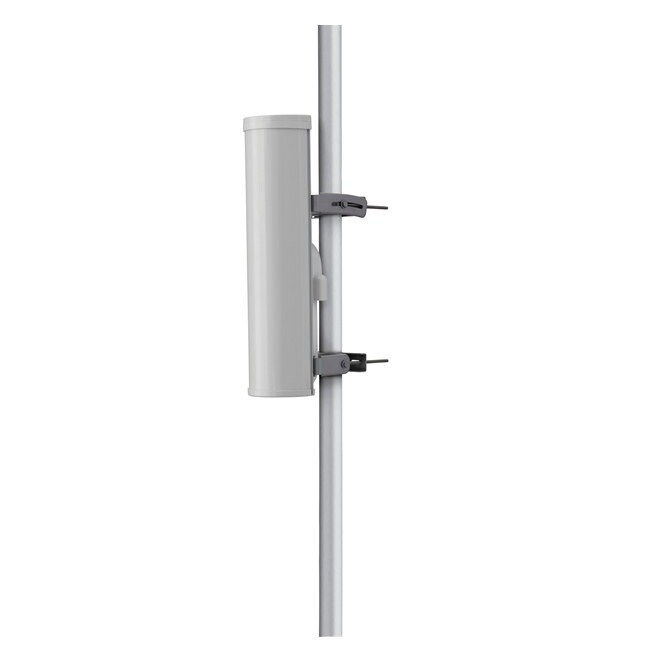

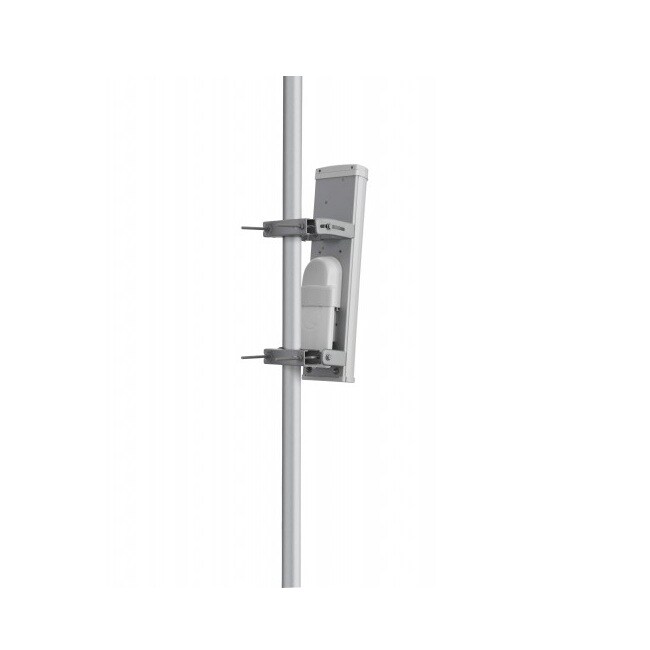

Cambium Networks ePMP 2000 5GHz 90/120deg Sector Antenna With Mounting Kit

ISP Supplies supplies the Cambium Networks ePMP 2000 5 GHz sector antenna with both a 90 and 120 degree beamwidth, which includes a mounting kit. Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point to multi-point (PMP) distribution access networks. Wireless Service Providers deploying networks in 5GHz spectrum will find this sector antenna for 90° and 120° applications especially well-suited for high-density networks requiring frequency re-use and wide-band spectrum coverage. Product Features: • Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear facing direction • Channel Flexibility: consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance • Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector • Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration • Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth

Product Specifications: • Gain: 18dBi • Frequency Range: 4.9GHz to 5.97GHz • 35 dB front to back ratio • IP 65 ruggedization
