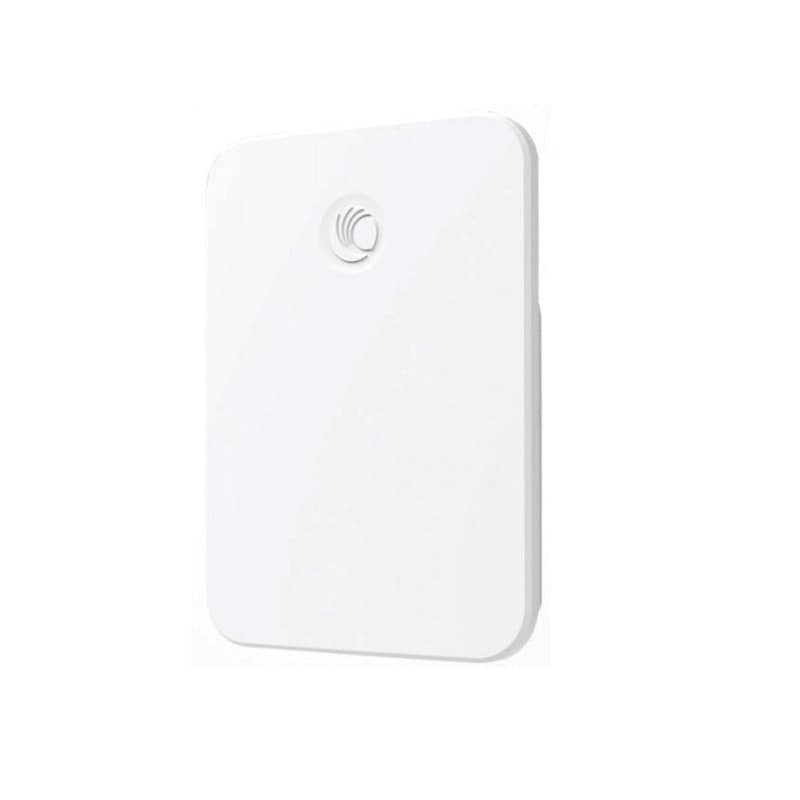

Cambium Networks ePMP 5GHz MP 3000 MicroPOP Radio (FCC)
- SKU: C058910A132A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks ePMP 5 GHz MP 3000 MicroPOP radio (FCC). US power cord only.
The MicroPOP MP 3000 is based on 802.11ac Wave 2 technology and can interoperate with any combination of up to 64 of the ePMP Force 300 series of subscriber modules (including Force 300-13, -13L, -16, -19, -19R and -25) as well as the Force 180/190/200 with backwards compatibility. Capacities of up to 600 Mbps are achievable with a range typically of one mile or 1.5 kilometers. The MP 3000 features an integrated omni antenna in a ruggedized IP67 enclosure.
Key Features:
•2X2 MIMO support with peak throughput of 600 Mbps
•256QAM-5/6, 80 MHz support
•Supports a wide frequency range: 4910 to 5950 MHz
•Supports up to 64 subscriber modules
•Integrated 9 dBi Dual-Polarity Omni-directional antenna
•Cloud or on-premises network management with cnMaestro
MicroPOP Applications:
•Extend Coverage Areas: deploy the MP 3000 in places unreachable by the main tower or to add adjacent coverage for new subscribers with lower overall density
•Inject New Capacity: deploy the MP 3000 to a set of customers demanding especially high-capacity services
•Backhaul for Outdoor Wi-Fi Access Points: deploy the MP 3000 and ePMP subscriber modules to create a hub-and spoke backhaul for multiple wi-fi access points.
NOTE: the MP 3000 does not support GPS synchronization and does not have an integrated real-time spectrum analyzer.
Specifications
Specifications C058910A132A
| SPECTRUM | |
| Channel | Spacing Configurable on 5 MHz increments |
| Frequency Range | 5150 - 5875 MHz |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2X2 MIMO/OFDM |
| Ethernet Interfaced | 100/1000BaseT, rate auto negotiated |
| Powering Methods Supported | 802.3af or 802.3at Powered Device; 56VDC Passive PoE Injector (included) |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPS, STP, SSH, IGMP Snooping |
| Network Management | HTTPS, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS 9 (256 QAM 5/6) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, |
| LINK BUDGET | |
| Antenna | Integrated dual-polarity 9 dBi omni-directional antenna |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| PHYSICAL | |
| Surge Suppression | 1 Joule Integrated. C000000L033A 56v Gigabit surge suppressor recommended for optimal surge protection. |
| Environmental | IP67 |
| Temperature | -40F to +149F (-40C to +65C) |
| Power Consumption | 13 Watts (Up to 15 Watts in extreme cold temperatures when heater is activated.) |
| Input Voltage | 56 Volts Nominal (input range 41 to 59V) |
| Weight | .98 kg (2.15 lbs.) without bracket |
| Dimensions | 73 x 289 x 210 mm (2.9 x 11.4 x 8.3 inches) without brackets |
| SECURITY | |
| Encryption | 128 bit AES (CCMP mode) |
| CERTIFICATIONS | |
| FCCID | Z8H89FT0051 |
| INDUSTRY CANADA | 109W-0051 |
