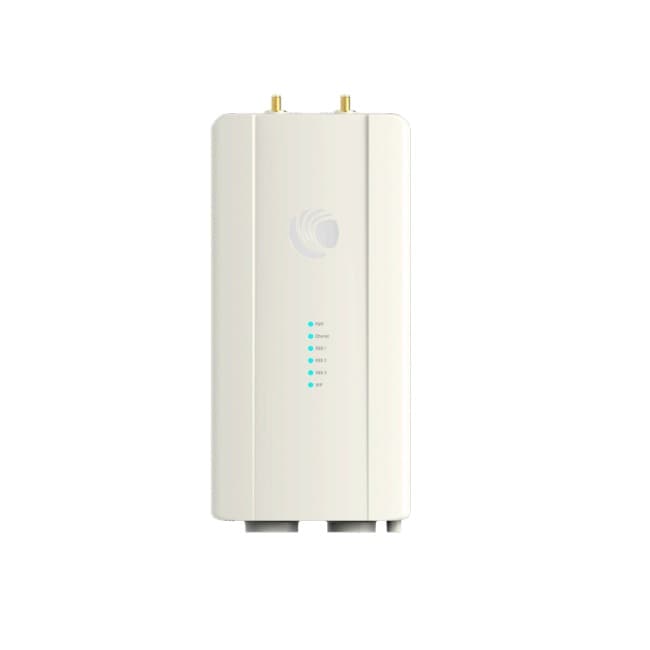

Cambium Networks ePMP 5GHz Force 400C (FCC)
- SKU: C058940C122A
$614.70
+ $26.03 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks introduces the ePMP Force 400C point to point solutions delivering up to 1Gbps throughput at a breakthrough price point based on the latest 802.11ax standards.
The Force 400 Series is the ideal solution for service providers looking to deliver high capacity access services to Enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOP’s and outdoor Wi-Fi access points that require lots of capacity at moderate range without the overhead of licensed microwave.
Product Features- Industry first Point-to-Point solution based on 802.11ax delivering up to 1Gbps capacity
- High-Capacity Enterprise Access
- Connectorized with (2) RP-SMA RF interfaces for use with larger parabolic dishes or horn antennas
- Power Consumption: 28W
- Input Voltage: 802.3at or Passive PoE 44V - 59V
- Weight: 1.3kg (2.9lbs)
Specifications
Specifications C058940C122A
| Channel Width MHz | 20 | 40 | 80 |
| Proprietary Physical Layer | 802.11ax, 2x2 MIMO/OFDM |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 - 6135 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules Protocols |
| Used | IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Maximum Capacity | 1 Gbps |
| Latency | < 5 ms |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Connectors | 1 x RJ-45, 1 x SFP, 2 x RP-SMA |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 65°C (-22°F to 149°F) |
| Weight | 1.3 kg (2.9 lbs.) |
| Wind Survival | 200 km/hour (124 mph) |
| Dimensions(H x W x D) | 256 mm x 125 mm x 46 mm (10.1 in x 4.9 in. x 1.8 in.) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 28 W |
| Input Voltage | 802.3at or Passive PoE 44-59 V |
| Security | |
| Encryption | 128-bit Over-the-Air Encryption (256-bit AES where export rules allow - ROADMAP Feature) |
| Certifications | |
| FCC Regulatory Part Number | C058940P122A |
| FCC ID** | Z8H89FT0062 |
| ETSI/ROW Regulatory Part Number | C050940P021A |
| Industry Canada Cert** | 109W-0062 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
