Product Information

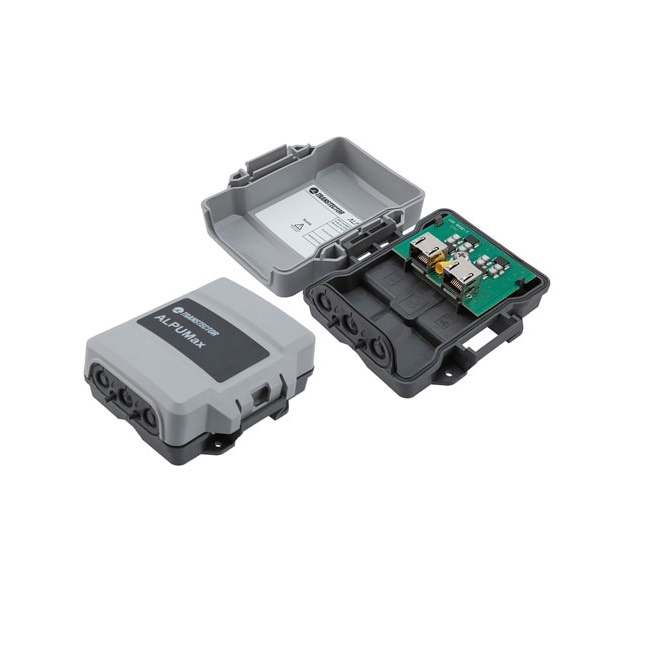

The Transtector ALPU-M150 is an outdoor data surge protector, also known as an SPD or lightening protector that utilizes state-of-the-art SASD/GDT technology to protect critical equipment in Gigabit Ethernet/PoE++ protocol data networks while remaining transparent to data throughput.
This surge protector provides adequate protection against electrical transient surges that are generated both by external lightening events and by internal switching events and supports long-term systems reliability by absorbing high amounts of quick energy while maintaining a very low clamping voltage. Transtector Data Signal surge protectors are available in stock with same-day shipping.
Product Features:- 10 Gigabit Ethernet/PoE++
- Patented Weatherized Wiring Grommet
- Configurable Weep Holes
- Shielded RJ-45
- Conformal Coated PCBA
- Dielectric Lube to Weatherize RJ-45 Connections
- Pole or Wall Mount
- 10 Gigabit Ethernet/PoE++ Networks
- Telecommunications Base Stations
- WISP/ISP
- IT and Data Centers
- Point-to-Point Links
- Control Lines and Sense Loops
- Oil and Gas
Specifications
Specifications ALPU-M150
| Weight | 0.5 lbs |
| Dimensions (L x W x H) | 1.7" x 4" x 4.5" |
| Connectors | Shielded RJ45 |
| Compatible Cables | Cat 6/6A STP, Cat 7 STP |
| Data Protocols | 10 Gigabit Ethernet PoE++ |
| Data Rate | 10,000 Mb/s |
| Characteristic Impedance | 100 Ohms |
| Power over Ethernet Protocols | PoE++ |
| Vdc Rating (Data) | 48 60 Vdc |
| PoE Power | 100 W |
| PoE Current Per Pin | 1.5 A |
| Surge Protection Technology | SASD |
| Protected Pins | [1,2], [3,6], [4,5], [7,8] |
| Protection Modes | L-G, L-L |
| 8/20µs Surge Current | |
| L-G L-L | 1 kA 0.5 kA |
| Response Time 5 ns | 5 ns |
| Operating Temperature | -40 to +65 deg C |
| Storage Temperature | -40 to +75 deg C |
| Environmental Protection Rating | IP65, NEMA 3R |
| Mount Type | Pole/Wall |
| Installation Hardware | Combination Drive Screw |
| Grounding | #10 - #12 AWG Ring Terminal |
