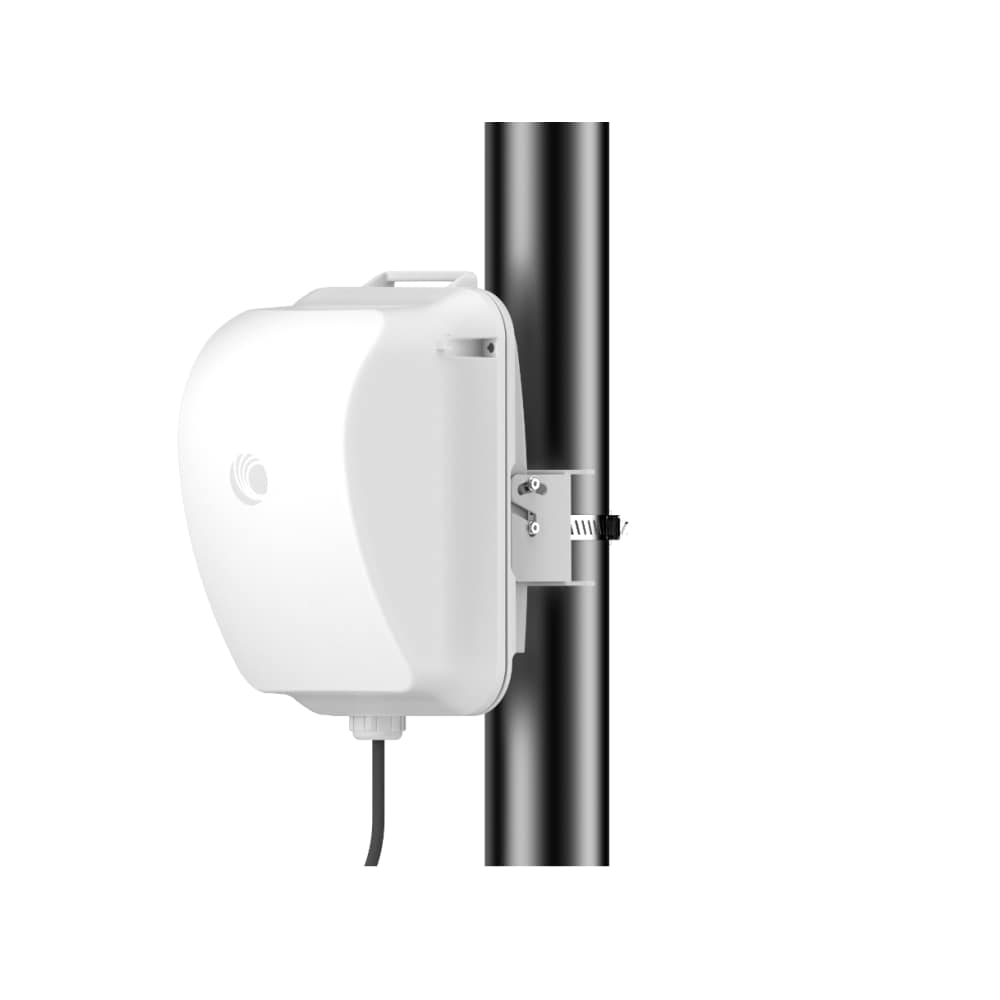

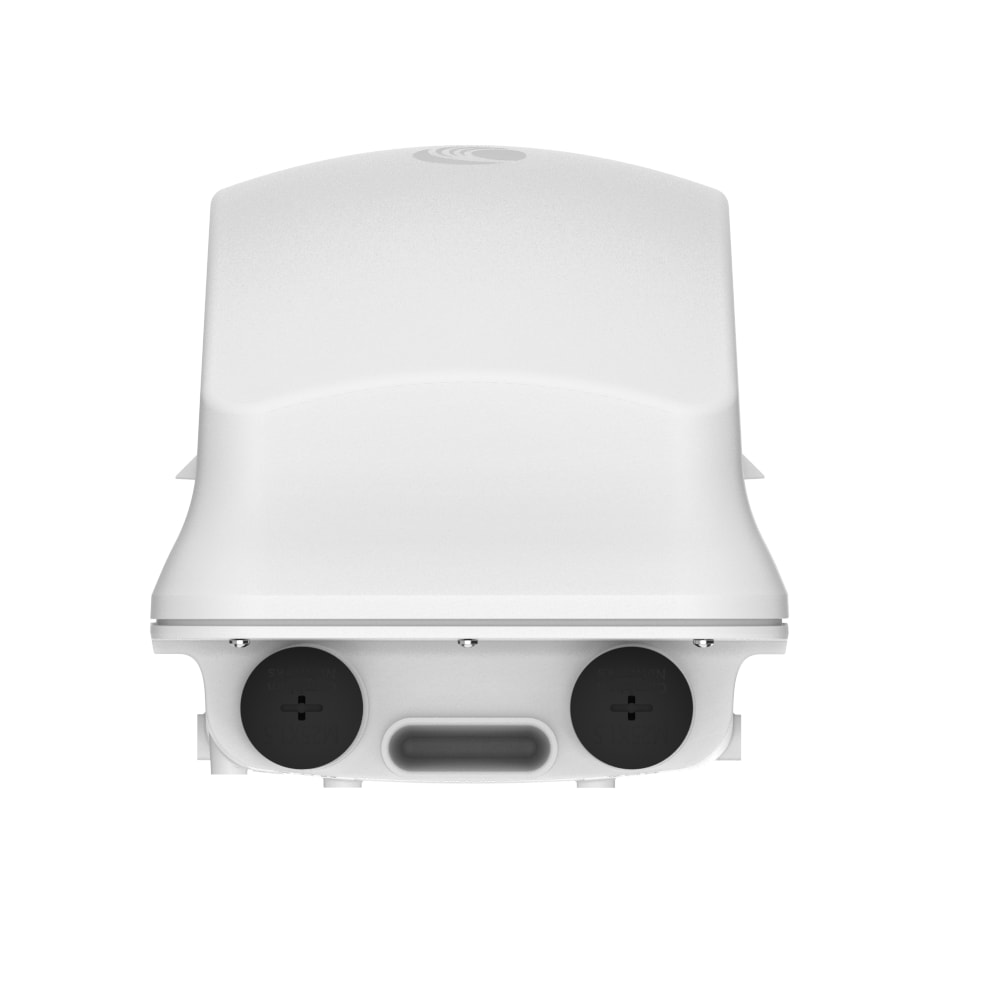

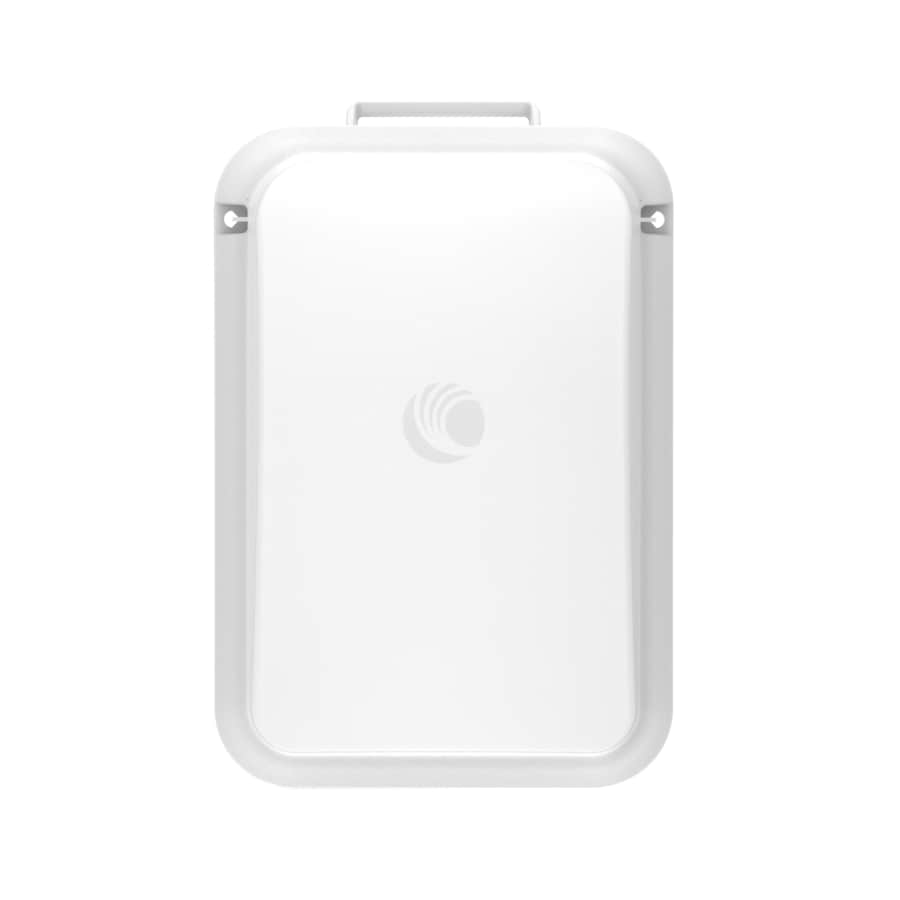

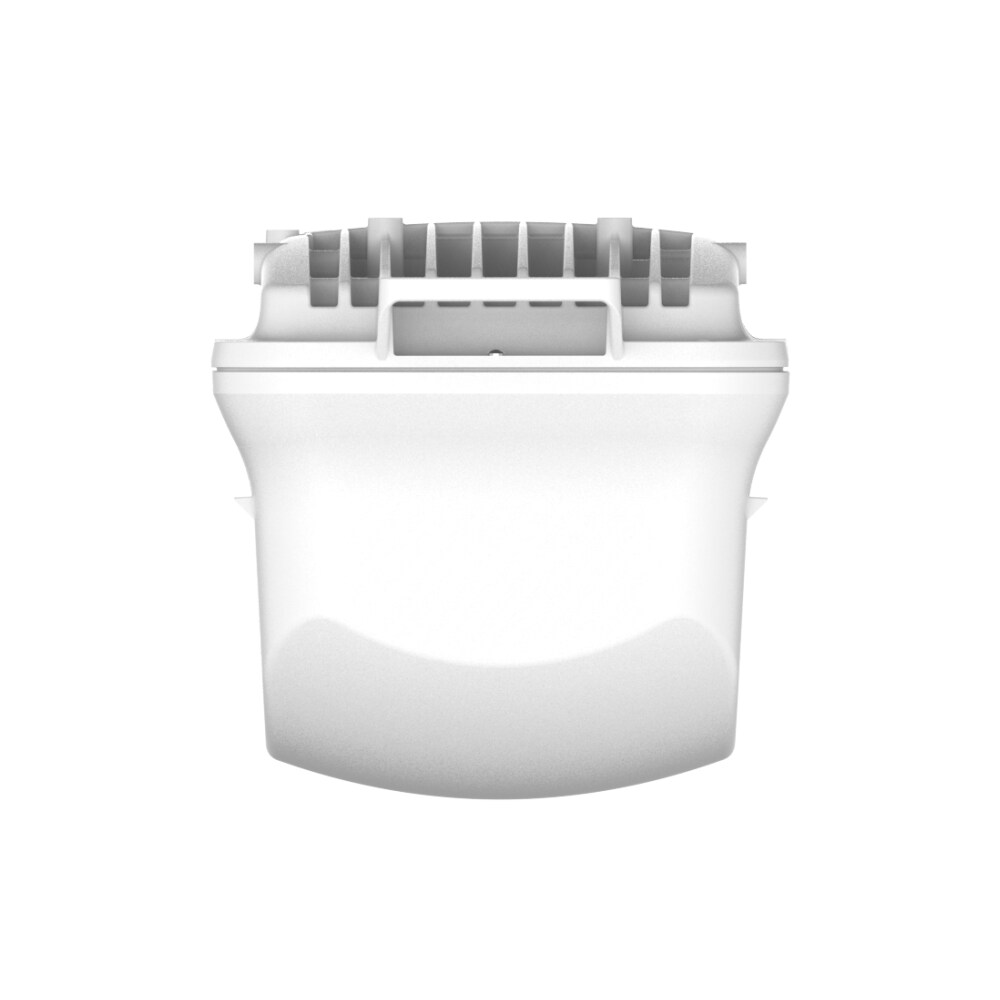

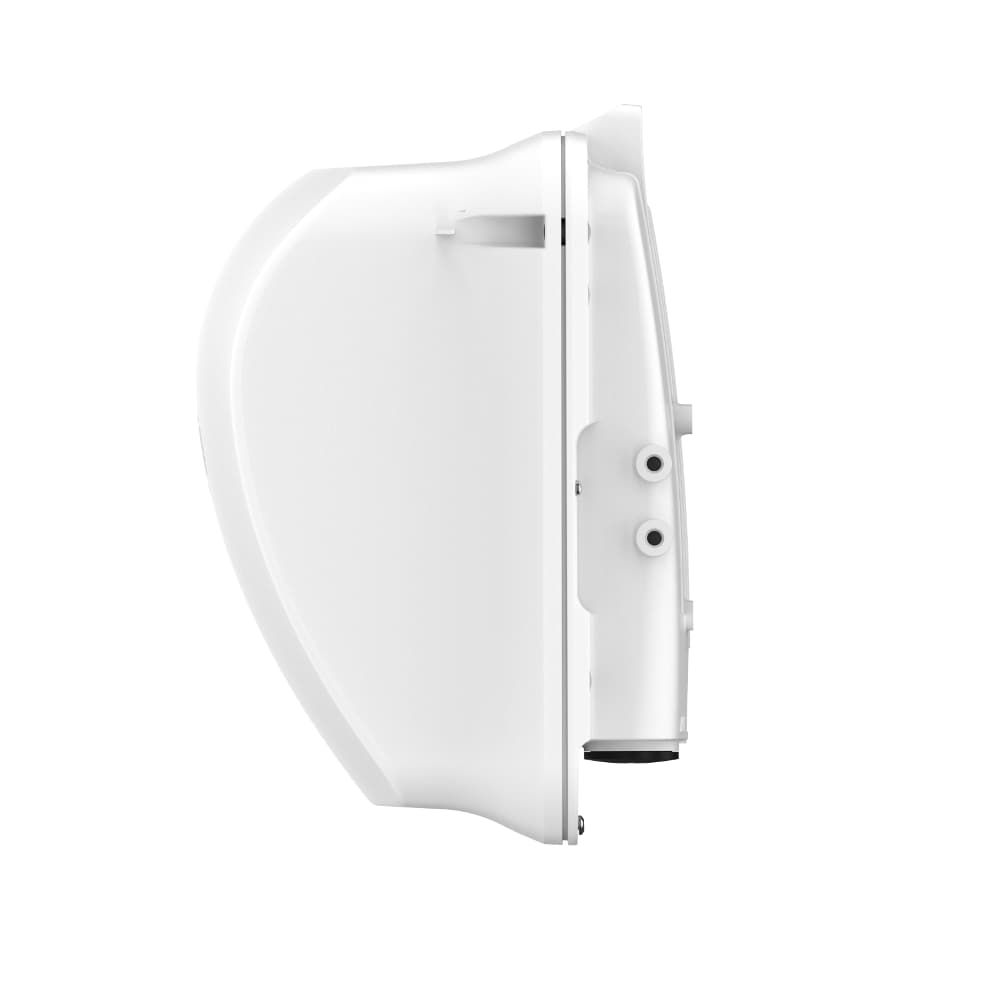

Cambium Networks V2000 60GHz cnWave Client Node 30W with US cord
- SKU: C600500C020B
$724.79
+ $26.09 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ cnWave 60GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
The V2000 is especially well-suited to backhaul Cambium’s XV2 series of outdoor Wi-Fi AP’s
Product Features- 2.5GbE PoE input port as well as a 2.5GbE PoE 802.3at output port for powering Wi-Fi access points or video surveillance cameras
- Operates with Cambium Networks’ cnMaestro management system, a cloud-based or on-premises software platform for secure, end-to-end network control
- Designed for high-speed and high-density deployments
- Supports 57GHz to 66GHz frequency range
- Up to 3.6Gbps (1.8Gbps DL and 1.8Gbps UL). Future channel bonding feature will increase capacity to up to 5.2Gbps
- Auto-beamforming, ±10° horizontal, ±4.0° vertical
Specifications
Specifications C600500C020A
| Weight | 5.95 lbs |
| Dimensions | 9.8" x 11.8" x 7.9" |
| HTS NUMBER | 8517.62.0090 |
| COO | China |
| Spectrum | |
| Frequency Range | 57 to 66 GHz in a single SKU |
| Channel Width | 2.16 GHz, 4.32 GHz* |
| Channel Bonding | Up to 2 adjacent channels |
| Mode of Operation | PMP Client or PTP |
| Interface | |
| Channel Access | TDMA/TDD |
| Ethernet Interface | 1 x 2.5 GbE PoE Input 1 x 2.5 GbE PoE 802.3at Output |
| Networking | |
| Protocols Supported | IPv4, IPv6, Layer2 Bridge, Layer3 IPv6 Routing, Open/R mesh |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
| MTU | 2,000 bytes |
| VLAN | 802.1ad (QinQ), 802.1Q with 802.1p priority |
| Security | |
| Encryption | 128-bit AES |
| Firmware Security | Signed Firmware Images |
| Performance | |
| Modulation & Coding Schemes | MCS-0 (BPSK) to MCS-10 (16-QAM) |
| Latency | < 1 ms |
| Maximum EIRP | 49 dBm |
| Antenna | |
| Gain | 34.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | +/- 10º azimuth, +/- 4.5º elevation |
| Powering | |
| Type | 802.3af PoE |
| Power | |
| Consumption | 18W (48W when using PoE output port) |
| Physical | |
| Environmental | IP66/67 |
| Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
| Mean Time Between Failure | > 40 years |
| Wind Survival | 200 km/h (124 mi/h) |
