Product Information

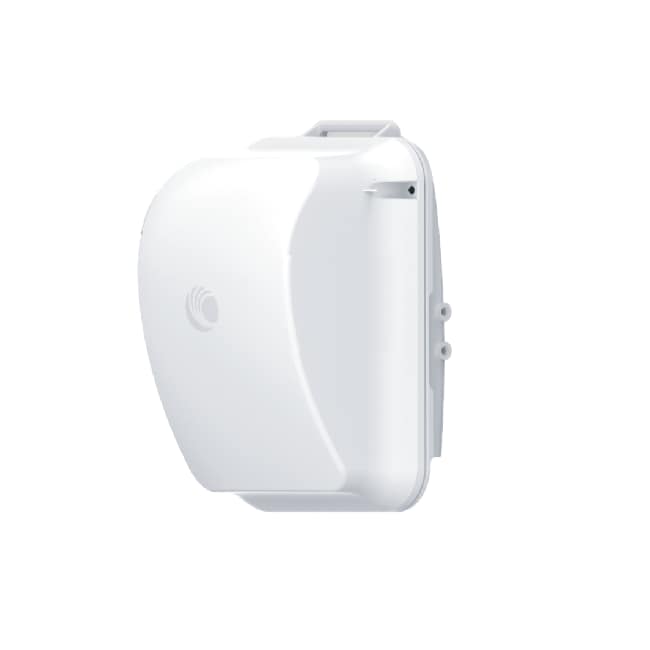

Each Bridge-in-a-Box comes with two wireless radio modules and Power over Ethernet (PoE) supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one. The Gigabit modules use the unlicensed 60GHz frequency band and are extremely easy to deploy as they come pre-configured and pre-paired to connect. The Bridge-in-a-Box 2Gb has a range of up to 500 meters and up to 3.6Gbps total throughput.
For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.
How are People Using Bridge-in-a-Box?- Extending Internet Connectivity
- Connecting Remote Wi-Fi Hotspots
- Remote Camera or CCTV Video Feeds
- Machine Shops / Garages / Storage Sheds
- Docks / Boat Ramps
- Any Remote or Outlying Buildings
- Remote Parking Lots
- Campus Buildings
- Building to Building
- Cabins and Lodges
- Construction Sites
- Temporary Events such as: Concerts, Farmers Markets, etc.
- Athletic Fields and Events
- 802.11ay Wi-Fi standard
- 34.5dBi antenna
- Range: 1km / 0.6mi
- 57GHz – 66GHz frequency range
- Ethernet interface: (1) 2.5GbE PoE Input, (1) 2.5GbE PoE 802.3at Output
- 2KV surge suppression
- (2) Wireless radio modules
- PoE supplies
Specifications
Specifications C600510C020B
| Weight | 5.4 kg (11.9 lb) |
| Dimension | 15.7in. x 9.8in. x 12.0in. |
| Operating Frequency | 60 GHz |
| Capacity | Up to 3.8 Gbps total (Up to 1.9 Gbps each direction) |
| Range | Up to 500 meters (Up to 0.3 miles) |
| Line of Sight Requirements | Must be able to see end to end |
| Environmental Ruggedization | IP67 |
| Ethernet Por | 1 x 100/1000/2500BaseT |
| PoE Output port | Yes – 2.5 GbE PoE output port supports 802.3at |
