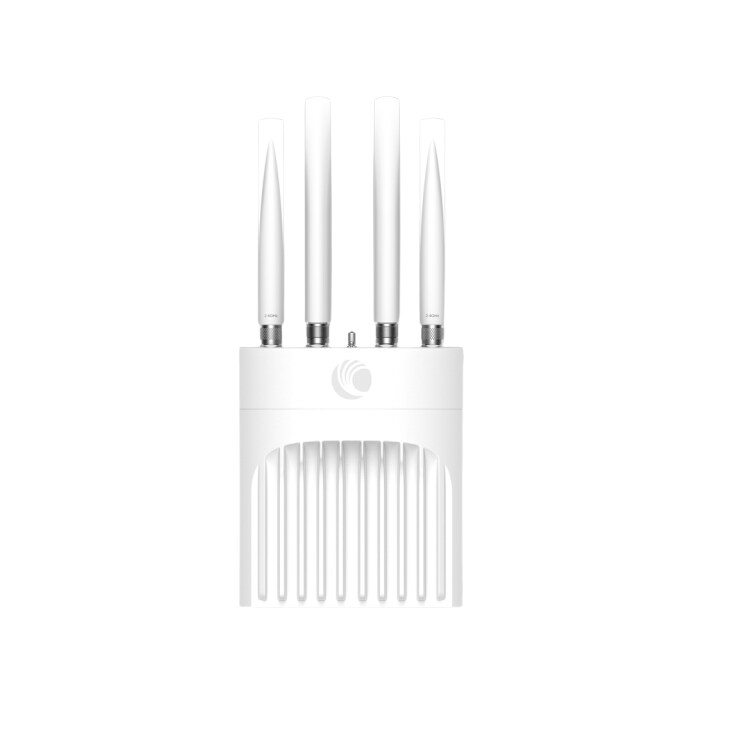

Cambium Networks XE3-4TN Outdoor Tri-band Wi-Fi 6e Access Point
- SKU: XE3-4TN0A00-US
$1,795.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
XE3-4TN Outdoor Tri-band WiFi 6e AP with SDR 4x4. 6GHz radio enabled 2.5GbE / 1GbE POE out
Product Features
- Tri-Radio/Tri-Band WiFi 6 and 6E
- Software-defined 5GHz / 6GHz radio
- AFC compliant for 6GHz operation
- 6.6Gbps aggregate data rate
- 2.5GbE and 1GbE uplink ports
- Manage by cnMaestro, XMS-Cloud, Swift
Specifications
Specifications XE3-4TN0A00-US
| Radios | • 5 GHz /6 GHz 802.11a/n/ac/ax, 4x4 SW configurable • 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 • 2.4 GHz 802.11 b/g/n/ax, 2x2 • BLE 4.1, GPS receiver |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | • 5/6 GHz radio 4,804 Mbps • 5 GHz radio 1,201 Mbps • 2.4 GHz radio 573.5Mbps |
| Ports | • 1 x IEEE 100/1000/2500 Mbps Ethernet • 1 x IEEE 10/100/1000 Mbps Ethernet with PoE out |
| Max EIRP | • 5/6 GHz TBD • 5 GHz 25 dBm • 2.4 GHz 28 dBm • EIRP may be limited by country regulations |
| Power | • Typical power 25W (802.3at) • 40W with PoE out enabled (802.3bt) |
| Dimensions | 220mm x 200mm x 86mm (8.66 in x 7.87 in x 3.39 in) |
| Weight | 2,920 g (6.44 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operation Temperature | -40ºC to 65ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| Certifications (Compliance) | WiFi Alliance 80211a/b/g/n/ac, PP2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043 |
