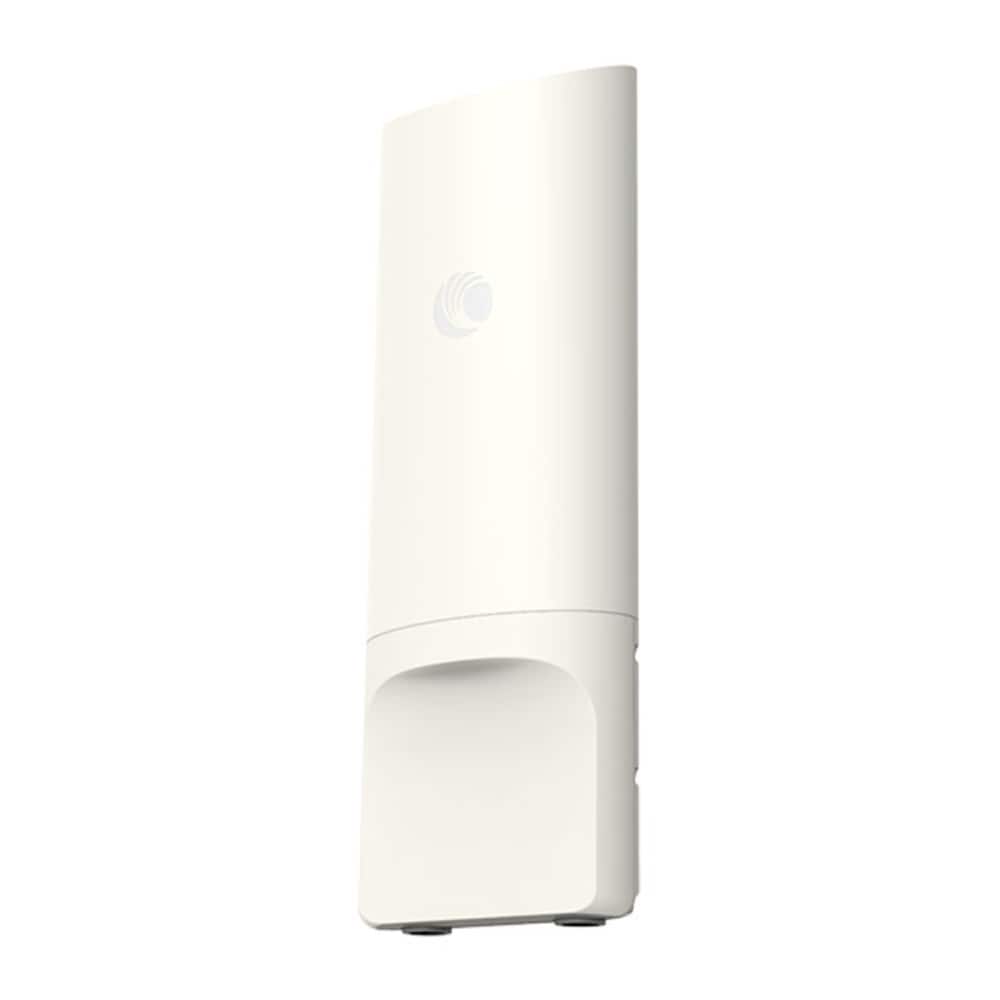

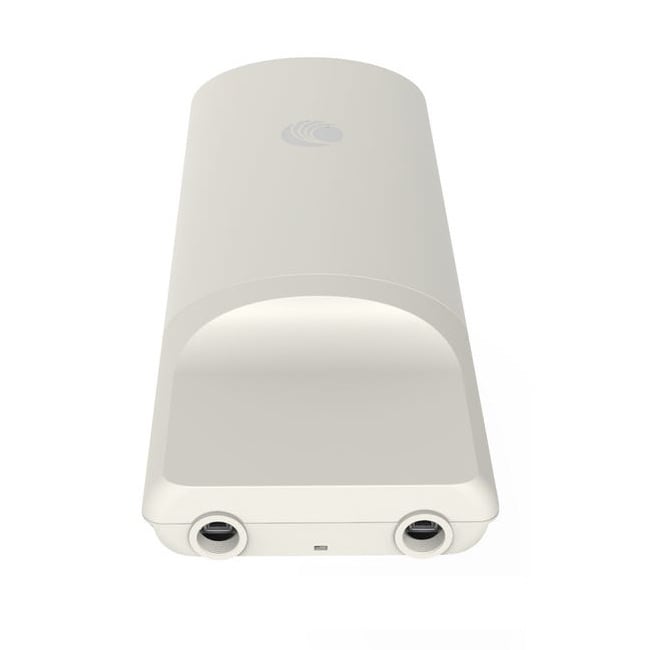

Cambium Networks XV2-2T Dual-Radio Wi-Fi 6 Outdoor Access Point (FCC)
- SKU: XV2-2T0XA00-US
$850.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The XV2-2T is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
Product Features- Dual radio 802.11ax
- 2.5GbE Uplink Ethernet
- 1GbE with power out
- 5GHz: 9.3dBi, Omni Antenna, 36dBm Max ERP
- 2.4GHz: 5.3dBi, Omni Antenna, 33dBm Max ERP
- Weight: 1,200g (2.64lbs)
Specifications
Specifications XV2-2T0XA00-US
| FCC | Ch 1–11, 36–48, 52–64, 100–144, 149–165 |
| Radios | 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open |
| Max PHY Rate | 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps |
| Ports | 1 x IEEE 100/1000/2500 Mbps 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
| Antenna | 5 GHz 9.3 dBi, Omni 2.4 GHz 5.3 dBi, Omni |
| Max EIRP | 5 GHz 36 dBm, 2.4 GHz 33 dBm EIRP may be limited by country regulations |
| LTE Filter Band | 38, 40 |
| Power | 20W max Up to 50W when powering an auxiliary device |
| Dimensions | 582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in) |
| Weight | 1,200 g (2.64 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operation Temperature | -40ºC to 65ºC (-40ºF to 149ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| MTBF | 25ºC = 661,200 hours 65ºC = 187,375 hours |

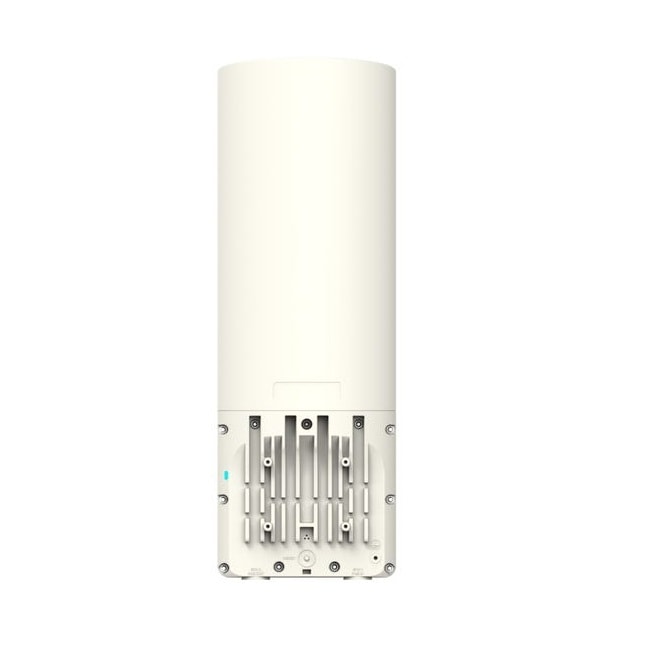

| Mount Options | Pole or wall mounting. Pole diameter: MIN 30 mm / MAX 75 mm |
| Certifications (Compliance) | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1,IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4- 2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
| Network Spec | |
| Operational Modes | Standalone Cloud managed cnMaestro or VM Cloud managed XMS |
| WLAN | 512 clients, 16 SSIDs WPA3, WPA3 SAE, WPA3 Enterprise, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF |
| Authentication Encryption | 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Scheduled WLAN | On/off by day, week, time of day |
| Guest Access | See “Captive Portal” section for additional details. |
| Data Limit | Client bitrate/time/throughput limit per SSID |
| Subscriber QoS | WMM |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Channel Selection | Multimodal channel selection with AutoChannel and AutoBand. Granular control of off-channel scan and channel selection |
| Band Steer Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Network and RF Management Tools | Wired and wireles remote packet capture, auto logging, ZapD performance tool, rogue AP detection |
| Services | NTP, Syslog, SNMP traps, DNS proxy |
