Cambium Networks XV2-22H Wi-Fi 6 Access Point
- SKU: XV2-22H0A00-US
$454.20
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information

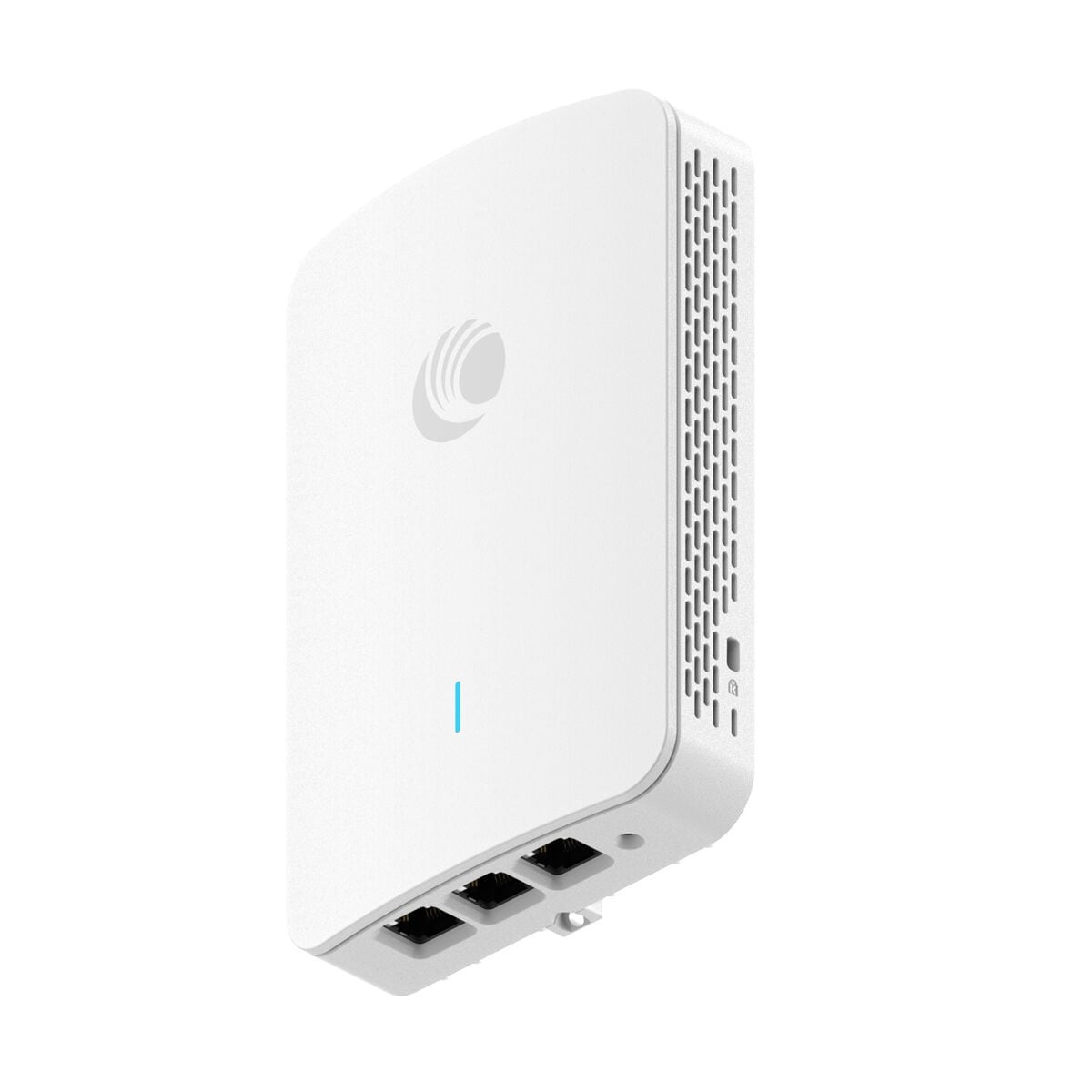

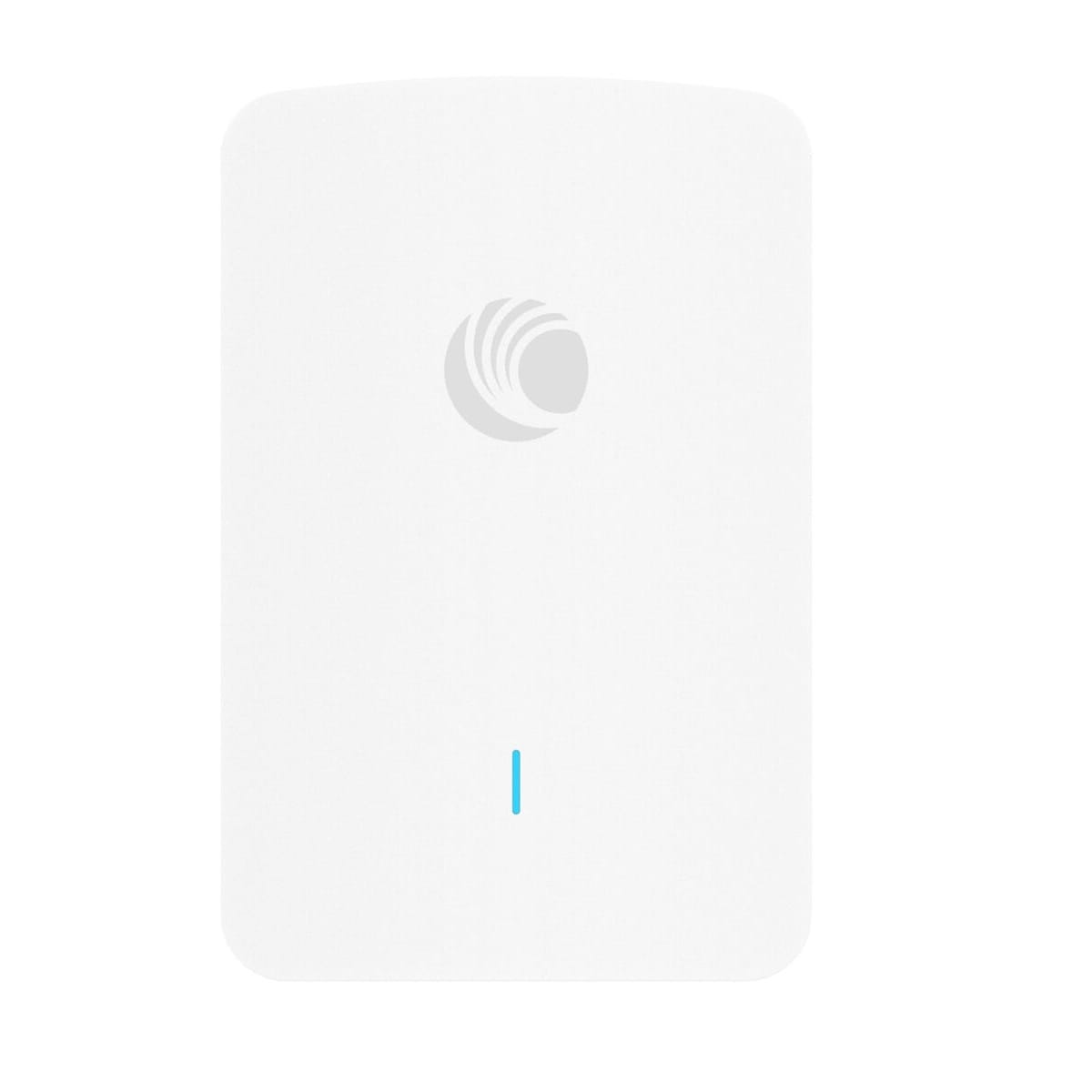

Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
- Wall plate 802.11ax, 2x2

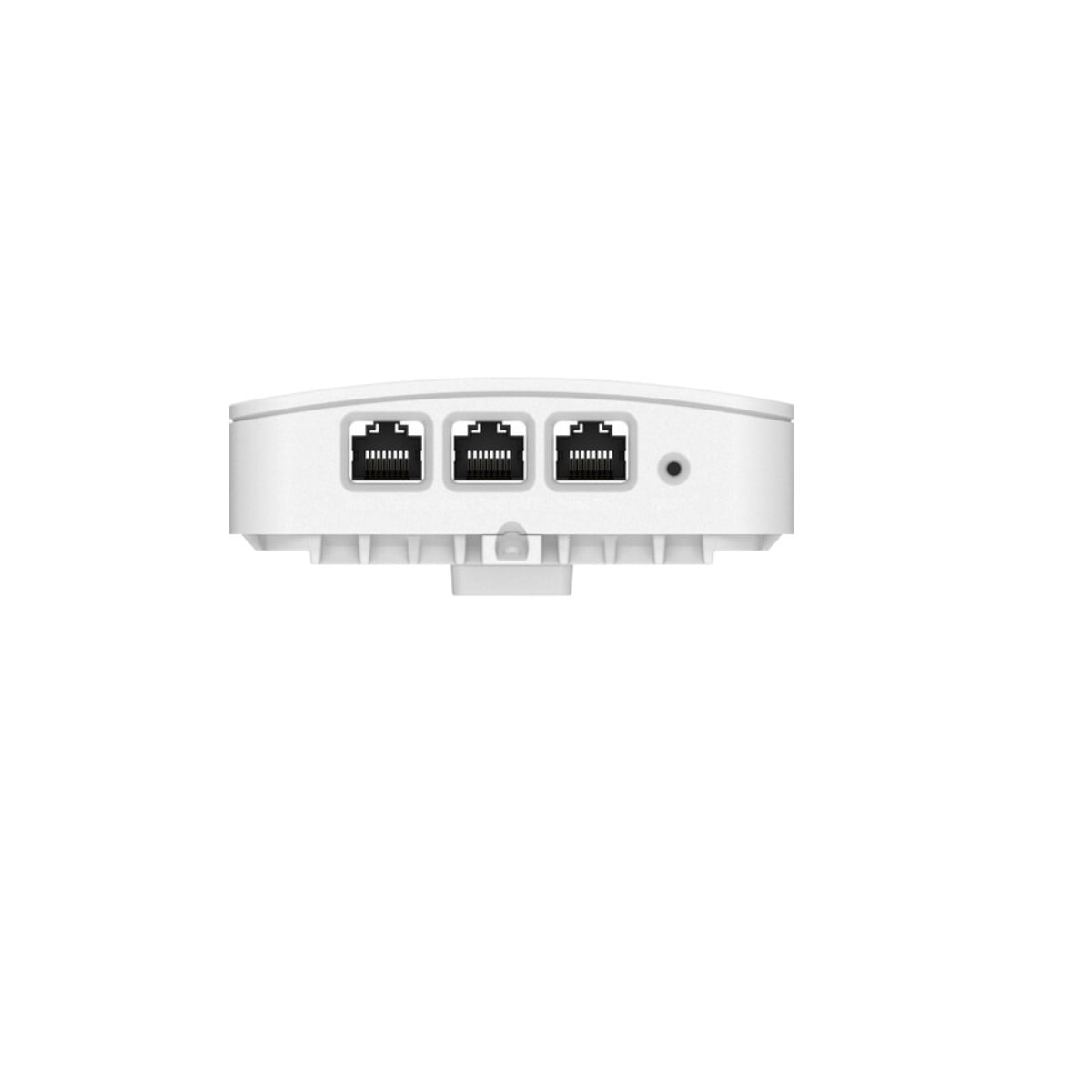

- 3 x GbE Ethernet, one with PoE out

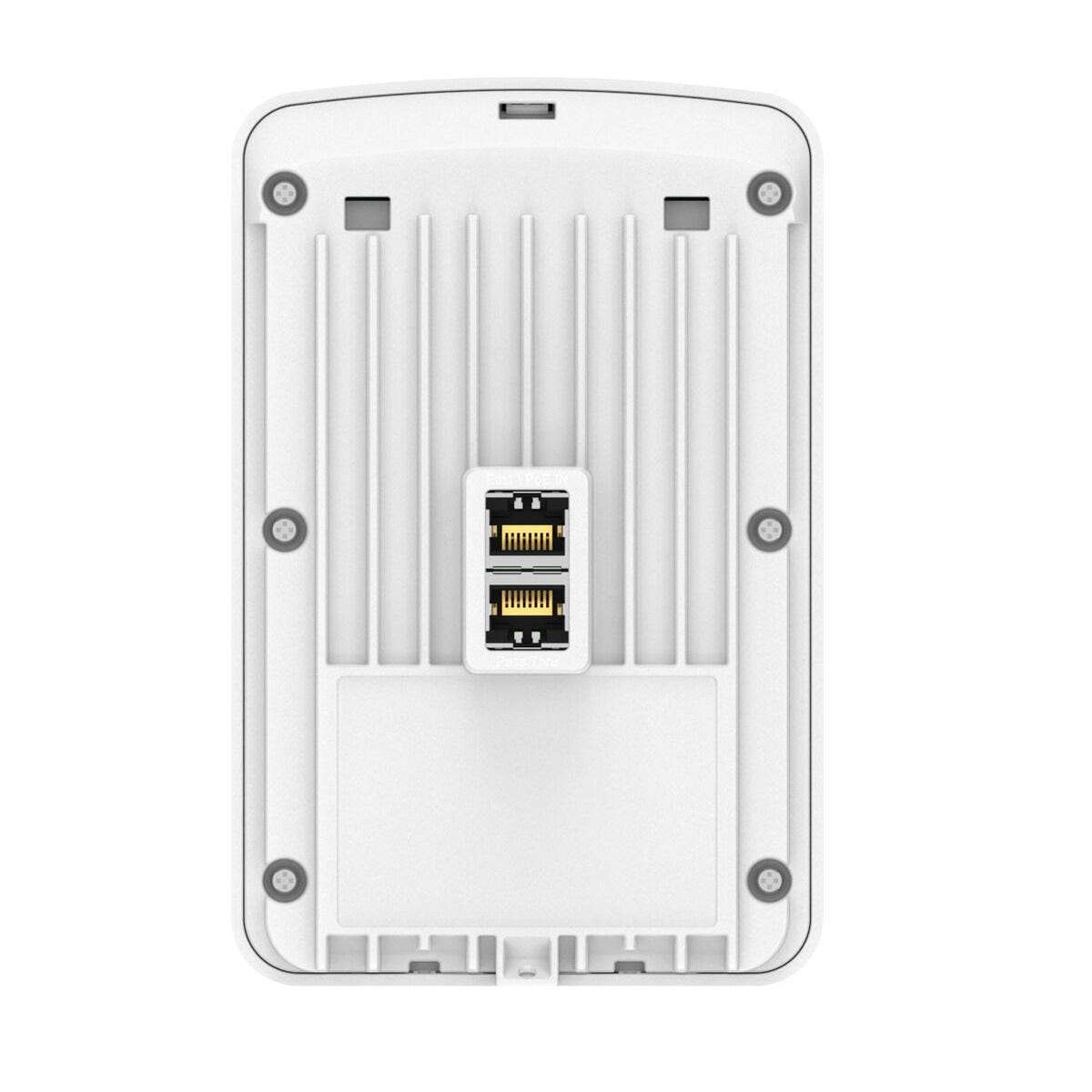

- RJ45 electrical pass-through ports
- BLE / Zigbee / Thread / Matter
- Limited Lifetime Warranty
Specifications
Specifications XV2-22H0A00-US
| Wireless | ||
| Wi-Fi | Wi-Fi 6 (802.11ax) | |
| MU-MIMO Support | 2 x 2 | |
| Antenna Gain | 4.4 to 5.5 dBi | |
| Supported Protocols |
| |
| Antenna Placement | Internal | |
| Bluetooth | None | |
| Throughput | 2976 Mb/s Total 5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s | |
| Interface | ||
| Inputs/Outputs | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+ 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE 2 x Ethernet (RJ45) (Pass-Through) | |
| Security | ||
| Guest Network Support | Yes | |
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 | |
| Lock Slot | Yes, Kensington | |
| Management | ||
| Operation Modes | Access Point | |
| Supported Clients | 128 | |
| Max SSIDs Supported | 16 | |
| Mobile App Compatible | Yes | |
| Hardware | ||
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11n, 802.11r, 802.11u, 802.1x, 802.3af, 802.3at | |
| Environmental | ||
| Operating Temperature | 32 to 104°F / 0 to 40°C | |
| Storage Temperature | -40 to 158°F / -40 to 70°C | |
| Operating Humidity | 95% (Non-Condensing) | |
| IP Rating | None | |
| Dimensions (LxWxH) | 6.3 x 4.1 x 1.3" / 160 x 105 x 32 mm | |
| Weight | 0.9 lb / 417 g |
