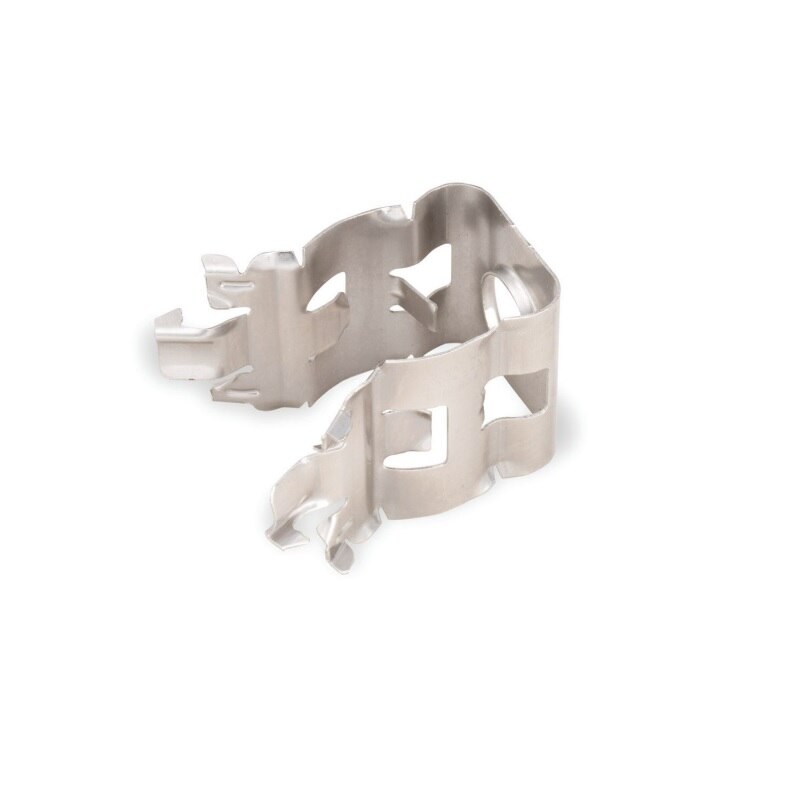

Stackable Snap-In Hanger Kit for 7/8" Heliax Cable, 10/Pkg
- SKU: ANDSSH-78
$26.12
- Manufacturer: CommScope
- Data Sheet: Download
Product Information
Stackable Snap-In Hanger Kit for 7/8" Heliax Cable, 10/Pkg
Specifications
Specifications ANDSSH-78
| Color | Silver |
| Length | 64.00 mm | 2.52 in |
| Height | 41.00 mm | 1.61 in |
| Width | 40.00 mm | 1.57 in |
| Operating Temperature | -40°C to +85°C |
| Dimensions | |
| Nominal Size | 7/8 in |
| Electrical | |
| DTF Effect | 0.1 dB |
| Return Loss Effect | 0.1 dB |
| Material Type | Stainless Steel |
| Compatible Diameter, Max | 30.988 mm | 1.220 in |
| Compatible Diameter, Min | 26.670 mm | 1.050 in |
| General | |
| Hanger Type | Snap-in Hanger |
| Package Quantity | 10 |
| Mounting | 3/4 in Drilled Cable Ladder |
| Maximum Stack Height | 3 |
| Vibration Survival | ≥4 Hours at Resonant Frequency |
| Cables Per Hanger | 1 |
| Mechanical | |
| Axial Load Capability, Min with no Cable Slippage | ≥5 Time Cable Weight |
| Corrosion Resistance Min with no Degredation | ≥500 Hours in Salt Spray Chamber |
| Weight | 0.93 lbs |
