Product Information
The Distribution Series 3 from ICT is a dual-bus DC distribution panel designed to be used in 12-, 24- or 48-volt DC applications. This dual-bus panel can support dual-voltage inputs and mixed polarities and is available with either fuse- or circuit breaker-protected outputs. Models include a secure, easy-to-use web-browser interface, which provides remote power monitoring, power control, and alarm reporting over an Ethernet link, along with SNMP support for integration into your network management system.
The ICT Distribution Series 3 provides independent dual bus capability for redundant systems or mixed-voltage sites. Each bus is rated at 100A peak and provides six fuse or breaker protected outputs. Standard models are available for unmanaged applications, while Intelligent models include ICT’s industry leading TCP/IP remote management and power control features.
Product Features:- 200A peak system current rating / 100A per bus
- Six outputs per bus
- Independent Form C alarm contacts for each bus
- Choice of fuse or breaker protected models
- Mixed voltages and polarities can be supported in one panel (provided grounds are common)
- Front panel LED indicators for fuse status (fuse models)
- 2 year warranty
- TCP/IP remote management and power control of system and individual outputs
- On-board web server means no software to maintain
- Remote firmware update capability
- HTTPS, SMTP, SNMP protocols supported
- Monitoring and alarm reporting of each output for pinpointing of issues with connected loads
- Alarms can be sent to multiple email accounts
- Each output has adjustable load-shed settings
- Five digital inputs for site monitoring sensors
- Data logging
- Password protection

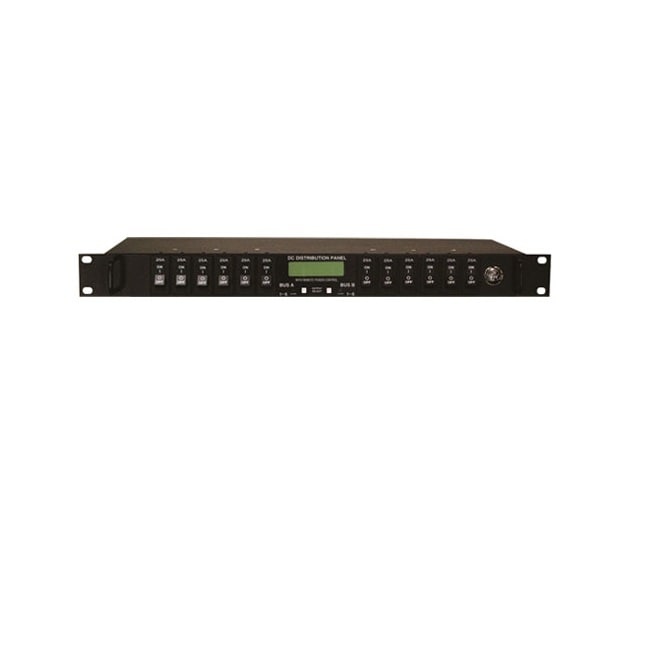

- ICT Intelligent Dual Bus Breaker Panel (Distribution Series 3)
Specifications
Specifications ICT200DB-12IRC
| Weight | 7.0 Lbs | 3.2 Kg |
| Dimensions | 9.29"L x 19.00"W x 1.72"H |
| Mechanical Specifications | |
| Form Factor | 1RU - 19 Inch rack mount with handles |
| Connectors | M8 DC input stud connectors 10-22AWG cage clamp output terminal blocks |
| Power Specifications | |
| Application Voltage (pos or neg ground) | 12,24,48VDC |
| System Current Rating (peak⁄cont) | 200A/160A |
| Bus Current Rating (peak⁄cont) | 100A/80A |
| Number of Outputs per bus | 6 |
| Operating Voltage Range | 10-60VDC |
| Number of ATO Fused DC Outputs | 12 |
| ATO Max Fuse Rating (12,24V⁄48V) | 25A/15A(See Spec Sheet) |
| Environment | |
| Operating Temperature Range | -30°C to +60°C |
