LightSaber Optics LSO-27UOD-850800-AC1500W-H
- SKU: LSO-27UOD-850800-AC1500W-H
Product Information

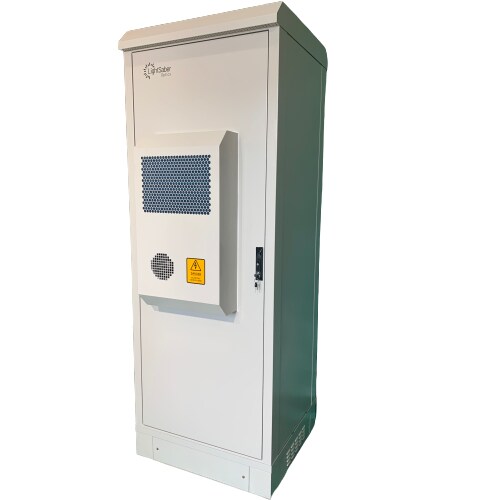

Light Saber Optics 27RU 33.5" Wide x 31.5" Deep Outdoor Cabinet with AC 1500W (5K-Btu)Air conditioner /Heater NEMA 4X Rated|Grey
Outdoor Telecommunication Cabinet with Air Conditioner (sandwich panel double-wall structure design) is mainly used for wireless communications to house a variety of batteries and equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.
Air conditioner is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provides a secure, thermally managed environment for backup battery systems for telecommunications and cable applications.
Features:
- Fully assembled
- Sandwich structure for better cooling efficiency
- 27U equipment space plus 2 sections of battery storage space (13in Height of each space);
- 4-point locking system
- Reversible adjustable 19inch or 23inch equipment rail, with cable rings included (default configuration:19inch)

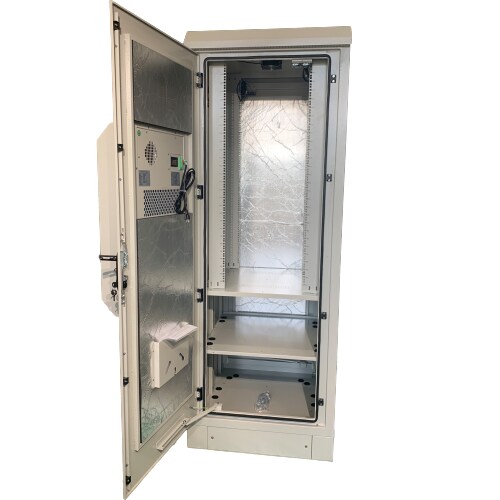

- Front door and rear door opening access
- Wind stop bracket to hold the doors when opening
- 150mm Height Plinth (includes mounting hardware)
- Copper grounding bar
- Cabinet made for low thermal conductivity and fireproof heat insulation material.

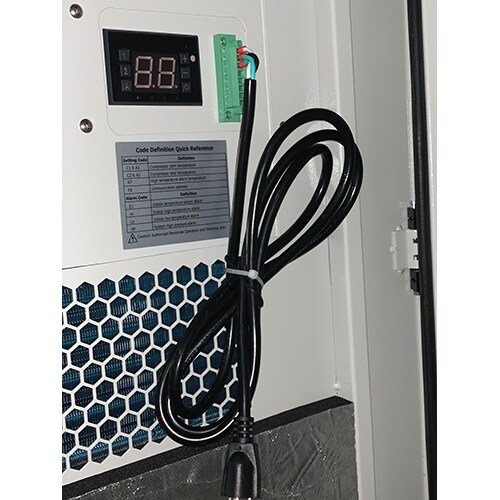

- AC110V 60Hz 1500W(5118 BTU) Air conditioner
- Document box at the rear door for store the equipment manual or useful document
- Cable entry holes with grommet on the bottom
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level NEMA 4X.
Also Includes:

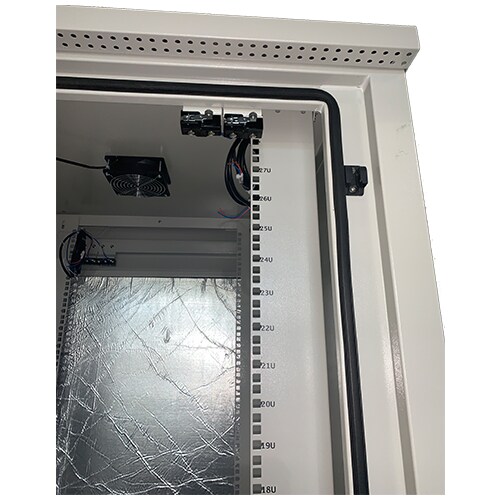

- 1x DC48V emergency fan (with temperature controller)
- 2x DC48V LED lights (Front and rear top)
- 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light, the light will be ON when the door opens and OFF when the door closed; 1 sensor is pre-configured with the EMS unit)
- 30 x M6 cagenut
- 2 Keys
- 1 Manual
Application:
- Telecommunication
- Wireless/Broadband
- Base station
- Solar based installations
- Wireless cell sites & switches
- Transmission terminals
- Data and Control
- Transportation
Specifications
Specifications LSO-27UOD-850800-AC1500W / Heater
| Structure | |
| Protection Class | NEMA 4X |
| Rack Unit Size | 27U |
| Battery Space | 12.83 inches (2 Sections) |
| Cabinet Type | Floor standing Integrated Outdoor Cabinet w/ Air conditioner |
| Color | Grey RAL7035 |
| Material | Powder Coated Galvanized Steel |
| Unit Dimension (DxWxH) | 33.46 x 31.50 x 92.52 inches (without extruded rain Hood Dims) |
| Unit Weight(lbs) | 566.43 |
| Internal Depth(Front Rail to Back Door) | 24.72 |
| Rail to Rail Depth | 23.81 |

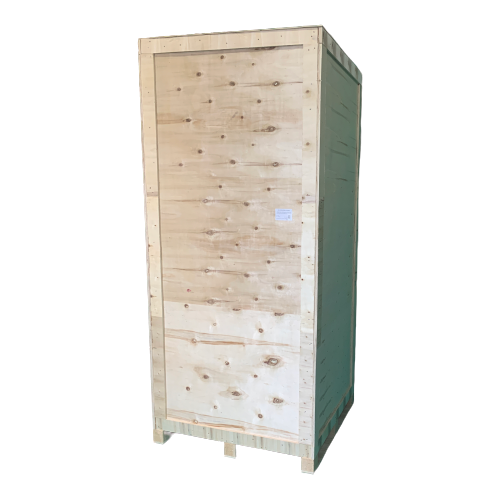

| Shipping Dimension (WxDxH) | 37.01 x 43.31x 100.39 inches |
| Shipping Weight | 705.28 |
| Electrical | |
| Air Conditioner | AC110V Cooling Capacity 1.5KW (5118 Btu (refrigerant: R134a) / Heater |
| Fan | ADC48V Cooling Emergency Fans x 1 (with temperature controller) |
| Grounding | Earthing Copper Bar, Grounding Wires |
| Door Alarm | Front and rear door alarms |
| Lights | DC48V LED Lights (2) |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1-year |
