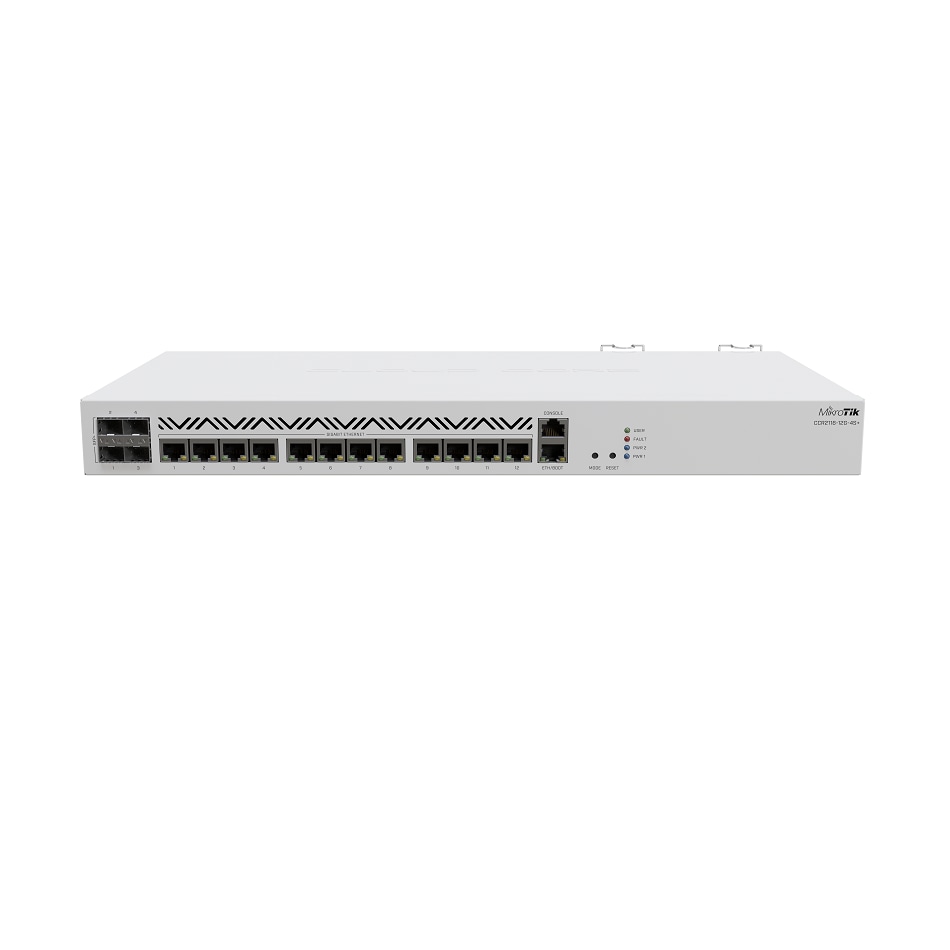

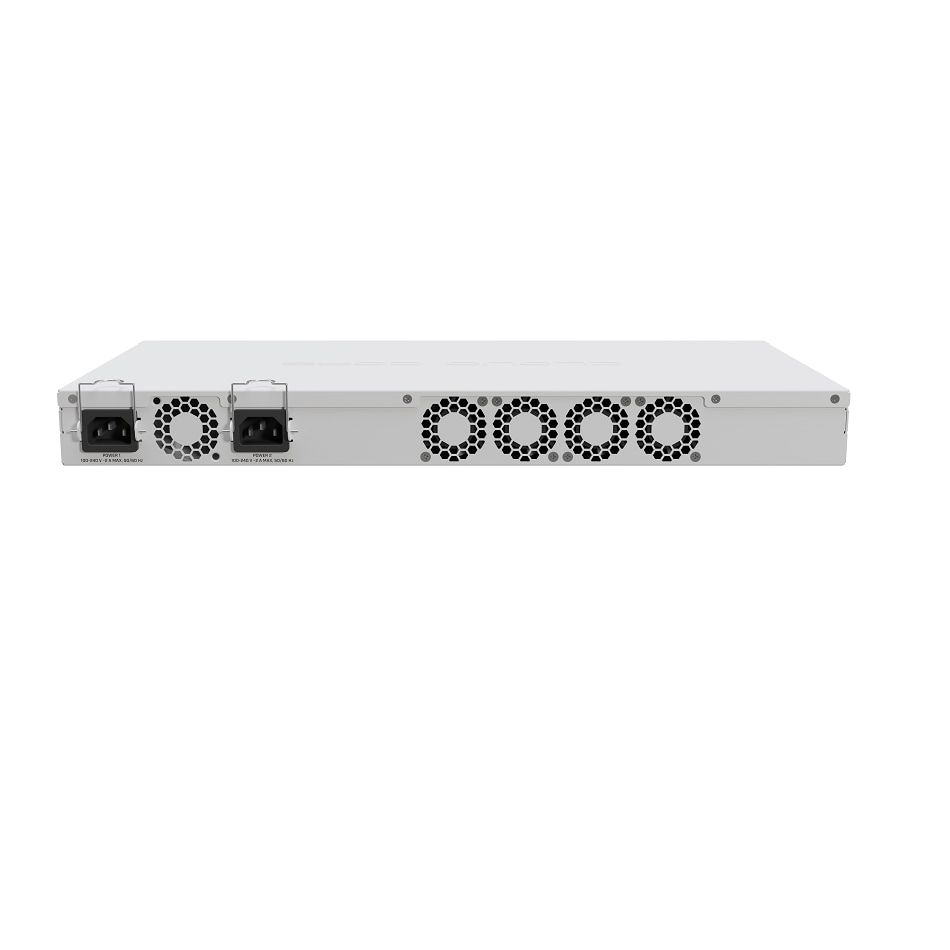

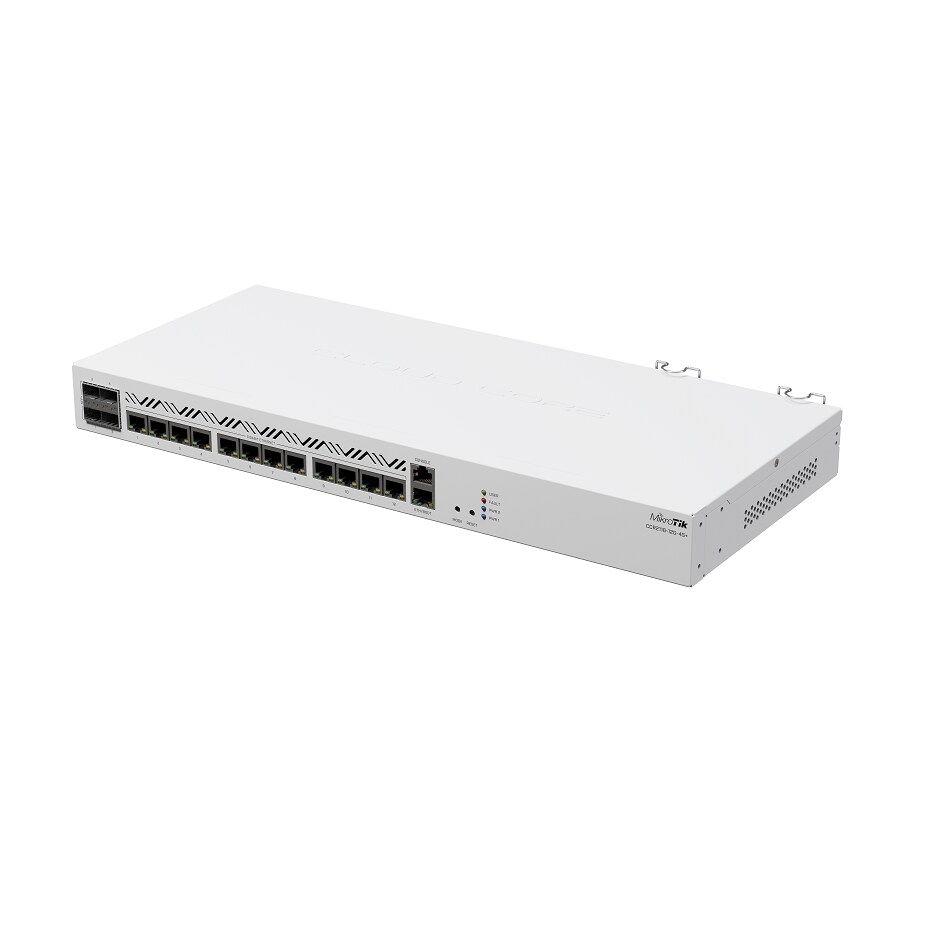

MikroTik CCR2116 Cloud Core Router with 4x 10G SFP+ Ports
- SKU: CCR2116-12G-4S+
$965.15 $995.00
Product Information
The MikroTik CCR2116 4 SFP+ Ports Cloud Core Router is a cutting-edge network router designed for data center and enterprise environments. Powered by a 64-core Amazon Annapurna Labs Alpine v3 AL73400 CPU running at 2GHz per core and 16GB of RAM, it delivers unparalleled processing power. With four 10G SFP+ ports and thirteen Gigabit Ethernet ports, it offers lightning-fast connectivity options.
The router features an M.2 PCIe slot for expandable storage, a dual power supply unit for enhanced redundancy, and support for Layer 3 hardware offloading. Its 1U rackmount case and advanced security features make it the ideal choice for demanding network environments seeking top-notch performance and seamless data handling.
Product Applications- Datacenter and enterprise network environments
Product Features
- 16 CPU Core Count
- 16GB RAM for efficient data processing and multitasking
- 4x 10G SFP+ ports for high-speed connectivity
- 13x GbE ports for versatile network configurations
- M.2 PCIe slot for expandable storage options
- Dual Power Supply Unit for redundancy and reliability
- Supports Layer 3 Hardware Offloading for enhanced performance
- Rackmount case design for easy installation in server racks
- 2x IEC Power Cords (US Plug)
- Rackmount Bracket White
- K-57 Kit
Specifications
Specifications CCR2116-12G-4S+
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 72 W |
| Max power consumption without attachments | 60 W |
| FAN count | 4 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 13 |
| Fiber | |
| SFP+ ports | 4 |
| Peripherals | |
| Serial console port | RJ45 |
| Number of M.2 slots | 1 |
| Other | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
