MikroTik NetFiber9 Outdoor Switch 5x SFP / 4x SFP+
- SKU: CRS310-1G-5S-4S+OUT
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik netFiber 9 outdoor switch offers robust networking capabilities with SFP, SFP+, and Gigabit Ethernet. It features an ARM v7 CPU, 256 MB RAM, and 4x 10G SFP+ ports driven by an advanced Marvell switch-chip for heavy loads. The Gigabit Ethernet port supports PoE-in for flexible power options.

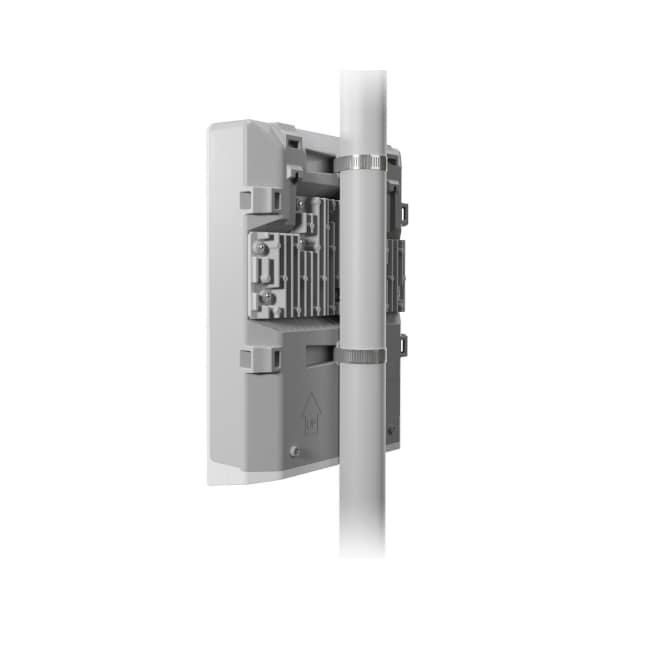

With 5 regular SFP ports and 4 SFP+ ports, it's ideal for 10Gbps networking. The sturdy, splash-resistant case suits outdoor environments. A large heatsink aids in heat dissipation and ensures stable installation on poles or walls with included mounting hardware.
The netFiber 9 excels in long-distance, low-latency connections, making it perfect for environments prone to electromagnetic interference. This versatile switch with 10 ports and a powerful CPU simplifies network management.
Product Features
- DC power connector 18V – 57V
- LED indicating a power state of the device.
- A number of 1G SFP ports - 5
- A number of 10G SFP+ ports - 4
Product Includes
- 48V 0.95A power adapter (US Plug)
- Gigabit PoE injector
- K-66 fastening set
- Hose Clamp 2
Specifications
Specifications CRS310-1G-5S-4S+OUT
| CPU | 98DX226S 800 MHz |
| CPU core count | 1 |
| Size of RAM | 256 MB |
| RAM type | DDR3 |
| Number of 1G Ethernet ports | 1 |
| Number of 1G SFP ports | 5 |
| Number of 10G SFP+ ports | 4 |
| Operating system | RouterOS (License level 5) |
| Switch chip model | 98DX226S |
| Dimensions | 304 x 212 x 71 mm |
| Operating temperature | -40°C to +70°C tested |
| Powering | |
| PoE-in | 802.3af/at |
| Number of DC inputs | 2 |
| Supported input voltage | 18-57 V (PoE in) 18-57 V (DC jack) |
| Power adapter nominal voltage | 48 V |
| Power adapter nominal current | 0.95 A |
| Certification & Approvals | |
| Certification | CE, FCC, IC, IP54 |
