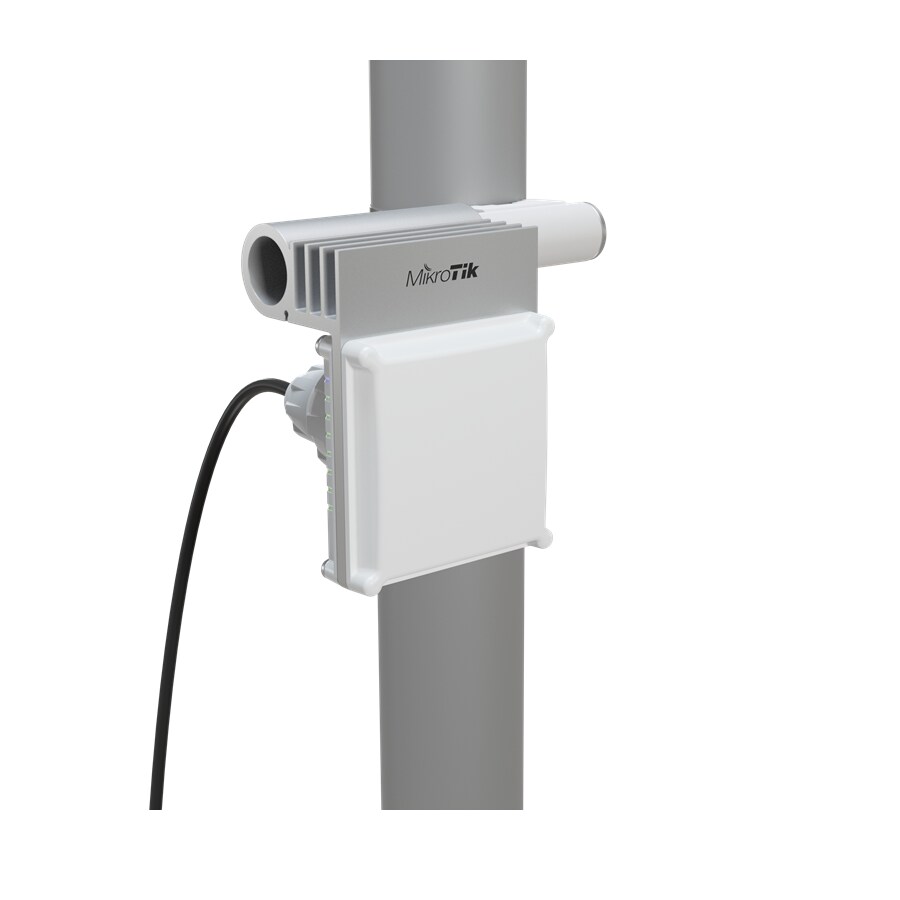

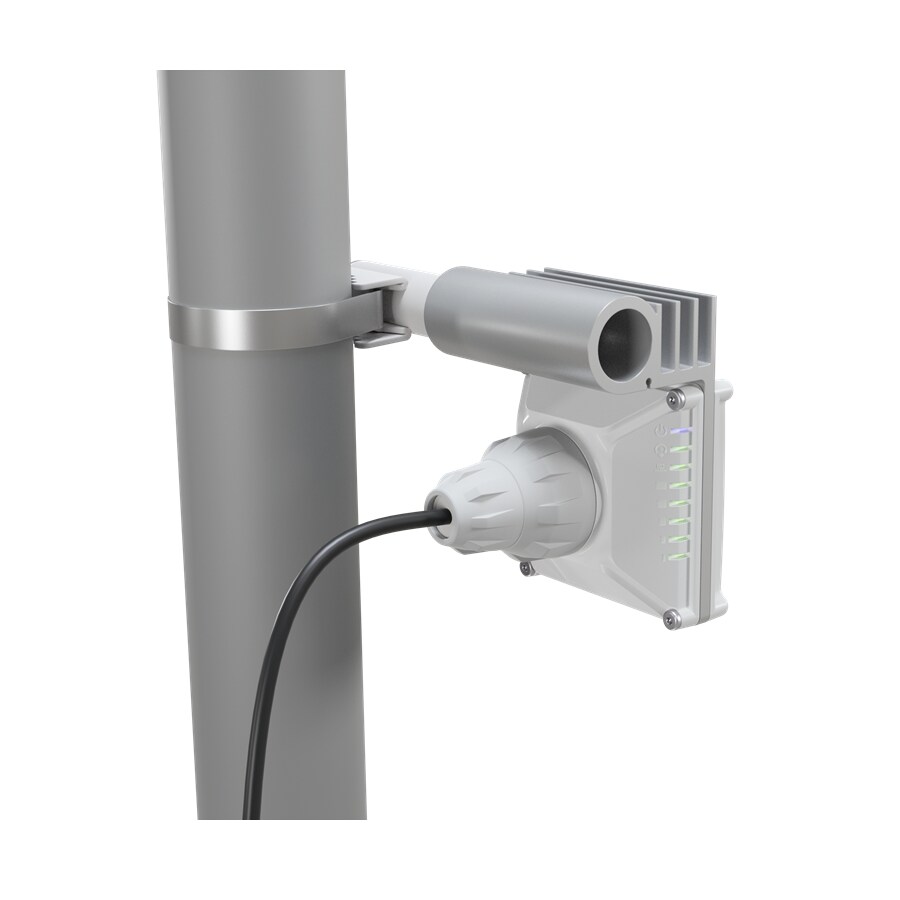

MikroTik CubeSA 60Pro ac Sector Antenna (US)

(0)No Reviews yet
  • SKU: CubeG-5ac60ay-SA-US
$193.03 $199.00

14 In Stock

14 in stock

Product Information

ISP Supplies supplies the MikroTik CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

Forget about downtime with the automatic 5 GHz backup connection:

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

MikroTik has upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Specifications

Specifications CubeG-5ac60ay-SA-US

CPU4 core IPQ-4019 716 MHz
Size of RAM256 MB
Storage64 MB flash
Number of 1G Ethernet ports1
Wireless5 GHz 802.11a/n/ac
Wireless Chains1
Antenna gain (dBi)11.5 5 GHz
Antenna beam width35° 5 GHz
Antenna beam width at 60 GHz11° (CubeG-5ac60ay); 60° (CubeG-5ac60ay-SA)
GPSMT3337V
WiGig chipsetQCA6438
WiGig antenna moduleSWL-QD46
Supported protocolMikroTik 802.11ad / 802.11ay
Max EIRP (dBm)40
Dimensions115 x 211 x 90 mm (Cube G-5ac60ay-SA)
4.52" x 8.30" x 3.54"
Operating temperature-40°C to +70°C
Operating systemRouterOS, License level 4
Certification & Approvals
CertificationCE, FCC, IC
Powering
PoE-in802.3af/at
Supported input voltage18-57 V
Power adapter nominal voltage24 V
Power adapter nominal current0.8 A
Max power consumption13 W
Wireless specifications
Rate (5 GHz)Tx (dBm)Rx (dBm)
6MBit/s22-93
54MBit/s18-74
MCS022-93
MCS717-71
MCS915-68
