MikroTik quickMOUNT Basic Wall Mount Adapter
- SKU: QM
- Manufacturer: MikroTik
- DataSheet: Download
Product Information

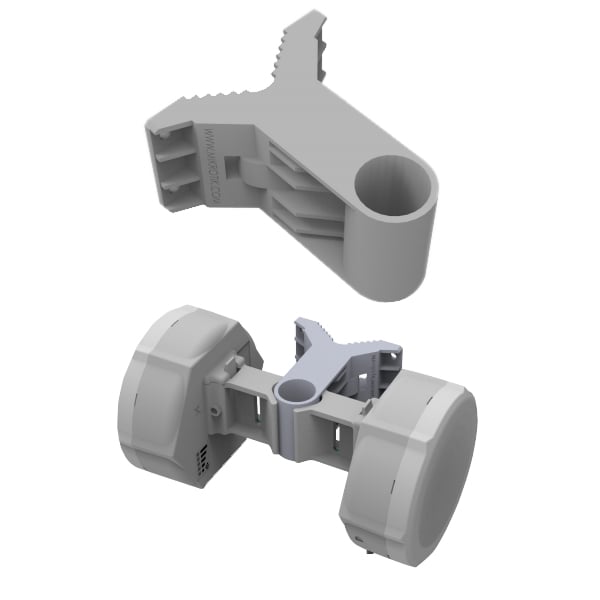

ISP Supplies supplies the MikroTik QM quickMOUNT basic wall mount adapter for small point to point and sector antennas. You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT gives possibility to turn antenna within 190°.
With the quickMOUNT it is possible to simultaneously mount two SXTs, thus creating a repeater access point or creating large sector coverage.
You can use the quickMOUNT with any pole mountable device with weight less than 1.5 Kg.
Features:
• simple and low cost
• supports SXT, Omnitik, BaseBox or any other pole mountable device
• supports up to two SXT units
The adapter is very durable due to it’s special material composite - anvilNITE (TM).
Specifications
Specifications QM
Dimensions | 96x107.5x56 mm |
Tube diameter | 35 mm |
Max tube diameter to which mount can be attached | 65 mm |
Maximum antenna weight | 1.5 kg |
Maximum wind load | 100N |
Compatible devices | SXT series, Omnitik, 3rd party antennas that are designed to be pole mounted |
Turn angle for Mikrotik products | 190° |
Operational temperature range | ±40° C |
Material | anvilNITE™ |
