MikroTik NetMetal 5 Triple Chain 5GHz Integrated 802.11ac AP/Backbone/CPE
- SKU: RB922UAGS-5HPacT-NM
Product Information
ISP Supplies supplies the MikroTik NetMetal 5 triple chain 5GHz integrated 802.11ac AP/Backbone/CPE. This NetMetal version is equipped with a miniPCI-express slot, a SIM slot for 3G/4G device or additional wireless card, a high power 3x3 triple chain 802.11ac wireless and three RP-SMA connectors for external antennas.

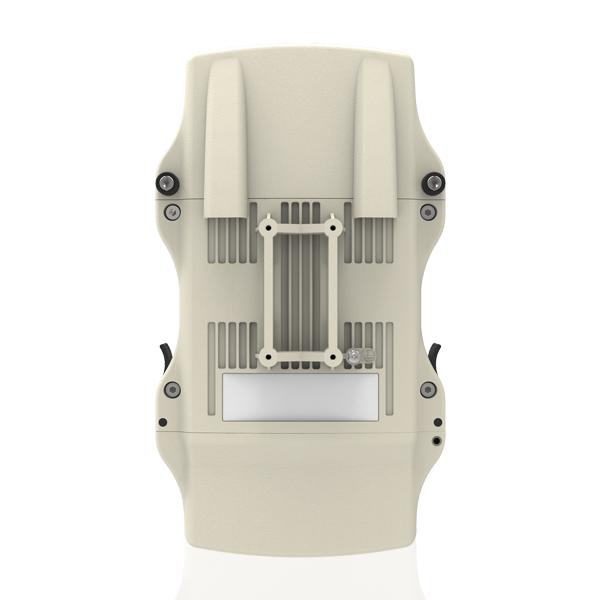

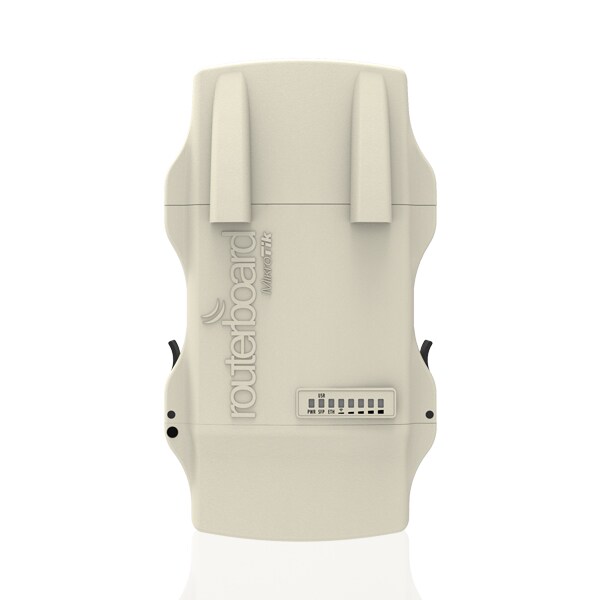

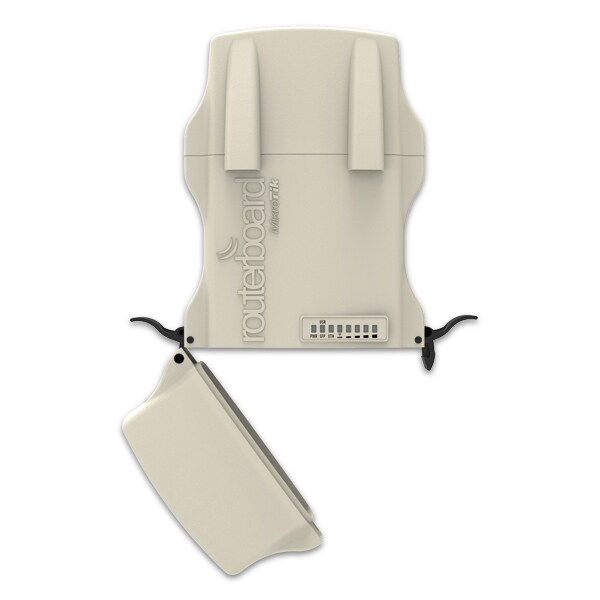

The NetMetal is a 802.11a/n/ac wireless device in a waterproof metal enclosure (IP54). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
This version, RB922UAGS-5HPacT-NM (International) supports 5150MHz-5875MHz range. (Specific frequency range can be limited by country regulations).
Specifications
Specifications RB922UAGS-5HPacT-NM
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Wireless chip model | QCA9880 |
| Wireless standards | 802.11a/n/ac |
| Number of USB ports | 1 |
| 802.3af support | no |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| Dimensions | 143x247x48mm (PCB) |
| Operating System | RouterOS |
| License level | 4 |
| CPU | QCA9557 |
| Max Power consumption | 23W |
| SFP ports | 1 |
| USB slot type | USB type A |
| Storage size | 128 MB |
| Storage type | NAND |
