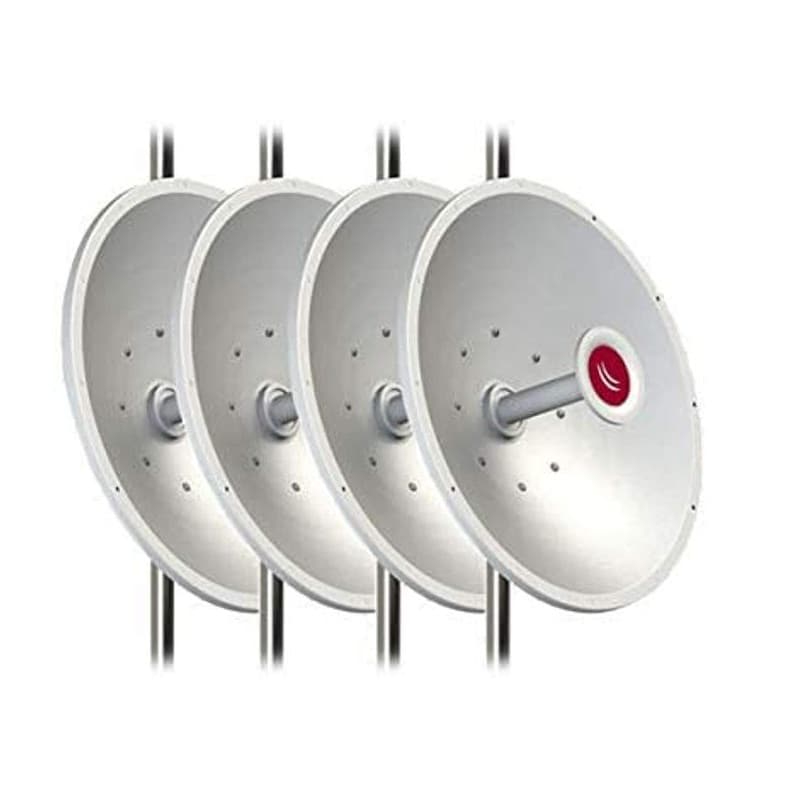

MikroTik mANT30 Parabolic Dish Antenna for 5GHz
- SKU: MTAD-5G-30D3
$165.00
Product Information

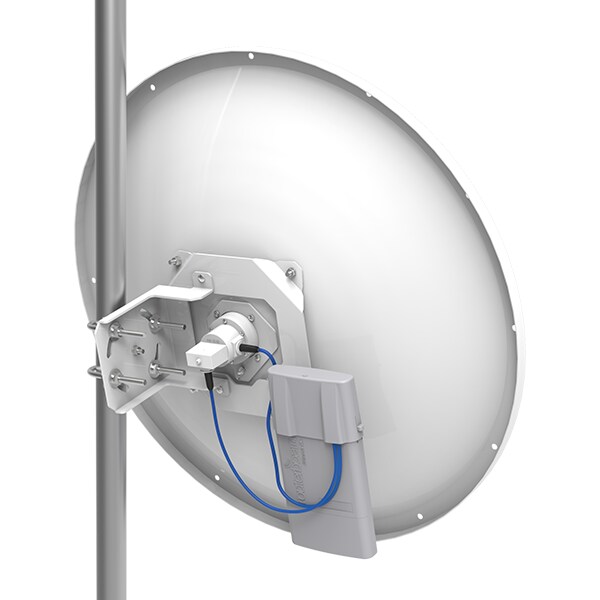

The MikroTik mANT30, a professional class 5GHz, 30dBi dish antenna, is built to the highest industry standards to accomodate the Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Product Features- 5GHz, 30dbi gain
- FlexGuide
Specifications
Electrical Specs MTAD-5G-30D3
| Frequency Range | 4.7-5.875 GHz |
| Gain | 30 dBi typically |
| Polarization | Dual (Vertical and Horizontal) |
| 3dB Beamwidth | +/-2.5 deg |
| Standards | Complies with EN 302 326 DN1, DN2, DN3, DN5 |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Port to Port Isolation | >40dB min |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >40 dB |
| Power Rating | 100 watts |
| Impedance | 50 ohms |
| Elevation adjustment range | +/- 20 deg (MTAD-5G-30D3), +/- 15 deg (MTAD-5G-30D-PA) |
Physical/Environmental Specs
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Weight neto | 5.7kg (12.6 lbs) PA and 4.8kg (10.7 lbs) standard version |
| Reflector | Aluminum |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Wind Survivability | 201kph (125mph) |
| Wind Load (125 mph) | 181.4kg (400 lbs) |
| Operating Temperature | -50°C to 80°C(-49°F to 158°F) |
| Pole Mount Diameter Range | (MTAD-5G-30D3): 3 to 7cm (1.2 to 2.75in) (MTAD-5G-30D-PA): 3 to 10cm (1.2 to 3.9in) |
| Connector (2) | RP-SMA Female (outside thread) |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | (MTAD-5G-30D3): 7.5 kg (16.5 lbs), (MTAD-5G-30D3-PA): 8.4 kg (18,5) |
| Compatible with | Can directly mount Basebox and other future RouterBOARD devices, or accept any polemounted device |
| Package includes | FlexGuide RPSMA RF Cables (RP-SMA-male to RP-SMA-male) x 2pcs; Bracket for mounting BASEBOX series radio; Self-Bonding Tape for insulating the RF cables x 2 slices; Precise alignment mechanisms (PA Version only) |
