MikroTik NetMetal ac2 Long-Range Access Point (US)
- SKU: RBD23UGS-5HPacD2HnD-NM-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
ISP Supplies supplies the MikroTik NetMetal ac² long-range access point with dual-band support. More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! MikroTik has added an out-of-the-box 2.4/5 GHz dual-concurrent (2.4GHz and 5GHz can be used at the same time) band support – no need for additional tinkering!
NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.
Two RP-SMA connectors allow adding an antenna of your choice. If necessary, you can adapt the NetMetal ac² for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit (not included; available for ordering seperately)

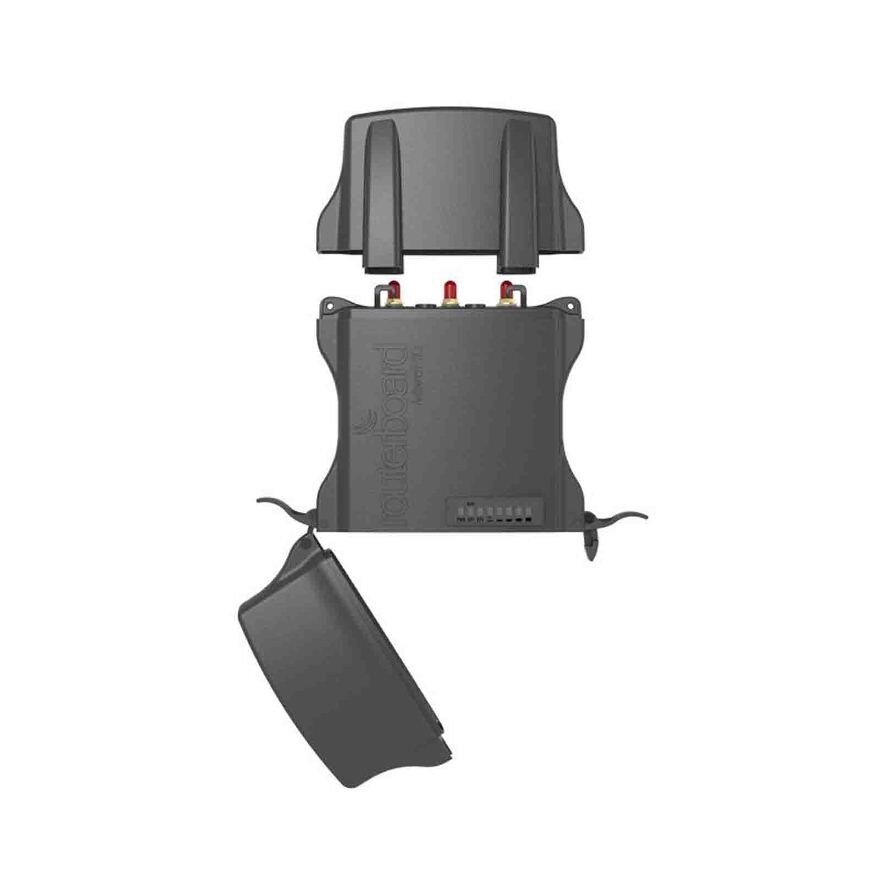

The enclosure has an IP rating of IP66 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!
Specifications
Specifications RBD23UGS-5HPacD2HnD-NM-us
Architecture | ARM 32 bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 716.8 MHz |
Dimensions | 143 x 247 x 48 mm |
License level | 4 |
Operating system | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | SPI flash |
Tested ambient temperature | -40°C .. +70°C |
Powering | |
Number of DC inputs | 2 (DC jack, PoE-IN) |
PoE in | 802.3 af/at |
Poe in input voltage | 24 - 57 V |
DC jack input voltage | 12 - 57 V |
Max power consumption | 28 W |
Max power consumption without attachments | 12 W |
Wireless | ||
2.4 GHz | 5 GHz | |
Max data rate | 300 Mbit/s | 866.7 Mbit/s |
Number of chains | 2 | 2 |
Connectors | 2 | |
Connector type | RP-SMA | RP-SMA |
Supported protocols | 802.11 b/g/n | 802.11 a/n/ac |
Interface model | IPQ-4019 | IPQ-4019 |
Wi-Fi generation | Wi-Fi 4 | Wi-Fi 5 |
Ethernet | |
Number of 1G Ethernet ports | 1 |
Fiber | |
SFP DDMI | Yes |
SFP ports | 1 |
Peripherals | |
Number of USB ports | 1 |
USB power reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
miniPCIe slots | 1 |
Number of SIM slots | 1 |
SIM slot type | Micro SIM |
Others | |
PCB temperature monitor | Yes |
Voltage monitor | Yes |
Certification & Approvals | |
Certification | FCC, IC, IP54 |
