MikroTik Flex-Guide Cable Assembly
- SKU: ACRPSMA
$8.73 $9.00
+ $10.50 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

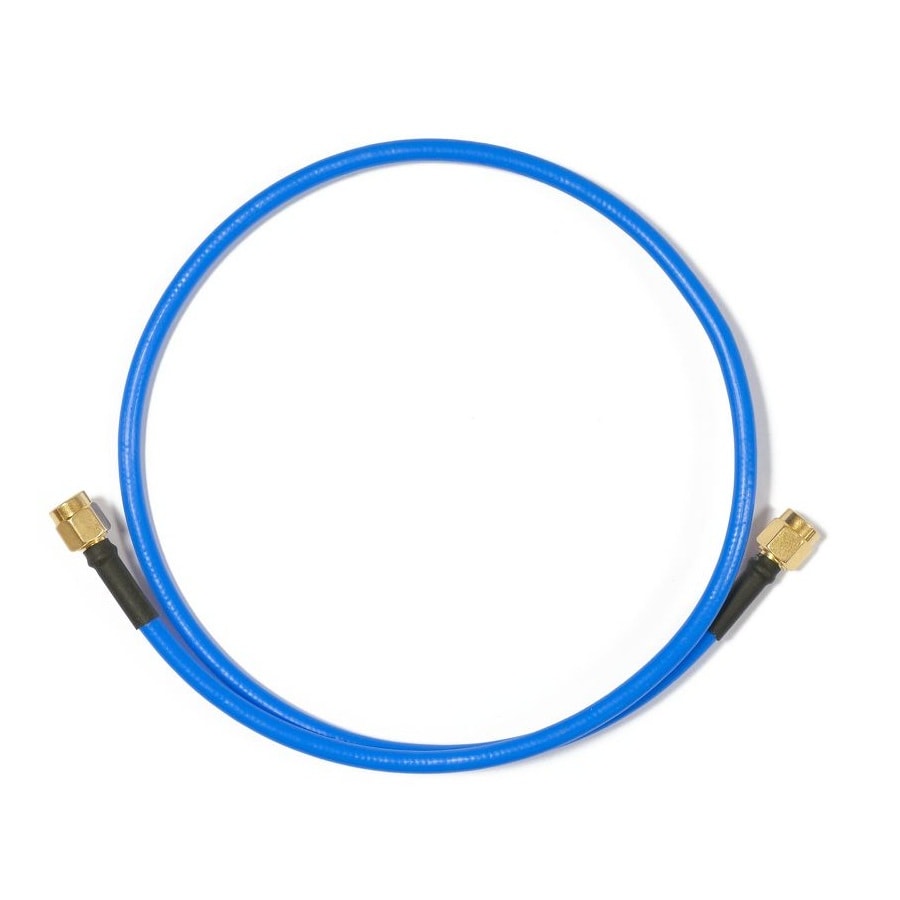

ISP Supplies supplies the MikroTik flex-guide RPSMA low loss cable assembly. A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.
The name of this cable comes from combining the words “flexible” and “{{subsidiary}}eguide”, to denote the high end features of this product.

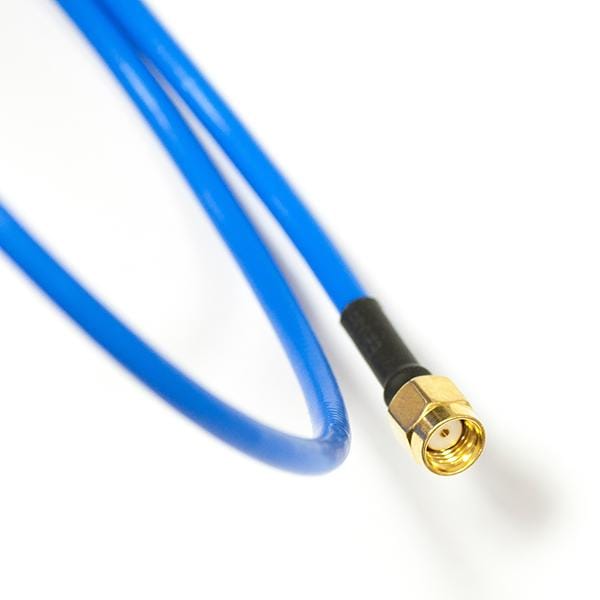

The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for MikroTik's BaseBox and other products with RPSMA connectors, and works with most antennas.
Specifications
Specifications ACRPSMA
| RPSMA | Soldered on both ends |
| Inner conductor | Silver plated copper |
| Frequency up to | 6 GHz |
| Total signal loss at 6GHz | 0.59 (Includes connectors. See chart for details) |
| Matching Better than | -20dB |
| Suited for | outdoor use |
| Cable length | 500mm (19.7″) |
| Outer diameter | 4.2mm (0.2″) |
| Min. bending radius static | 8mm (0.3″) |
| Min. bending radius repeated | 40mm (1.6″) |
| Operating temperature | -55 to 125C |
