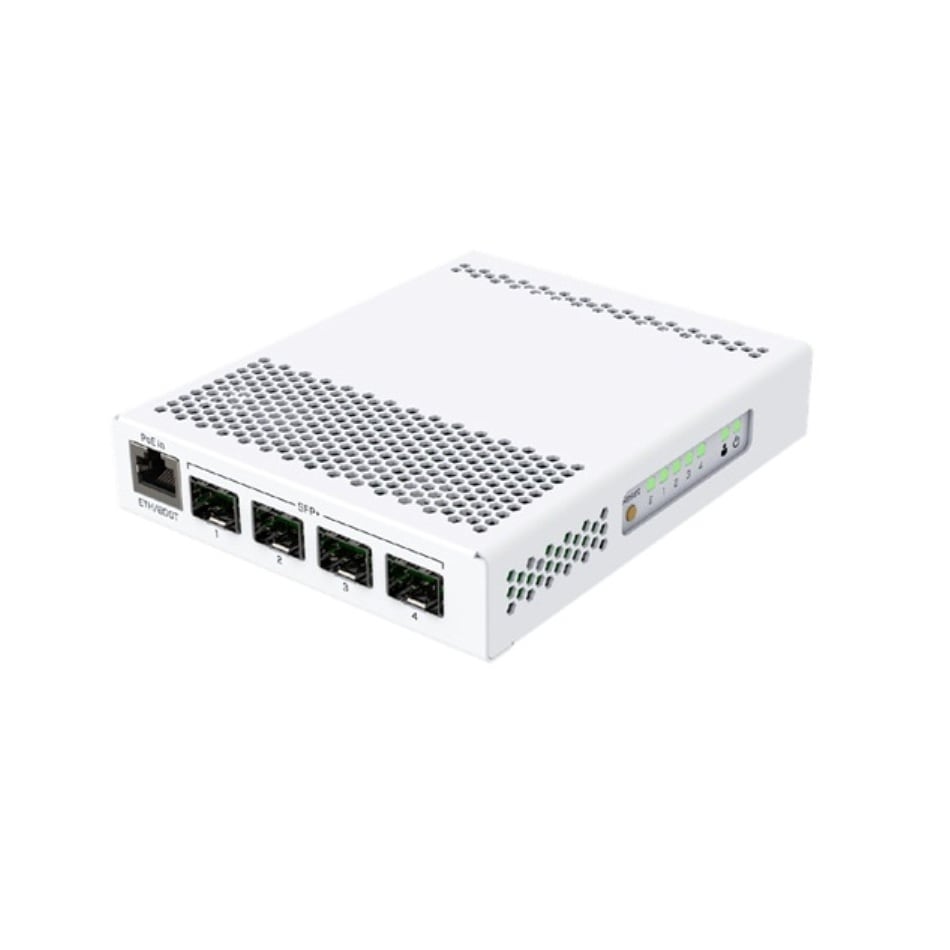

MikroTik CRS305 Switch (4 SFP+ Ports)
- SKU: CRS305-1G-4S+IN
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik CRS305 Switch (4 SFP+ Ports) is a powerful and compact switch with four SFP+ ports, supporting up to 10 Gbit per port. It also includes a 1 Gbit copper ethernet port for management access or regular traffic forwarding, along with two DC jacks for power redundancy. Designed with a sleek metallic case and fanless operation, it ensures silent and efficient performance.
With the "Dual boot" feature, you can choose between two operating systems - RouterOS or SwOS. SwOS offers a simplified operating system with switch-specific features, while RouterOS provides advanced routing and Layer 3 capabilities. You can easily switch between the operating systems through the RouterBOOT loader settings. Despite its powerful features, the CRS305 offers a disruptive price, delivering the best price/performance ratio in the market.
Product Applications- Home Networking
- Small Office
- Non-blocking switching architecture
- High-performance Marvell switch-chip
- Passive PoE input option (PoE-in)
- Fanless design for silent operation
- Dual power supply redundancy
- Four 10G SFP+ Ports
- One Gigabit Ethernet Port
- Two DC Jacks
- 512MB RAM
- 98DX3236 CPU
- Metal Enclosure
- -40°C to 70°C Operating Temperature
- 141 x 115 x 28 mm
- MikroTik CRS305 Switch (4 SFP+ Ports)
- Power Adapter 24V 0.8A
Specifications
Specifications CRS305-1G-4S+IN
| CPU | 98DX3236A1 800 MHz |
| RAM | 512 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| Switch chip model | 98DX3236A1 |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ cages | 4 |
| Operating system | SwOS / RouterOS (Dual boot) |
| PoE in | Yes |
| Supported input voltage | 12 - 57 V (DC jack and PoE in) |
| Number of DC jacks | 2 |
| Dimensions | 141 x 115 x 28 mm |
| Operating temperature | -40°C .. +70°C tested |
| Max power consumption | 12 W |
| License level | 5 |
