MikroTik netPower 15FR Outdoor Switch 18-Port
- SKU: CRS318-1Fi-15Fr-2S-OUT
$163.93 $169.00
+ $8.55 Tariff
Product Information
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch aims to bring the speed and versatility of fiber networking while using the advantages of Ethernet.
You don’t have to worry about power options in the attic or the utility room - netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage applied to the unit.

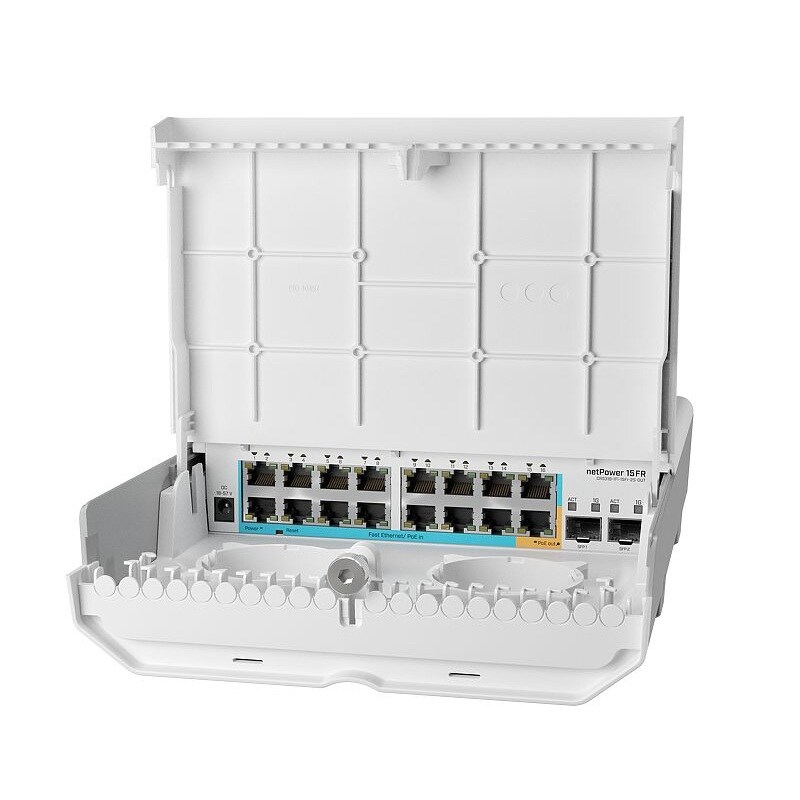

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments.
Product Features- DC power connector 18V - 57V
- LED indicating a power state of the device
- Fast Ethernet 100Mbit/s
- 15 Ethernet ports accepting PoE-in. One Ethernet port delivering PoE-out
- 2x 1G SFP ports
- Hose clamp 2
- K-66 fastening set
- DC to Terminal block adapter
Specifications
Specifications CRS318-1Fi-15Fr-2S-OUT
| Architecture | ARM 32bit |
| CPU | 98DX224S |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 304 x 212 x 71 mm |
| License level | 5 |
| Operating System | SwOS / RouterOS (Dual boot) |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether15 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max out per port output (input > 30 V) | 0.5 A |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 0.75 A |
| Max total out (A) | 0.75 A |
| Max power consumption | 29 W |
| Max power consumption without attachments | 10 W |
| Ethernet | |
| 10/100 Ethernet ports | 16 |
| Fiber | |
| SFP ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
