MikroTik Cloud Smart Switch with 8x GbE PoE-out / 2x 10GB SFP+

(0)No Reviews yet
  • SKU: CSS610-8P-2S+IN
$222.13 $229.00
  • Manufacturer: MikroTik
  • Data Sheet: Download

11 In Stock

11 in stock
Illinois - West Chicago
11 In stock

Product Information

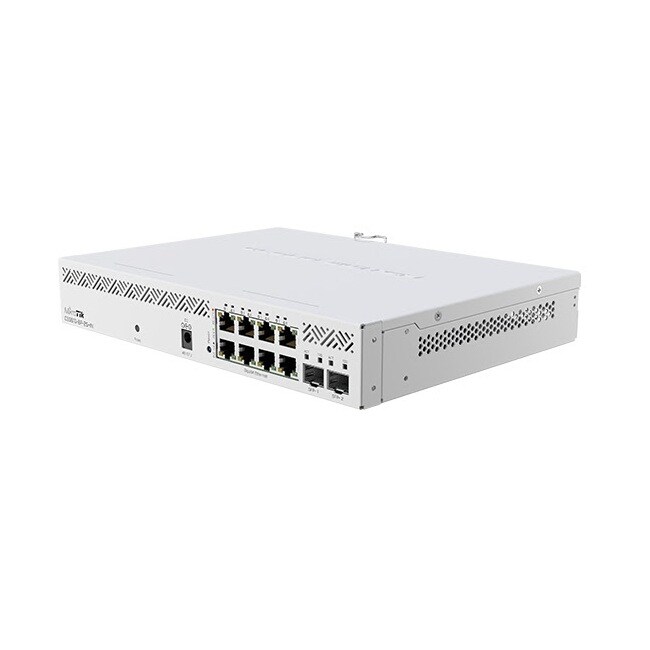

The CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It fits seamlessly into a wide range of environments, from home networks and small offices to hotels and call centers, offering exceptional scalability potential at a great price point.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out. This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.The real blessing is the combination of SFP+ and PoE-out Ethernet ports. CSS610 has an impressive total PoE-out budget of 140W, so you can use even in the most intense scenarios.

Product Features

  • 56GB switching capacity
  • 2x 10GB SFP+ ports
  • 8x Gigabit PoE-out Ethernet ports
  • Can be configured from your web browser
  • Port-to-Port forwarding
  • MAC filtering and VLANS
  • Traffic Mirroring

Product Includes

  • US power cord
  • Fastening set
  • Rack ears

Specifications

Specifications

Number of 1G Ethernet ports8
Number of 10G SFP+ ports2
Switch chip model88E6193X
Dimensions272 x 216 x 50 mm
10.70 x 8.50 x 1.96 in
Operating temparature-40°C to +70°C
Powering
Number of DC inputs1
DC jack input Voltage48-57 V
Max power consumption without attachments12 W
Max power consumption162 W
Number of AC inputs1
Nominal voltage54 V
Nominal current2.8 A
AC input range100-240 V
Max power consumption (without attachments)12 W
Max power consumption162 W
PoE-out802.3af/at
Smart PoEController
PoE-out portsEther1-Ether8, max out per port output (input < 30 V): 1000 mA, max out per port output (input > 30 V): 625 mA
Total output power140 W
