Product Information
Product Features
- 4x Gigabit Ethernet ports
- NAND Storage
- 2.4GHz GEN6 Wireless
- 256MB RAM
- 4.3dBi Antenna
- RouterOS V7
- Modern ARM CPU

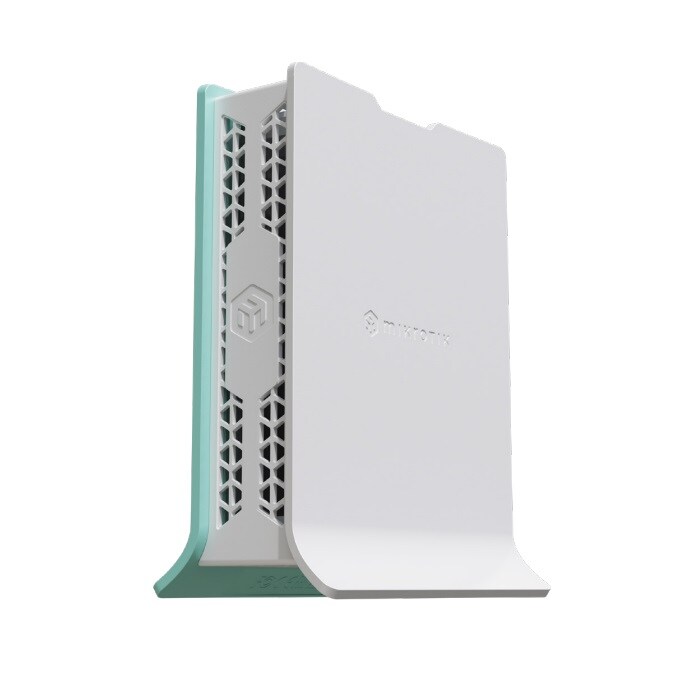

- MikroTik hAP ax lite
- 5V 2.4A 12W USB power adapter
Specifications
Specifications L41G-2axD
| Dimensions | 124 x 100 x 54 mm 4.88" x 3.93" x 2.12" |
| Weight | |
| CPU | Dual-Core IPQ-5010 1 GHz |
| CPU architecture | ARM 64bit (RouterOS 32bit) |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 4 |
| Switch chip model | MT7531BE |
| Wireless band | 2.4 GHz |
| Wireless interface model | IPQ-5010 |
| Wireless | 802.11b/g/n/ax dual-chain |
| Wireless antenna max gain | 4.3 dBi |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 1 USB type C |
| Min voltage | 5 V |
| Max voltage | 5 V |
| Max current at Min voltage | 1.54 A |
| Max current at Max voltage | 1.54 A |
| Power adapter nominal voltage | 5 V |
| Power adapter nominal current | 2.4 A |
| Max power consumption | 8 W |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -100 |
| 6MBit/s | 22 | -95 |
| 54MBit/s | 18 | -77 |
| MCS0 | 22 | -95 |
| MCS7 | 17 | -75 |
| MCS9 | 16 | -69 |
| MCS11 | 15 | -61 |
