Product Information

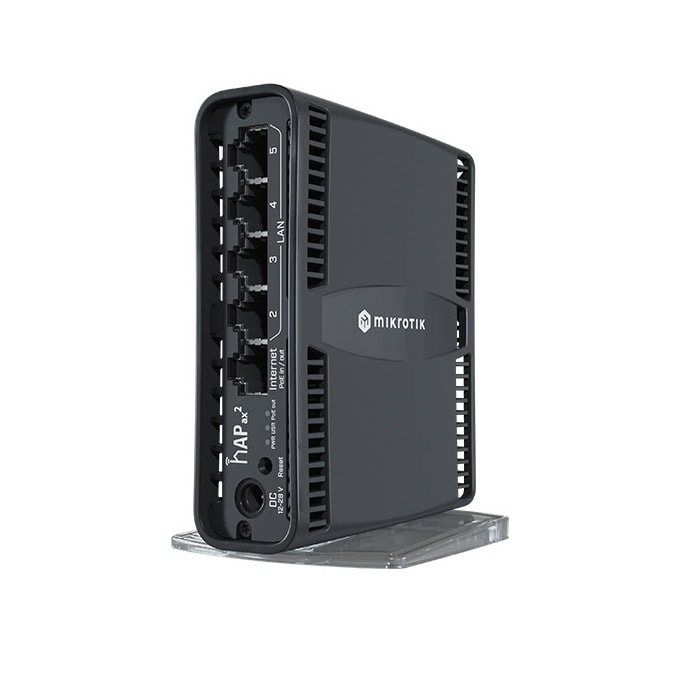

It’s time to supercharge your home network with the Generation 6 wireless network and addition to the beloved hAP series. hAP ax2 has everything you might need in a primary home access point, and more. Forget endless reviews and comparisons - this is the perfect device for 99% of homes.
Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4 - 4.5dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5GHz and up to 90% higher speed in the 2.4GHz spectrum!
The modern quad-core CPU running at 864MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before. Like the previous models, hAP ax2 can be mounted vertically, horizontally, or even on the wall without sacrificing the strong signal.
The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, and PoE-out on Ether2. That means SXT can power devices, or BE powered by other devices, making your cable management so much easier!
Product Features
- Powerful Quad-Core ARM CPU
- 802.11ax and Wave2
- Strong dual-band, dual-chain wireless (4 - 4.5dbi)
- 5x Gigabit Ethernet ports
- PoE-out
- Different mounting options
- WPA3
Product Includes
- 24V 1.2A Power Adapter (US Plug)
- hAP case base
- K-47 wall mount set
Specifications
Specifications C52iG-5HaxD2HaxD-TC-US
CPU | Quad-Core IPQ-6010 864 MHz |
CPU architecture | ARM 64bit |
Size of RAM | 1 GB |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 5 |
Number of 1G Ethernet ports with PoE-out | 1 |
Switch chip model | IPQ-6010 |
Wireless interface model | QCN-5052 |
Wireless | 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain |
Wireless antenna max gain | 2.4 GHz (4.5 dBi), 5 GHz (4 dBi) |
Dimensions | 120 x 101 x 37 mm (4.72" x 3.97" x 1.45") |
Operating system | RouterOS, License level 4 |
Operating temperature | -40°C to +50°C |
Powering | |
Number of DC inputs | 2 (PoE-in, DC jack) |
PoE-in input Voltage | 18-28 V |
DC jack input Voltage | 12-28 V |
PoE-out | Passive PoE Ether1, max out per port output (input < 30 V): 600mA |
Max total out | 0.6 A |
Total output power | 16.8 W |
Power adapter nominal voltage | 24 V |
Power adapter nominal current | 1.2 A |
Max power consumption (without attachments) | 12 W |
Max power consumption | 27 W |
Wireless specifications | ||
Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
1MBit/s | 22 | -100 |
11MBit/s | 22 | -94 |
6MBit/s | 24 | -96 |
54MBit/s | 22 | -80 |
MCS0 | 24 | -96 |
MCS7 | 21 | -75 |
MCS9 | 19 | -70 |
MCS11 | 17 | -67 |
Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
6MBit/s | 23 | -96 |
54MBit/s | 20 | -80 |
MCS0 | 22 | -96 |
MCS7 | 19 | -75 |
MCS9 | 17 | -70 |
MCS11 | 15 | -67 |
