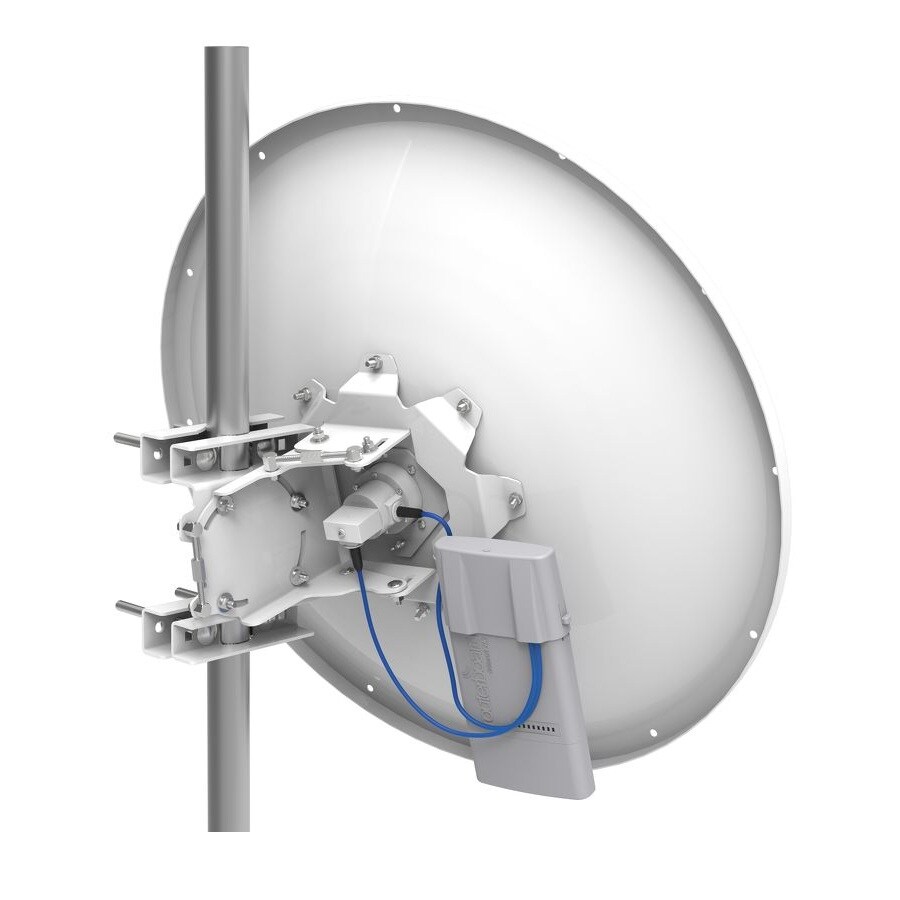

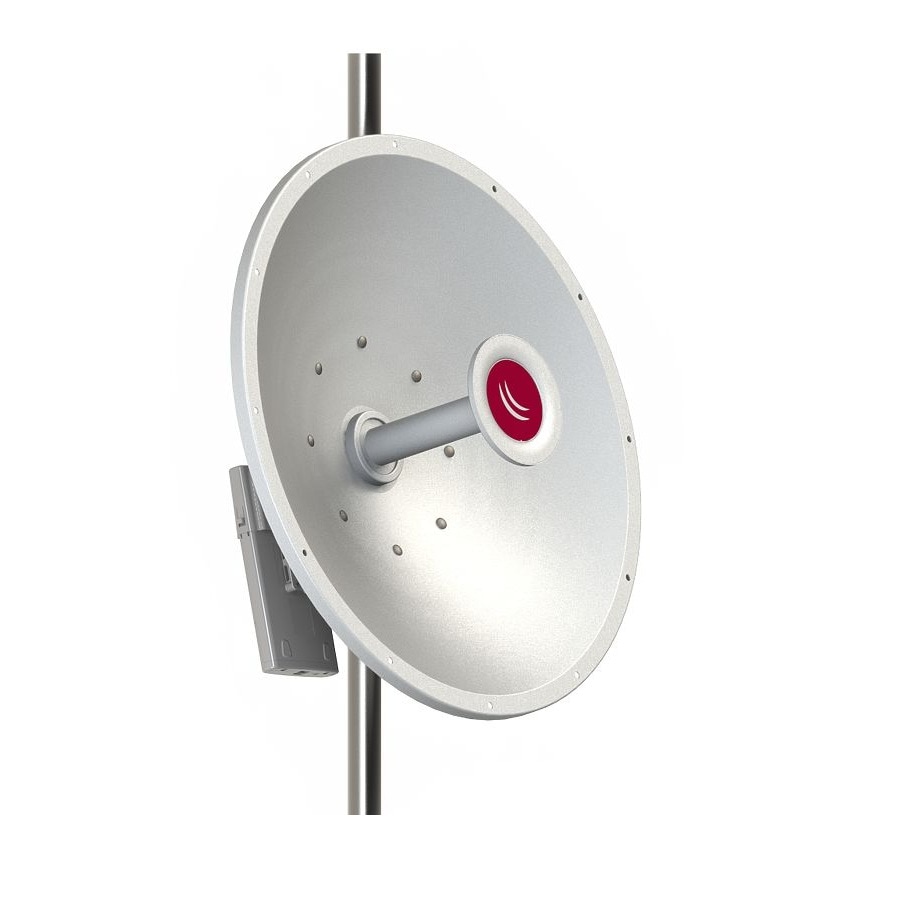

MikroTik mANT30 Parabolic Dish Antenna with Standard Type Mount
- SKU: MTAD-5G-30D3-4STD
$249.64 $675.00
Product Information
ISP Supplies supplies the MikroTik mANT30 parabolic dish antenna with standard type mount (4-pack) for 5GHz, 30dBi gain. All four antennas come in a single box.
Specifications
Specifications MTAD-5G-30D3-4STD
| Beamwidth | +/-2.5 deg |
| Connector | 2x RP-SMA Female (outside thread) |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 15 deg |
| Frequency Range | 4.7-5.875 GHz |
| Front-to-Back Ratio | >30 dB |
| Impedance | 50 ohms |
| Operating Temperature | -50°C to 80°C(-49°F to 158°F) |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 8.4 kg (18,5) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Port to Port Isolation | >40dB min |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Weight | 5.7kg (12.6 lbs) |
| Wind Load (125 mph) | 181.4kg (400 lbs) |
| Wind Survivability | 201kph (125mph) |
Replacement Item
MTAD-5G-30D3-4PAMikroTik mANT30 Parabolic Dish Antenna for 5GHz 30dBi Gain (4-Pack)
