MikroTik NetMetal 5 Dual Chain 5GHz Integrated 802.11a/n/ac AP / Backbone / CPE (US)
- SKU: RB922UAGS-5HPacD-NM-US
Product Information
ISP Supplies supplies the MikroTik NetMetal 5 dual chain 5GHz integrated 802.11a/n/ac AP/Backbone/CPE. This NetMetal version is equipped with a miniPCI-express slot, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

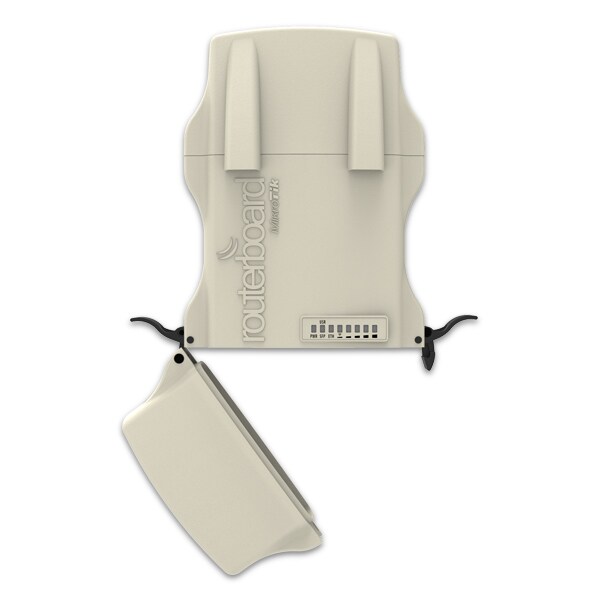

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP54). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
This version, RB922UAGS-5HPacD-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
Specifications RB922UAGS-5HPacD-NM-US
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA9882 |
| Number of USB ports | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V - 30 V |
| PCB temperature monitor | Yes |
| Dimensions | 143x247x48mm (PCB) |
| Operating System | RouterOS |
| Max Power consumption | 19W |
| License level | 4 |
| CPU | QCA9557 |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage size | 128 MB |
| Storage type | NAND |
