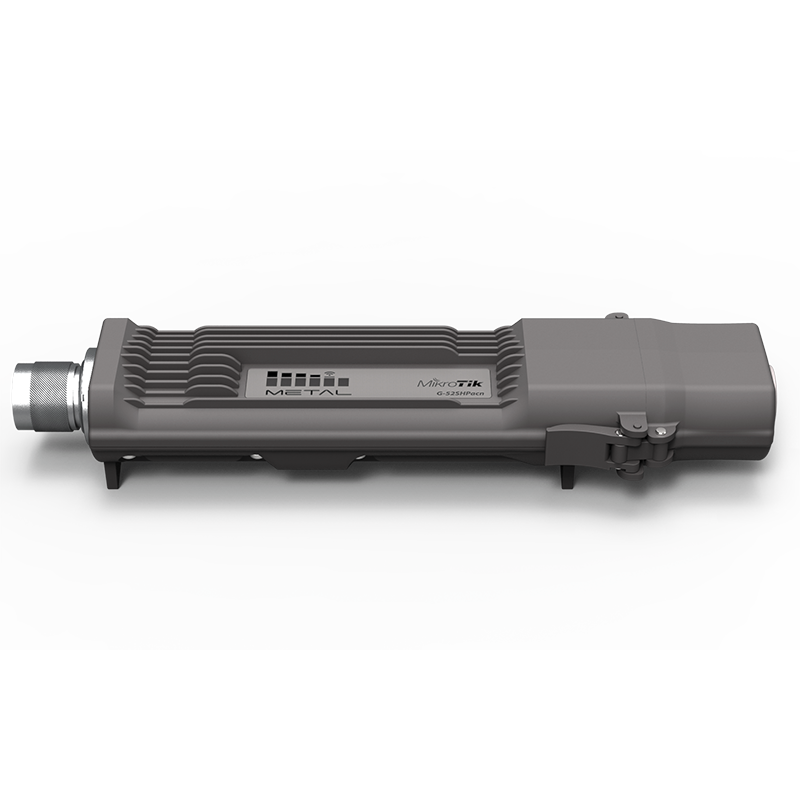

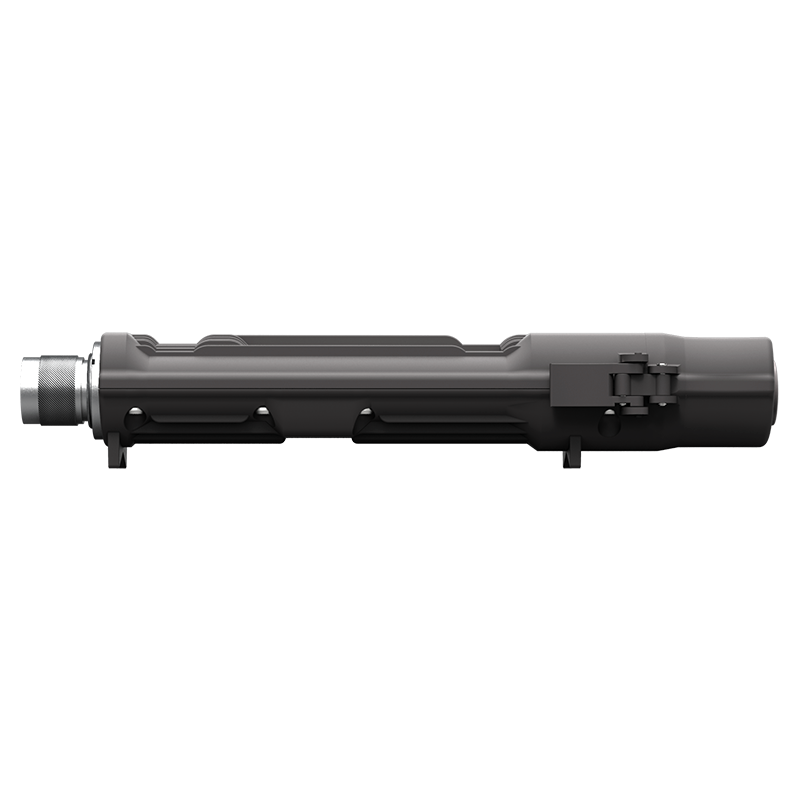

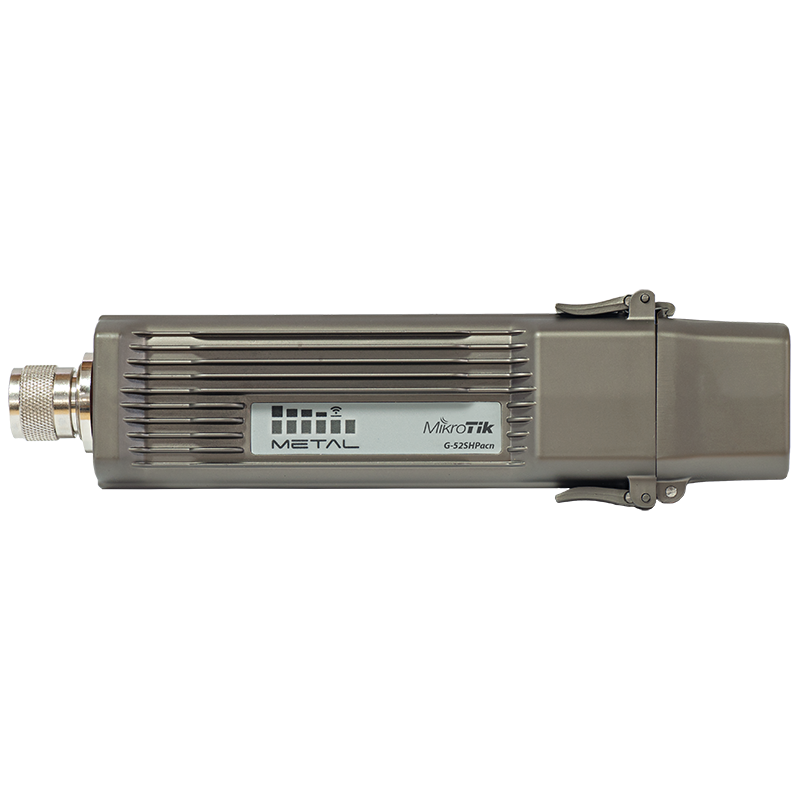

MikroTik Metal 52 AC Dual Band AP 2.4GHz / 5GHz (US)
- SKU: RBMetalG-52SHPacn-US
$115.43 $119.00
Product Information
Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).
This version, RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Product Includes- 24V 0.8A Power Adapter (U.S. Plug)
- Gigabit PoE Injector
- Angled N Connector
- 2x Metal Rings
Specifications
Specifications RBMetalG-52SHPacn-US
| CPU | QCA9556 |
| CPU nominal frequency | 720 MHz |
| Size of RAM | 64 MB |
| Memory type | Flash |
| Memory size | 16 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Chains | Single-chain |
| Wireless chip | QCA9889 |
| PoE in | Yes |
| Supported input voltage | 10 - 30 V |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Dimensions | 177 x 44 x 44 mm |
| Operating temperature | -40°C .. +70°C tested |
| License level | 4 |
| Operating System | RouterOS |
| Max power consumption | 11 W |
| Weight | Package: 778 g; Unit: 300 g |
| Wireless | 5 GHz | 2.4 GHz |
| Operating frequency | International 5150 - 5875MHz USA 5170 - 5250 MHz 5725 - 5835 MHz | International 2412 - 2484 MHz USA 2412 - 2462 MHz |
| Protocols | 802.11a/n/ac | 802.11b/g/n |
| Wireless specifications | ||
| 5 GHz | ||
| RATE | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 31 | -97 |
| 11MBit/s | 31 | -91 |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 28 | -77 |
| MCS0 | 31 | -93 |
| MCS7 | 27 | -72 |
| 2.4 GHz | ||
| RATE | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -93 |
| MCS7 | 26 | -74 |
| MCS9 | 22 | -69 |
