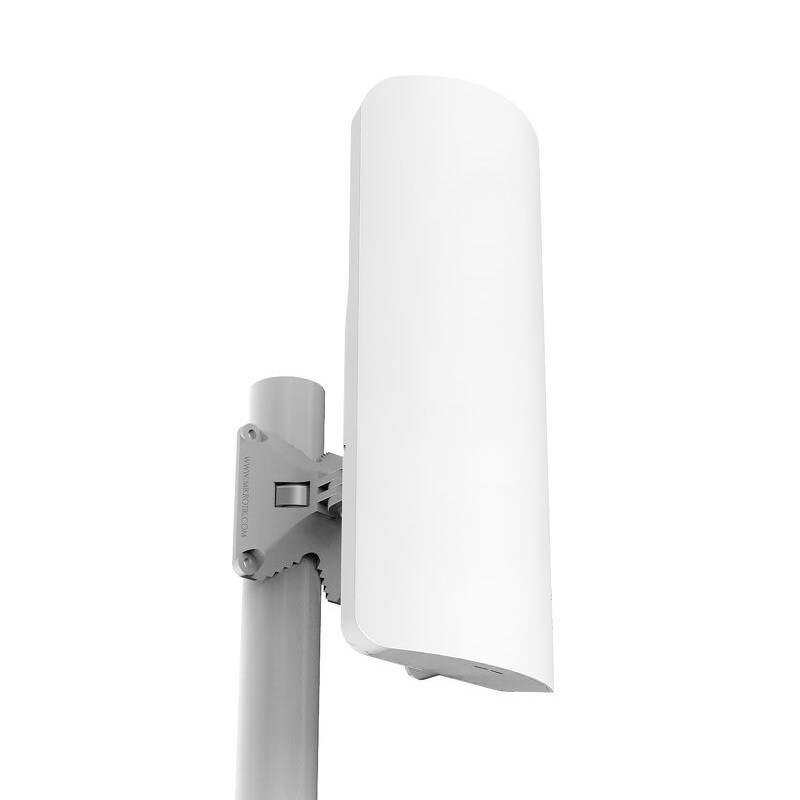

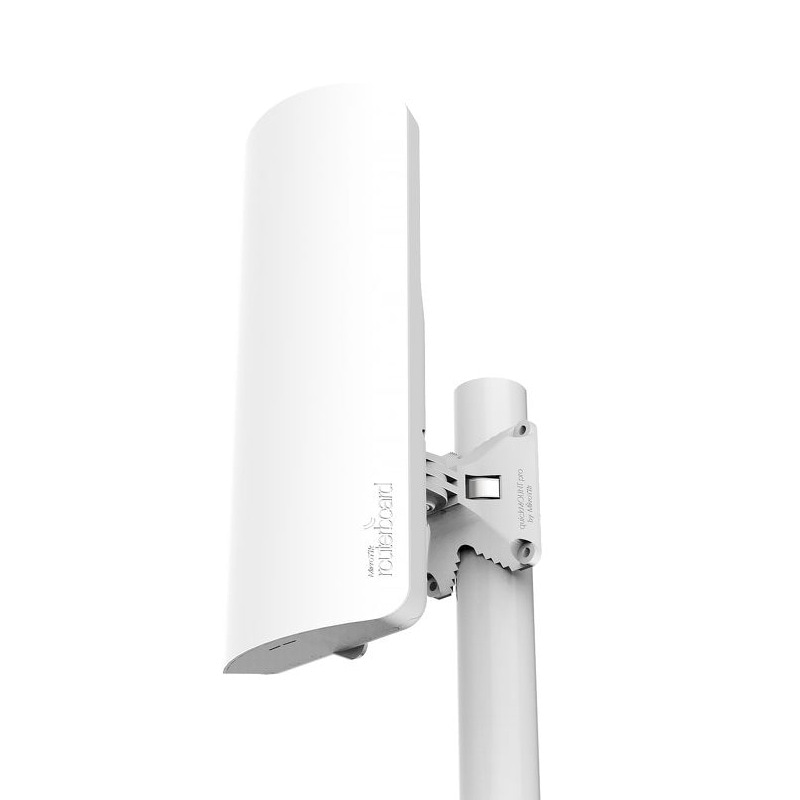

MikroTik mANTBox 15s 5GHz, 120 Degree, 15dBi Dual Polarized Sector Integrated Antenna
- SKU: RB921GS-5HPacD-15S-US
$134.83 $139.00
Product Information
ISP Supplies supplies the MikroTik mANTBox 15s. The mANTBox is based on MikroTik's new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 15s comes with 15dBi 120 degree sector antenna.
This version, RB921GS-5HPacD-15S (International) supports 5150MHz-5875MHz range. (Specific frequency range can be limited by country regulations).
Specifications
Specifications RB921GS-5HPacD-15S-US
| Product Code | RB921GS-5HPacD-15S |
| CPU | Single core QCA9557 720 MHz |
| Size of RAM | 128 MB DDR2 300Mhz |
| Data Storage | 128 MB NAND |

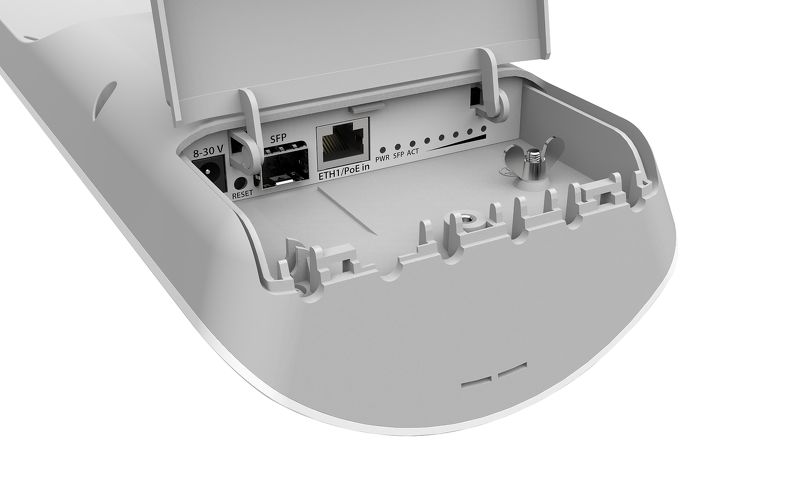

| 10/100/1000 Ethernet ports | 1 |
| SFP Cage | 1 |
| Wireless | Built-in 5 GHz 802.11ac, dual-chain |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Power input | jack: 8-30 V DC, PoE in: 8-30 V DC |
| Power consumption | 13W |
| LEDs | 8 |
| Beeper | Yes |
| Operating System | MikroTik RouterOS, Level 4 license |
| Antenna Gain | 15 dBi |
| Frequency Range | 5.17 - 5.825 GHz |
| Polarization | Vertical and horizontal |
| 3DB Beamwidth - Azimuth | 120 deg |
| 3DB Beamwidth - Elevation | 10 deg |
| VSWR | 1.43 typical, 1.8 max |
| Por-to-Port Isolation | >40 dB min |
| Front-to-Back ratio | >30 |
| Cross Polarization | >30 |
| Weight | Package: 1.35 Kg Unit: 816g |
| Dimensions | 140 x 348 x 82 mm |
Wireless Specs
| RATE | Tx (dBm) |
| 6MBit/s | 31 |
| 54MBit/s | 27 |
| MCS0 | 30 |
| MCS7 | 27 |
| MCS9 | 22 |
