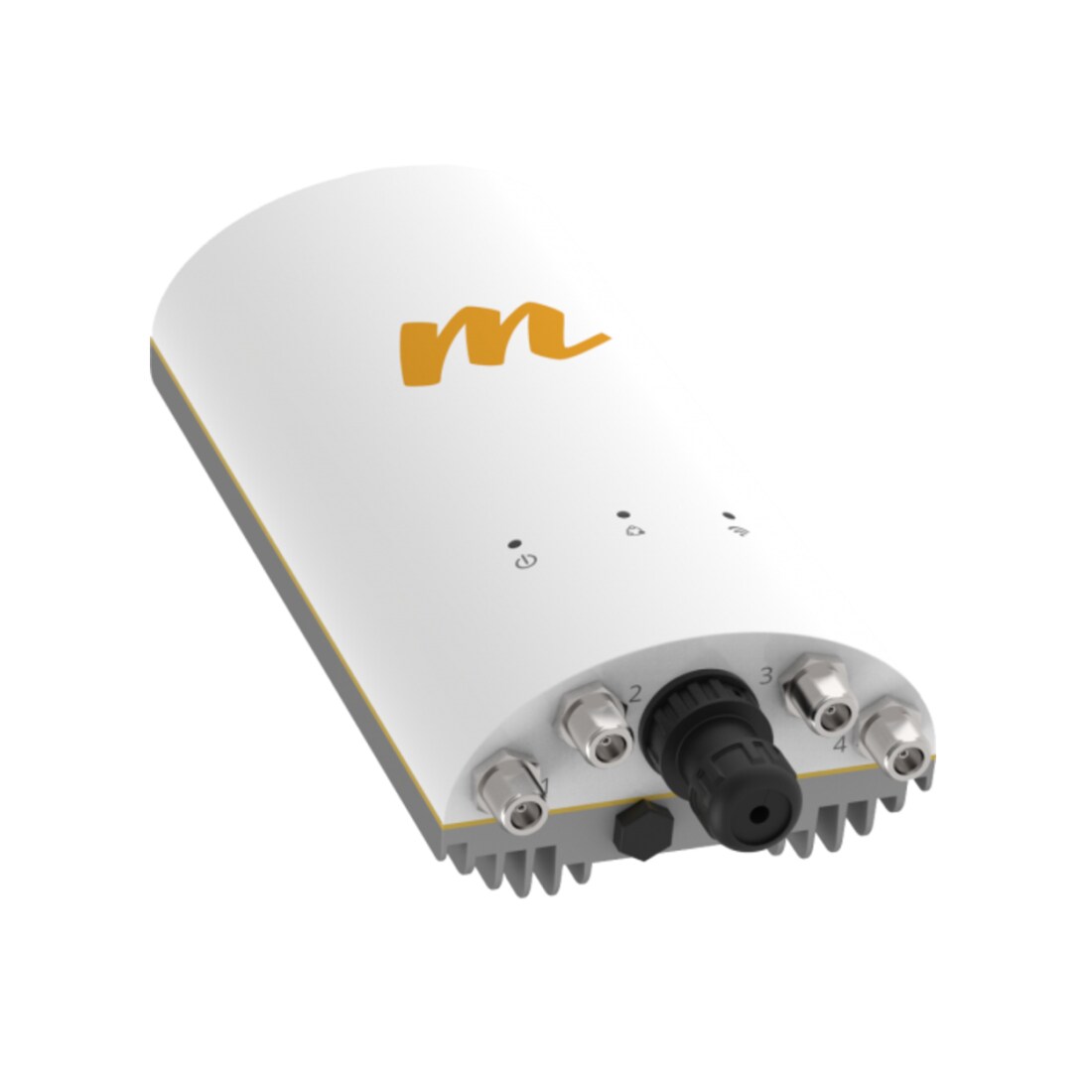

Mimosa A5c PTMP Connectorized Access Point, 4.9 - 6.2GHz
- SKU: 100-00037-01
$713.00 $715.00
Product Information
With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse, the connectorized Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network. The A5c is well suited for long-range pole and tower multipoint applications, access point collocation (GPS Sync) and Municipal and Rural Licensed Public Safety multipoint (4.9GHz).
Product Features- Increased Capacity at Each Site
- Network Scalability Perfected
- Ultra-High Client Capacity
- Fiber Speeds
- Add Subscribers with Ease
Specifications
Specifications A5C
Performance
| Max Throughput | Up to 1.0 Gbps IP (1.7 Gbps PHY) |
| Client Capacity | 100 Clients |
| Low Latency | 8 ms |
| Wireless Protocols | Wi-Fi Interop Mimosa GPS Sync (TDMA)** |
Radio
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth* | 20/40/80 MHz channels Tunable in 5 MHz increments for GPS Sync Tunable to standard WiFi Channels for WiFi Interop |
| Frequency Range | GPS Sync: 4900-6400 MHz WiFi Interop: 5170-5835 MHz Restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
Power
| Max Powe Consumptionr | 25 W |
| System Power Method | 802.3at compliant |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
Physical
| Dimensions | Height: 300 mm (11.81") Width: 151 mm (12.40") Depth: 85 mm (3.35") |
| Weight | 1.75 kg (3.86 lbs) |
| Enclosure Characteristics | Outdoor UV-stabilized engineered polymer with integrated mounting panel |
| Connector Type | Female Type N (x4) |
| Mounting | Dual pole strap mount and slip on mount for comparable antennas |
Environmental
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
Features
| Gigabit Ethernet | 10/100/1000BASE-T |
| Multi-User MIMO** | Device leverages beamforming to transmit to multiple clients simultaneously |
| Synchronization** | GPS + GLONASS allows for network-wide sync and interference avoidance |
| Collocation** | 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse |
| Network Processing | Advanced AP control for capacity and subscriber management |
| Management Services | Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS, HTML 5-based Web UI, 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | WPA2 + Mimosa 802.1x RADIUS Management VLAN support |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Traffic Shaping | Per CPE UL/DL commit and maximum rate shaping |
| Access Control List | Permit, Deny, and Remark Layer 2 and Layer 3 traffic flows |
Regulatory + Compliance
| Approvals* | FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
