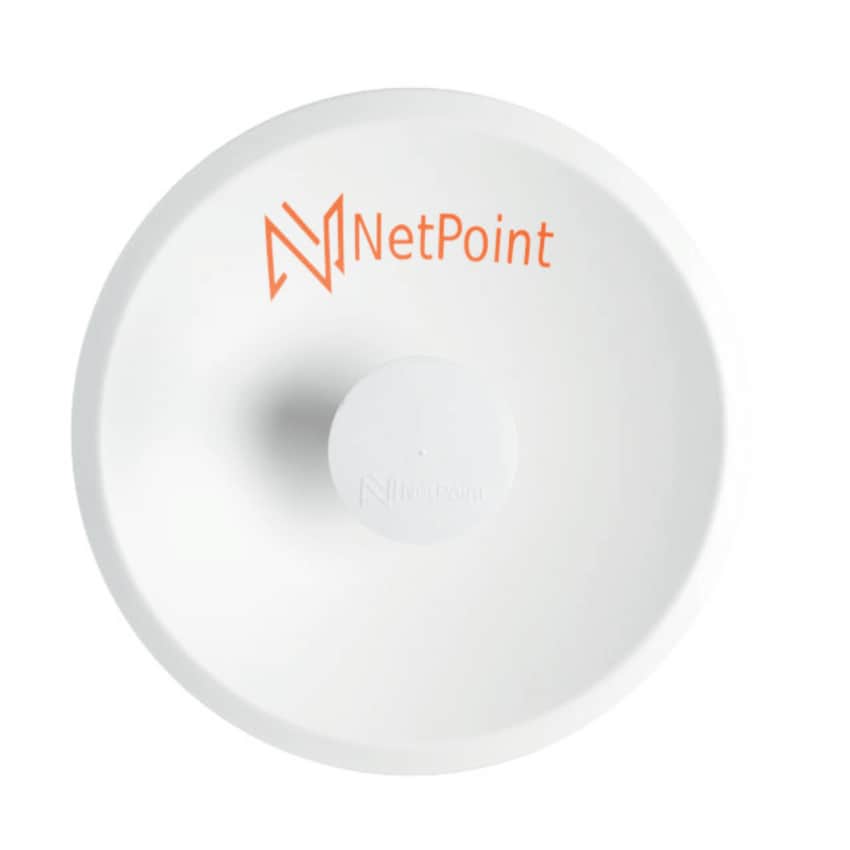

NetPoint 1FT 4.9 - 6.4GHz Twist-On Parabolic Antenna 2-Pack
- SKU: NPPRO5-S-DP-1FT
$296.25
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
The NetPoint 4.9 - 6.4GHz twist-on parabolic antennas are 1.3FT in diameter and have a gain of 27dBi.
These antennas are compatible with the Mimosa C5x and B5x radios and are sold in a 2-pack.
Product Features- Gain of up to 27dBi with low VSWR and high port isolation across the entire 4.9-6.4GHz band
- One antenna that covers 5 and 6Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type Twist-on
Product Includes
- 2x NPPRO5-S-DP-1FT Parabolic Antennas
Specifications
Specifications
| Weight | 14 lbs |
| Dimensions (LxWxH) | 17” x 17” x 11” inches |
| Antenna type | Modular dish twist-on |
| Frequency | 4.9 - 6.4Ghz |
| Connector Type | Twist-on |
| Gain (dBi) | 25dBi for 4.9GHz, 26dBi for 5.4GHz, and 27dBi for 5.7GHz |
| VSWR HPOL | <2.0 |
| Beamwidth VPOL | > 8.2° |
| Beamwidth HPOL | < 8.0° |
| Radius F/B (dB) | 40dB |
| Polarization | Dual slant 45°Mechanical Specifications |
| Wind max survival speed (MPH) | 124 miles with Radome |
| Azimuth adjustment (°) | ±60° |
| Elevation adjustment (°) | ±15° |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 in 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
