Mimosa N5-X20 4.9 - 6.4GHz Modular Twist-On Antenna 2-Pack
- SKU: 100-00088
$76.00 $79.00
- Manufacturer: Mimosa
- Data Sheet: Download
Product Information

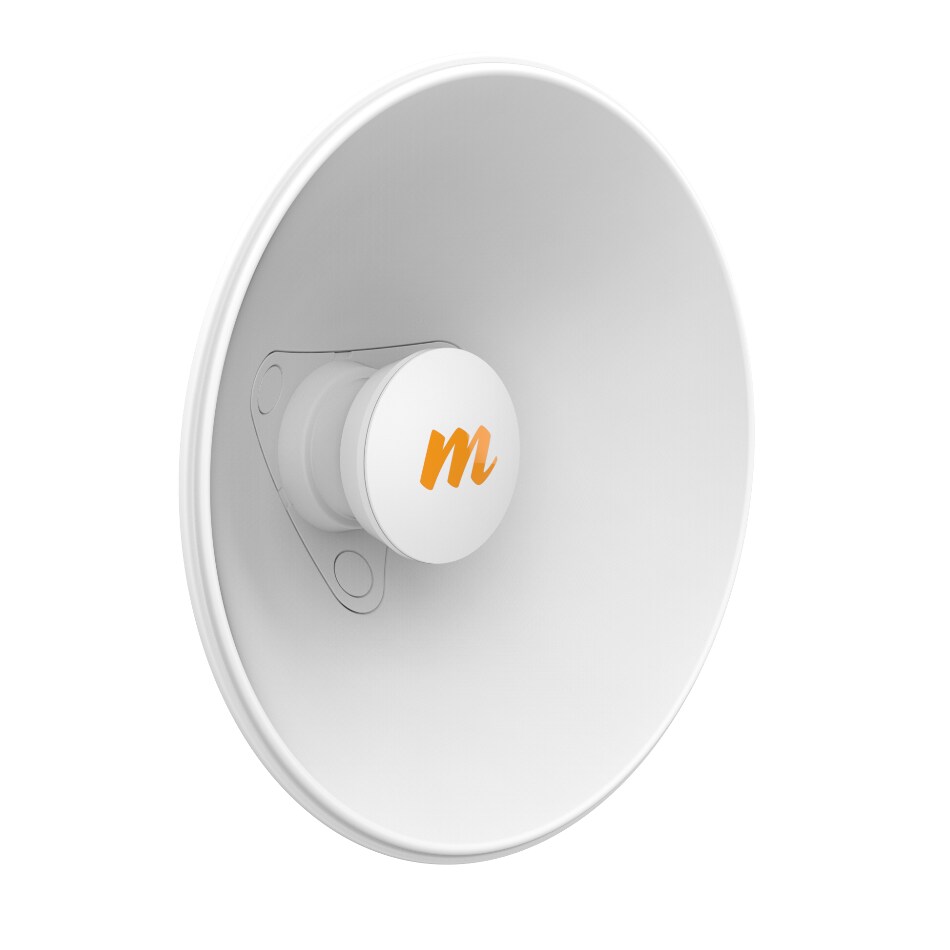

The Mimosa N5-X20 cassegrain high gain, modular, twist-on antenna increases the native 8dBi gain of the Mimosa C5x radio to 20dBi. Sold in a 2-Pack.
Product Applications- Broadband Service Provider
- Public Safety Networks
- Enterprise & Campus Connectivity
- Multipoint Distribution for Security
- Smart Cities & WiFi
- 20dBi gain
- 35dB Front-to-Back Ratio
- > 37dB Front-to-Side Ratio
- Diameter:270mm (10.63")
- Depth: 83mm (3.27")
- Weight: 0.77kg (1.7lbs)
- 2x Mimosa N5-X20 Dishes
- 2x Cassegrain Reflectors
- 6x Screws with Bolts
Specifications
Specifications Mimosa N5-X20
| Product | N5-X20 (dish) |
| Gain | 20 dBi |
| Polarization | Dual-slant 45º |
| Beamwidth, Symmetric (3 dB) | 12 dB |
| Front-to-Back Ratio (min) | 35 dB |
| Front-to-Side Ratio (min) | 37 dB |
| Weight of C5x + Antenna | TBD |
| Dimensions | Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”) |
| Mount | Mimosa N5-X twist-on |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | TBD |
| Max Throughput | PTP: 700 Mbps IP (866 PHY) (requires PTP feature key) PTMP: 500 Mbps IP (866 PHY) (requires PTMP speed feature key to go faster than 100BASE-T) |
| Wireless Protocols | Mimosa SRS; WiFi Interop |
| Modes | PTP Backhaul (requires feature key); PTMP Client |
| Radio | |
| MIMO and Modulation | 2x2:2 MIMO OFDM, up to 256 QAM |
| Bandwidth | 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode |
| Frequency Range | PTP/PTMP: 4900–6400 MHz (restricted by country of operation) |
| Max Output Power | 27 dBm |
| Sensitivity (MCS0) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 9.2 W average; 12.9 W max |
| System Power Method | Passive POE (24-56 VDC |
| PoE Power Supply | Passive POE compliant, 24-56 V Power over Ethernet supply (not included) |
| Physical | |
| Dimensions | Height: 175 mm (6.89”) Width: 70 mm (2.75”) Depth: 61 mm (2.40”) |
| Weight | 0.4 kg (0.89 lbs) |
| RF Connector Type | Mimosa N5-X twist-on |
| Enclosure Characteristics | Outdoor, die-cast aluminum, UV stabilized paint |
| Mounting | Dual attached pole mount straps |
| Grounding | Ground lug |
| Wind Survivability | 200 km/h (125 mph) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP55 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4,420 m (14,500’) max |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Regulatory and Compliance | |
| Approvals | FCC Part 15.405 and Part 90Y CE/ETSI |
| EMI/Safety | FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1 |
| WEEE/ROHS Compliance | Yes |
