Product Information

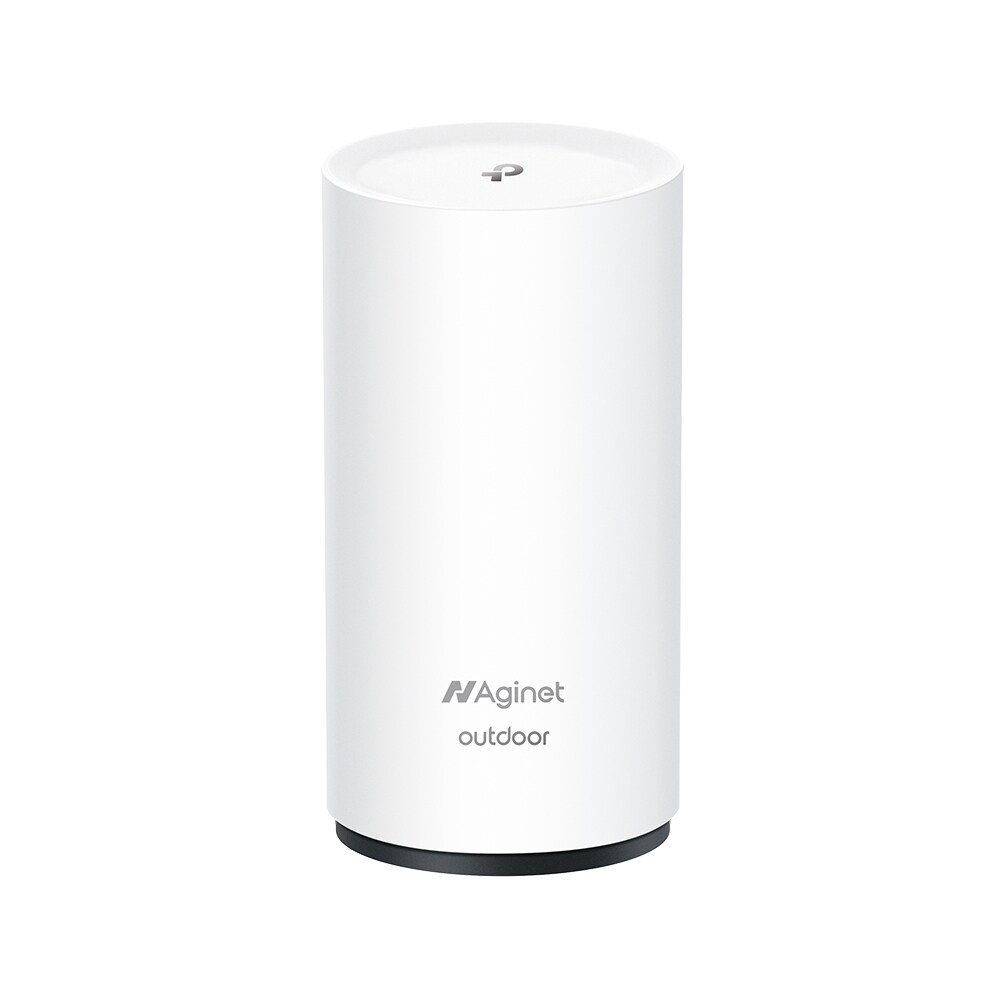

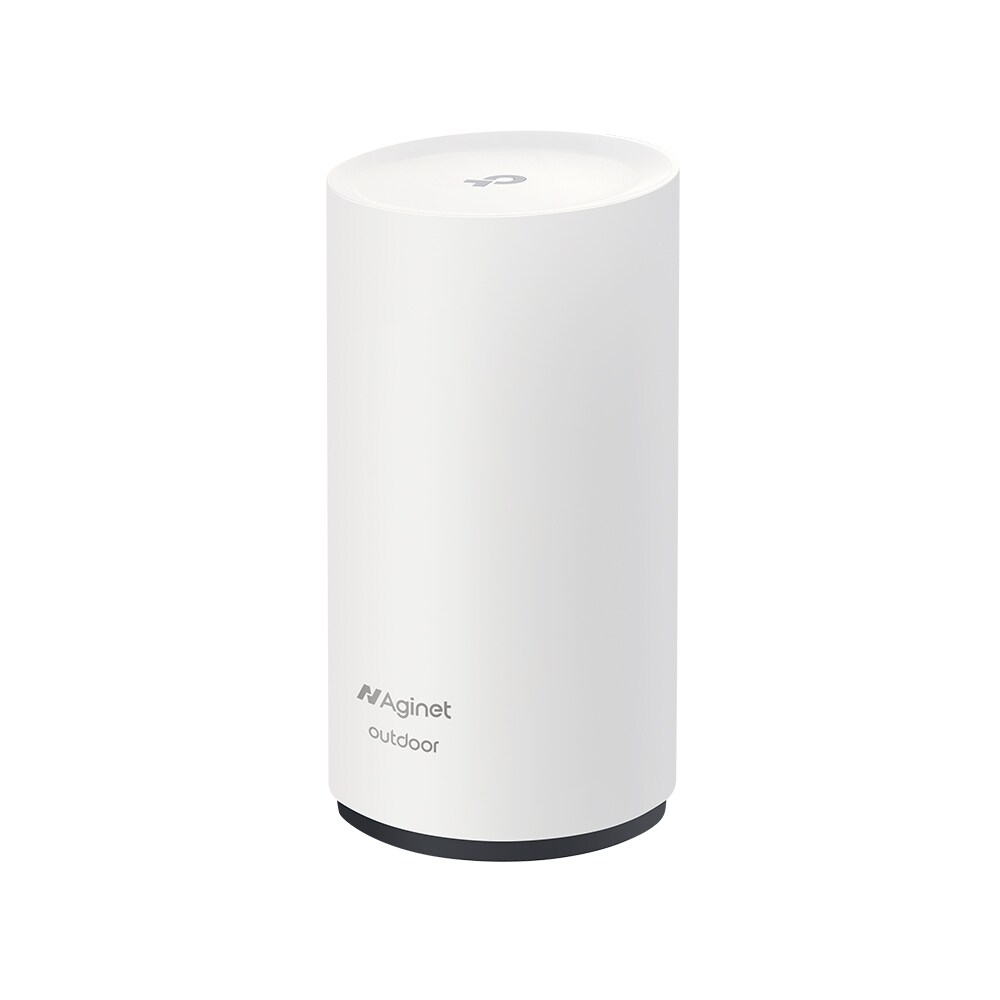

AX3000 Outdoor/Indoor Mesh WiFi 6 AP
Specifications
Specifications HX510-Outdoor
| Weight | 2 lbs |
| Dimensions (L x W x H) | 5 x 5 x 10 in |
| Interface | 3 × Gigabit Ports *Per Unit 1 Port supports WAN/LAN auto-sensing |
| Button | Reset Button WPS Button |
| External Power Supply | 12 V ⎓ 1.5 A |
| WIRELESS | |
| Wireless Standards | Wi-Fi 6 IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | AX3000 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps |
| Transmit Power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 Personal encryptions |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| SOFTWARE | |
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Local Management, TAUC Cloud Management |
| Firewall Security | SPI Firewall |
| Protocols | IPv4 IPv6 |
| Advanced Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule |
| Working Modes | Router Mode Access Point Mode |
| Smartphone/Tablet Requirements | Android 4.4 or later iOS 9.0 or later |
| Certifications | CE, FCC, Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED EasyMesh™ |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) |
| Storage Temperature | -40℃–60℃ (-40℉–140℉) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
