Product Information
Tarana's design for the G1 remote node combines the ease of mobile macro-cellular radio access network deployment with a simple network architecture common in fixed access.
The G1 platform includes compact base nodes (BN), each a single integrated package that includes antennas, PAs, several teraflops of digital signal processing, managed Ethernet switching, and 10G optical network interfaces) communicating with up to 256 similarly self-contained remote notes (RN), Tarana's customer premise equipment, per Base Node. Remote Nodes are powered over an Ethernet cable run into the structure they serve.
Product Features
- Dual carrier 2x40MHz
- 2x2 MIMO
- Up to 800Mbps aggregate throughput per link
- Full Tx/Rx digital beamforming with custom silicon integrated chip
- Auto antenna alignment
- PoE powered
What's in the box?

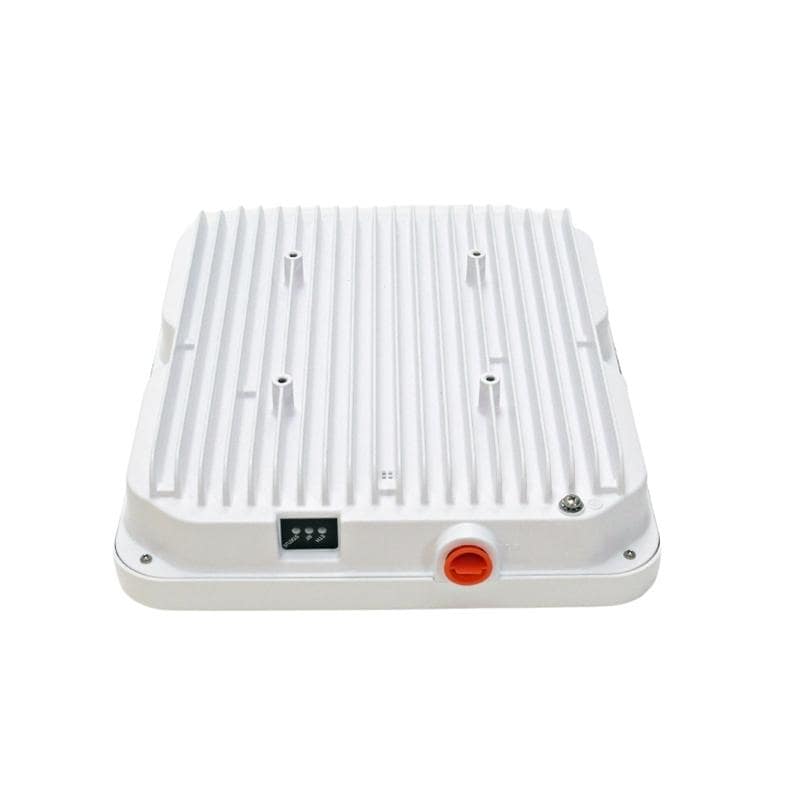

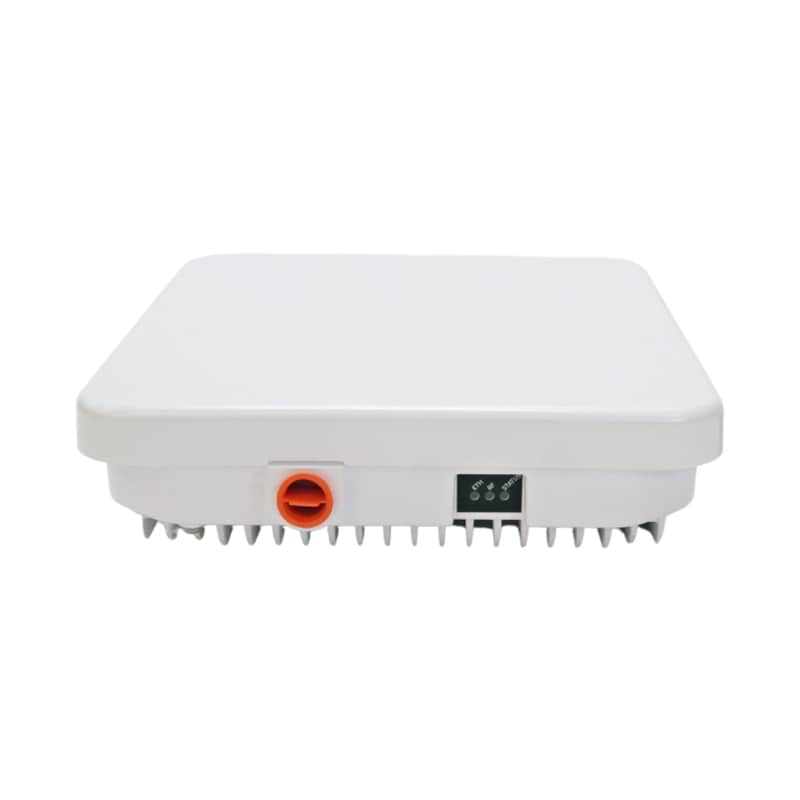

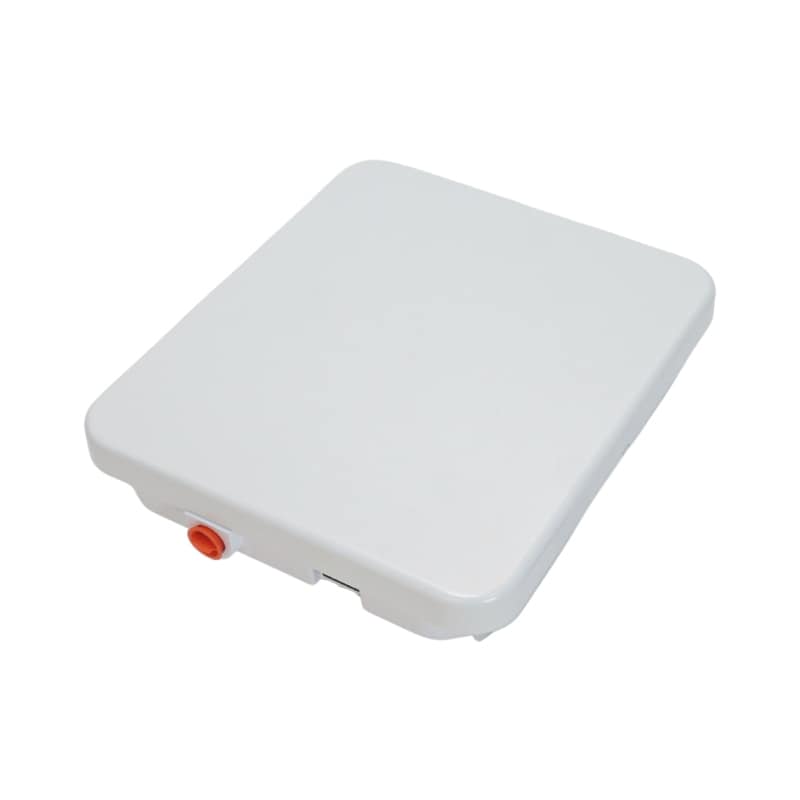

- Tarana G1 5.8GHz Remote Node (RN)
- Ethernet cable gland
What's sold separately?
- Tarana RN Mounting Kit (35-0128-001)
- Tarana PoE injector 40-60 VDC, 1.5A (44-0017-001)
- Tarana Power Cord - US (50-0012-001)
License Upgrades
- Perpetual
- Uncapped (25-0051-001)
- Software, Management and Support
- 1-Year (25-0056-001)
- 3-Year (25-0057-001)
- 5-Year (25-0058-001)
Specifications
Specifications
| Weight | 4.9 lbs |
| Dimensions (H x W x D) | 10.3 x 11.3 x 2.1 inches |
| Power consumption (typical at 55ºC) | 40 W |
| Power input | 48V 802.3bt PoE, Type 3, Part # 44-0027-001 (G1RN5AHB012) 48V Passive PoE Part # 44-0016-001 (G1-RN5ASI002, G1RN5ASI012) |
| Mounting | Band clamp for pole mount (1.5–2.5 inches OD); mount weights 1.2 lbs |
| Form factor | Outdoor, single enclosure with fully-integrated antenna, RF, and baseband |
| Antenna | Fully integrated |
| Interfaces | 1 Gbps Ethernet interface with PoE support, RJ45 pinout T568B |
| G1 radio network platform | Base node (BN) Remote node (RN) Tarana Cloud Suite (TCS) |
| Topology | Scheduled, concentrated multi-point |
| Duplexing | TDD |
| Downlink/uplink ratios (configurable network-wide) | Network profile 1 (up to 15 km range) g 4.5:1 Network profile 2 (up to 30 km range) g 4:1 Network profile 5 (up to 15 km range) g 2.67:1 Network profile 6 (up to 15 km range) g 1.75:1 |
| SLA profiles | Configurable per RN |
| Modulation | QPSK 1/2 to 256QAM 7.35/8 UL/DL |
| Spectral efficiency | 30 bps/Hz per BN, up to 90 bps/Hz per band, configuration dependent |
| Range (full rate, frequency dependent) | NLoS - Up to 3 km (varies depending on vertical asset height, frequency band, morphology, and target cell-edge data rate) LoS - Up to 30 km (varies depending on vertical asset height, frequency band, morphology, and target cell-edge data rate) |
| Recommended frequency reuse factor | Universal frequency reuse (k=1), enabled by advanced self-interference cancellation |
| Beamforming | Auto-convergent, retro directive |
| Interference management | Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC) |
| VLANs | Per BN or RN for user data, and management VLAN, Subscriber VLAN pass through |
| QoS | DSCP, VLAN 802.1p |
| Latency (one-way average | <5 ms |
| Max Ethernet MTU | 2048 bytes |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINNF-TS-0122 |
| Standards and safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Data plane security | RF Link Encryption AES-128 |
| Tarana Cloud Suite (TCS) | Scalable microservices based multi-tenant network management Zero-touch provisioning and control of radios with streaming telemetry Firmware and configuration management 24x7x365 KPI monitoring and management Fault management and historical events Network analytics SAS and AFC domain proxy Northbound Rest-API for customer and operator portal (B/OSS) |
| Operating temperature range | 40°C to 55°C (-40ºF to 131ºF) |
| Environmental rating | IP67 |
SMS License (1 year required per RN)
