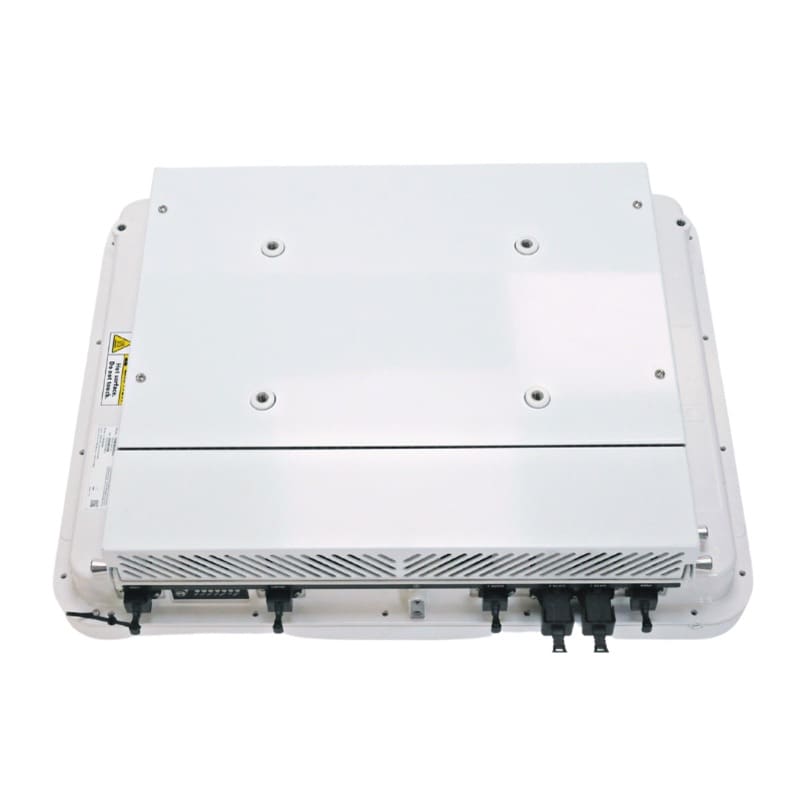

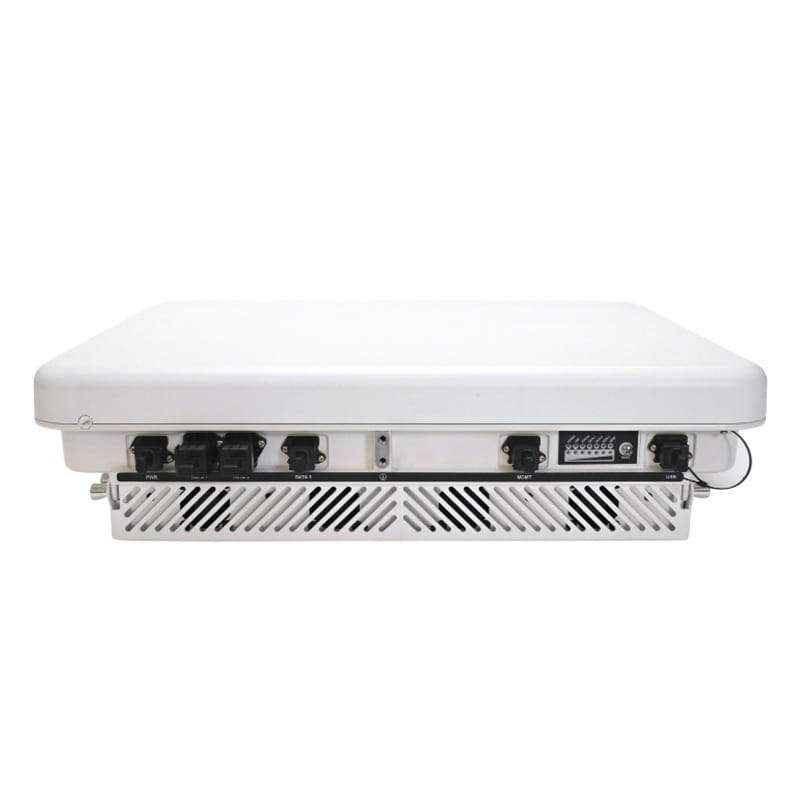

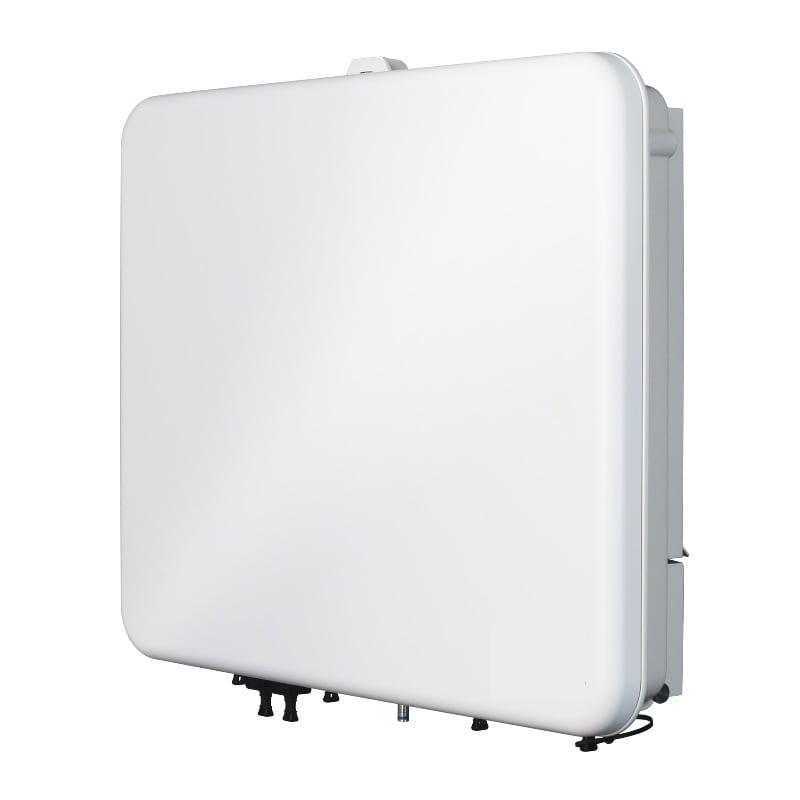

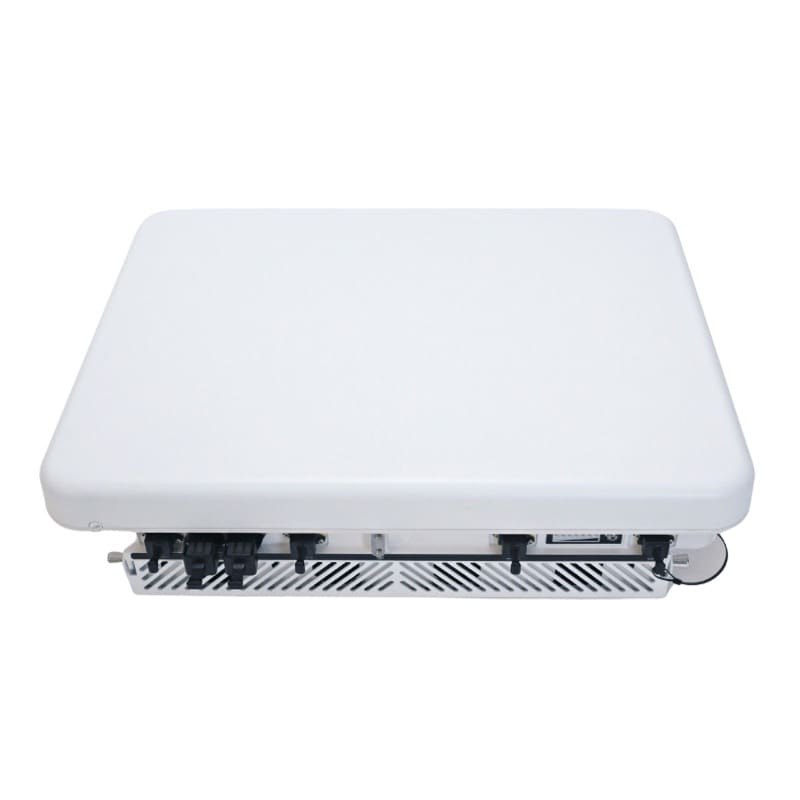

Tarana Wireless G1 5GHz Base Node (BN)

(0)No Reviews yet

SKU: 35-0134-001

$21,400.00

Manufacturer: Tarana Wireless
Data Sheet: Download
Tarana Wireless G1 Base Node BN Installation Manual: Download
Installation Guide: Download

3 in stock

Kalama WA US

3 In stock

Product Information

Tarana's design for G1 combines the ease of mobile macro-cellular radio access network deployment with a simple architecture common in fixed access. The G1 platform includes compact base nodes (BNs, each a single integrated package that includes antennas, PAs, several teraflops of digital signal processing, managed Ethernet switching, and 10G optical network interfaces) communicating with up to 256 similarly self-contained remote notes (RNs, Tarana's “customer premise equipment”) per BN. RNs are powered over an Ethernet cable run into the structure they serve.

Product Features

Up to 800Mbps aggregate throughput per link
Up to 9.6Gbps capacity/site / 80 MHz channel (using free, unlicensed spectrum)
1024 users/site (256 / sector)
Industry-first cancellation of unlicensed-band interference
Simple cellular deployment model
~2x cellular range in NLoS or LoS conditions
Compact, integrated base node and low-cost remote node
Enhanced TR101 Broadband Forum network architecture (no complex packet core required)
Comprehensive cloud suite for planning, zero-touch config, monitoring, SDN management, and support automation
Software-defined radios, enabling automated, cloud-managed performance upgrades

What's in the box?

1x Tarana Wireless G1 5.8GHz Base Node (BN)
1x Grounding Lug

What's sold separately:

Base Node (BN) Pole Mounting Kit 64-114mm (2.5-4.5in) Pole Diameter (34-0028-001)
SFP+ Long Range Industrial Temp Duplex LC Connector Single Mode (73-0031-001)
Outdoor Single Mode Fiber Optic Cable with Harting SFP to LC 100m (33-0022-100)
5m Outdoor Shielded Cat5e Ethernet Cable with Harting Push-Pull Connector (33-0007-005)
5m Outdoor Shielded Power Cable with Harting Push-Pull Connector (33-0004-005)

Specifications

Dimensions HxWxD (inches)	16.6 x 21.2 x 4.7 in (422 x 539 x 119 mm)
Weight (lb.)	42 lbs (19 kg)
Power Consumption (Typical)	275W
Radio Network Elements	Base Node
Topology	Scheduled, concentrated multi-point
Maximum # of Users	256 (per BN) 1024 (per site with 4 BNs)
Channel Bandwidth	80Mhz (2 x 40Mhz)
Aggregate Throughput (UL +DL)	Per Link 800Mbps Per BN 2.4Gbps Per site 9.6Gbps (4 BNs)
Duplexing	TDD
Downlink / Uplink Ratio	Configurable 2:1 or 4.5:1 (network-wide)
Modulation	QPSK 1/2 to 256 QAM 7.35/8 UL/DL
MIMO Streams Per Link	1x1, 2x2
MU-MIMO Streams at Aggregation Point	6 MU-MIMO streams per BN 24MU-MIMO streams per site
Spectral Efficiency	30 bps/Hz per BN75-90bps/Hz per band, configuration dependent
Range (full rate, frequency dependent)	NLOS: up to 3km LOS: Up to 15km
Recommended Frequency Reuse Factor	Universal frequency reuse (k=1) Enabled by advanced self-interference cancellation
Form Factor	Outdoor micro enclosure (fully-integrated antenna, RF, and baseband) 4 BNs for 360° coverage
Beamforming	Auto-convergent, retro-directive
Interference Management	Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC)
Scheduler	Advanced 4D frame-based scheduling
Frequency Support	5.150-5.250GHz (FCC/ISED) 5.725-5.850 GHz (FCC/ISED)
Latency (1-way avg)	< 5 msec
Model Numbers	BN 5GHz G1-BN5ASI002
Compliance	RSS-247, FCC 15E, FCC Part 96, WINFF-TS-0122
Safety	IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22
Tarana Cloud Suite	Scalable Microservices based multi-tenant network management
Interfaces	Dual 10-Gbps SFP+ and one 1-Gbps data interfaces Additional 1 Gbps mgmt Ethernet interface. -48V DC Power
Environmental rating	IP67
