Tarana Wireless 3GHz Remote Node Bundle (Must buy in quantities of 5)
- SKU: 35-0177-001
$1,315.00
- Manufacturer: Tarana Wireless
- Data Sheet: Download
Product Information

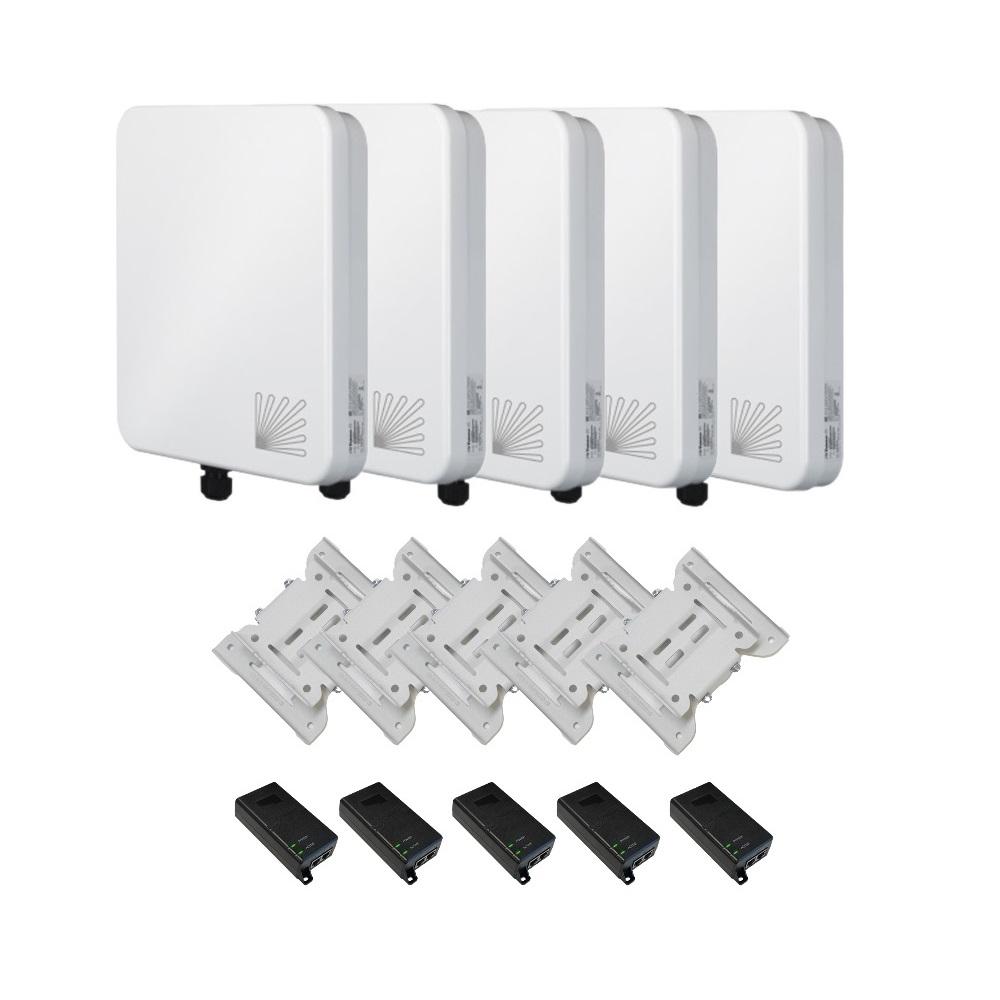

Product Includes
- 3.6 GHz Remote Node (RN)
- 100Mbps Perpetual License
- POE (44-0027-001)
- Mount (34-0027-001)
**5-Pack bulk packaging, bundle priced per set, sold only in multiples of 5**
US cord sold separately:
- CYG-CPCNAC13-6FT
- CYG-CPCNAC13-3FT
Specifications
Specifications 35-0177-001
| G1 radio network platform | Base node (BN) |
| Topology | Scheduled, concentrated multi-point |
| Duplexing | TDD |
| Downlink/uplink ratios | Network profile 1 (up to 15 km range) g 4.5:1 Network profile 2 (up to 30 km range) g 4:1 Network profile 5 (up to 15 km range) g 2.67:1 Network profile 6 (up to 15 km range) g 1.75:1 |
| SLA profiles | Configurable per RN |
| Modulation | QPSK 1/2 to 256QAM 7.35/8 UL/DL |
| Spectral efficiency | 30 bps/Hz per BN, up to 90 bps/Hz per band, configuration dependent |
| Range (full rate, frequency dependent) | NLoS LoS |
| Recommended frequency reuse factor | Universal frequency reuse (k=1), enabled by advanced self-interference cancellation |
| Beamforming | Auto-convergent, retro directive |
| Interference management | Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC) |
| VLANs | Per BN or RN for user data, and management VLAN, Subscriber VLAN pass through |
| QoS | DSCP, VLAN 802.1p |
| Latency (one-way average) | <5 ms |
| Max Ethernet MTU | 2048 bytes |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINNF-TS-0122 |
| Standards and safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Data plane security | RF Link Encryption AES-128 |
| Tarana Cloud Suite (TCS) | Scalable microservices based multi-tenant network management Zero-touch provisioning and control of radios with streaming telemetry Firmware and configuration management 24x7x365 KPI monitoring and management Fault management and historical events Network analytics SAS and AFC domain proxy Northbound Rest-API for customer and operator portal (B/OSS) |
| Operating temperature range | -40°C to 55°C (-40ºF to 131ºF) |
| Remote Nodes (RNs) | |
| Frequency support | 3.550–3.700 GHz (US CBRS, Cat B) |
| Throughput (aggregate) | 800 Mbps |
| Channel bandwidth | 80 MHz (2 x 40 MHz) |
| MIMO streams | 1x1, 2x2 |
| Model numbers | G1-RN3ASI001 G1-RN3ASI011 |
| Weight | 7 lbs |
| Dimensions (H x W x D) | 11 x 12.5 x 3.3 inches |
| Power consumption (typical at 55ºC) | 49 W |
| Power input | 48V Passive PoE Part # 44-0017-001 |
| Mounting | Band clamp for pole mount (1.5–2.5 inches OD); mount weights 1.2 lbs |
| Form factor | Outdoor, single enclosure with fully-integrated antenna, RF, and baseband |
| Antenna | Fully integrated |
| Interfaces | 1 Gbps Ethernet interface with PoE support, RJ45 pinout T568B |
| Environmental rating | IP66 |
