Product Information
The Tarana Wireless 3.55-3.7 GHz G1 base node combines the ease of mobile macro-cellular radio access network deployment with a simple network architecture common in fixed access.
The G1 platform includes compact base nodes (BNs, each a single integrated package that includes antennas, PAs, several teraflops of digital signal processing, managed Ethernet switching, and 10G optical network interfaces) communicating with up to 256 similarly self-contained remote notes (RN), Tarana's Customer Premise Equipment, per BN. Tarana Remote Nodes are powered over an Ethernet cable run into the structure that they serve.
- Up to 800Mbps aggregate throughput per link
- Up to 9.6Gbps capacity/site / 80 MHz channel (using free, unlicensed spectrum)
- 1024 users/site (256 / sector)
- Industry-first cancellation of unlicensed-band interference
- Simple cellular deployment model
- ~2x cellular range in NLoS or LoS conditions
- Compact, integrated base node and low-cost remote node
- Enhanced TR101 Broadband Forum network architecture (no complex packet core required)
- Comprehensive cloud suite for planning, zero-touch config, monitoring, SDN management, and support automation
- Software-defined radios, enabling automated, cloud-managed performance upgrades
What's in the box?

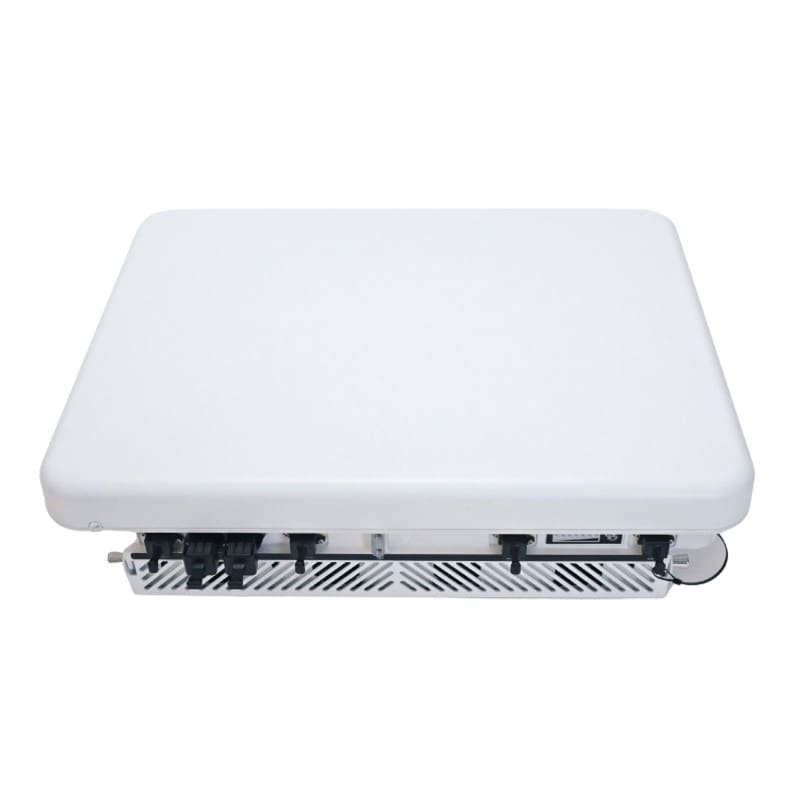

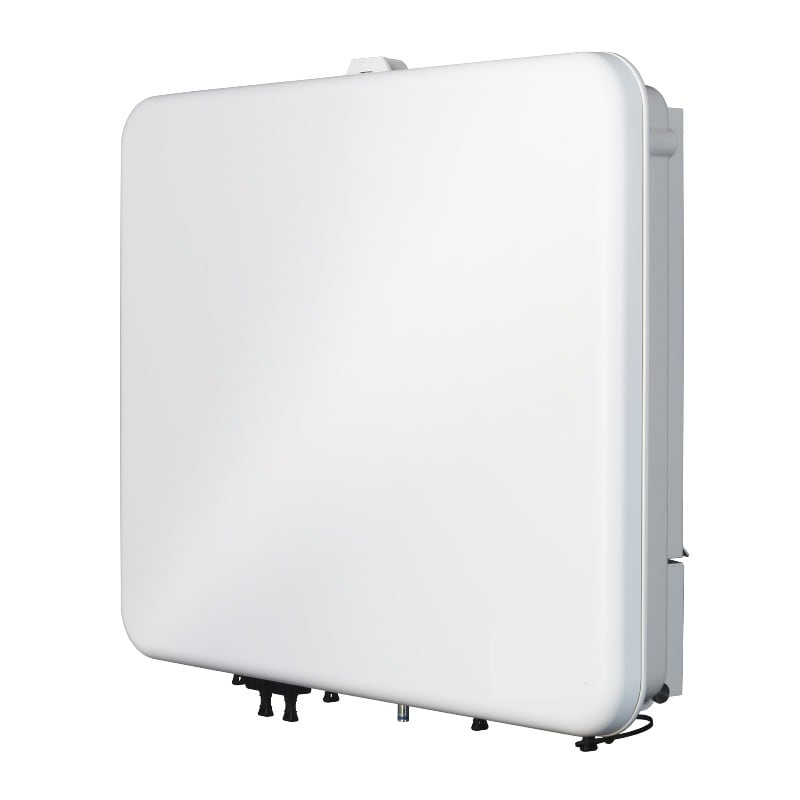

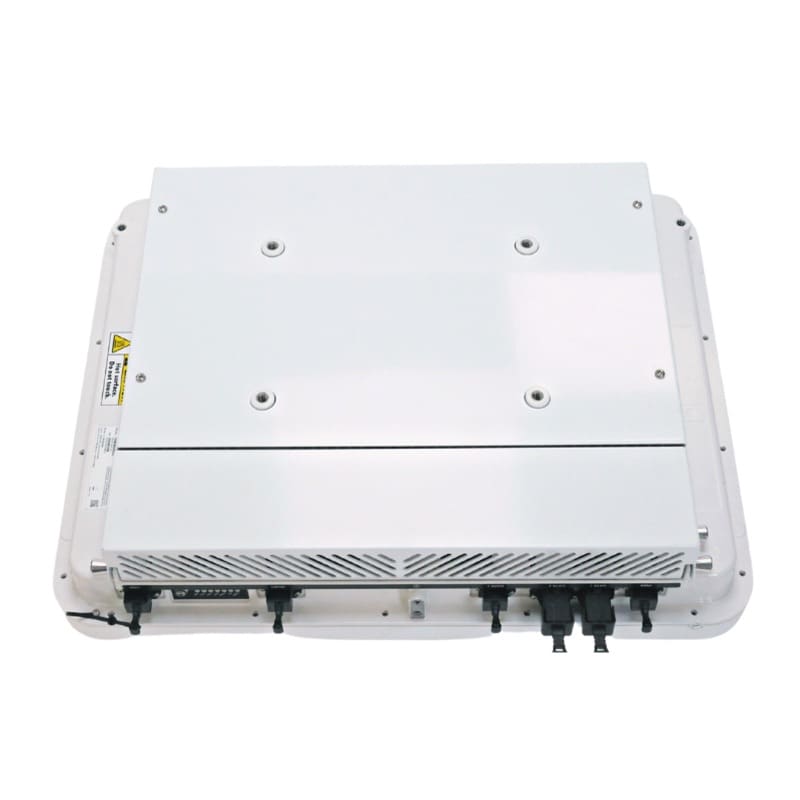

- 1x Tarana Wireless G1 3.55-3.70GHz CBRS Base Node (BN)
- 1x Grounding Lug
- Base Node (BN) Pole Mounting Kit 64-114mm (2.5-4.5in) Pole Diameter (34-0028-001)
- SFP+ Long Range Industrial Temp Duplex LC Connector Single Mode (73-0031-001)
- Outdoor Single Mode Fiber Optic Cable with Harting SFP to LC 100m (33-0022-100)
- 5m Outdoor Shielded Cat5e Ethernet Cable with Harting Push-Pull Connector (33-0007-005)
- 5m Outdoor Shielded Power Cable with Harting Push-Pull Connector (33-0004-005)
Specifications
Specifications
| Dimensions HxWxD (inches) | 16.6 x 21.2 x 5.1 in (422 x 539 x 130 mm) |
| Weight (lb.) | 42 lbs (19 kg) |
| Power Consumption (Typical) | 275W |
| Mounting | Saddle clamp, band clamps for pole mount (2-3/8" - 5" OD) |
| Radio Network Elements | Base Node |
| Topology | Scheduled, concentrated multi-point |
| Maximum # of Users | 256 (per BN) 1024 (per site with 4 BNs) |
| Channel Bandwidth | 80Mhz (2 x 40Mhz) |
| Aggregate Throughput (UL +DL) | Per Link 800Mbps Per BN 2.4Gbps Per site 9.6Gbps (4 BNs) |
| Duplexing | TDD |
| Downlink / Uplink Ratio | Configurable 2:1 or 4.5:1 (network-wide) |
| Modulation | QPSK 1/2 to 256 QAM 7.35/8 UL/DL |
| MIMO Streams Per Link | 1x1, 2x2 |
| MU-MIMO Streams at Aggregation Point | 6 MU-MIMO streams per BN 24 MU-MIMO streams per site |
| Spectral Efficiency | 3bps/Hz per BN 75 - 90bps/Hz per band Configuration dependent |
| Range (full rate, frequency dependent) | NLOS: up to 3km LOS: Up to 15km |
| Recommended Frequency Reuse Factor | Universal frequency reuse (k=1) Enabled by advanced self-interference cancellation |
| Form Factor | Outdoor micro enclosure (fully-integrated antenna, RF, and baseband) 4 BNs for 360° coverage |
| Beamforming | Auto-convergent, retro-directive |
| Interference Management | Self-interference cancellation, Advanced Burst Intereference Cancellation (ABIC) |
| Scheduler | Advanced 4D frame-based scheduling |
| Frequency Support | 3.550-3.700GHz (US CBRS) |
| Latency (1-way avg) | < 5 msec |
| Model Numbers | BN CBRS (Cat B) G1-BN3ASI001 |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINFF-TS-0122 |
| Safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Tarana Cloud Suite | Scalable Microservices based |

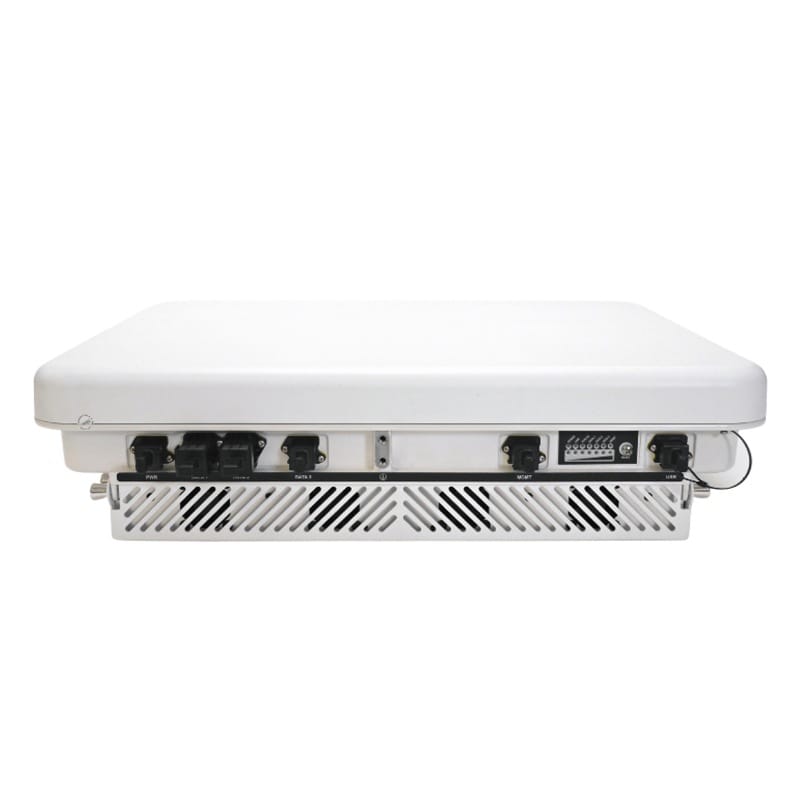

| Interfaces | Dual 10-Gbps SFP+ and one 1-Gbps data interfaces Additional 1 Gbps mgmt Ethernet interface. -48V DC Power |
