Tycon Power DC to DC Converter 9-36VDC Input to 24V Passive Output
- SKU: TP-DCDC-1224G
Product Information
Product Features
- Input Voltage 9-36VDC; Output 24VDC (Passive)
- Integrated Gigabit PoE Inserter
- High Power 24W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation

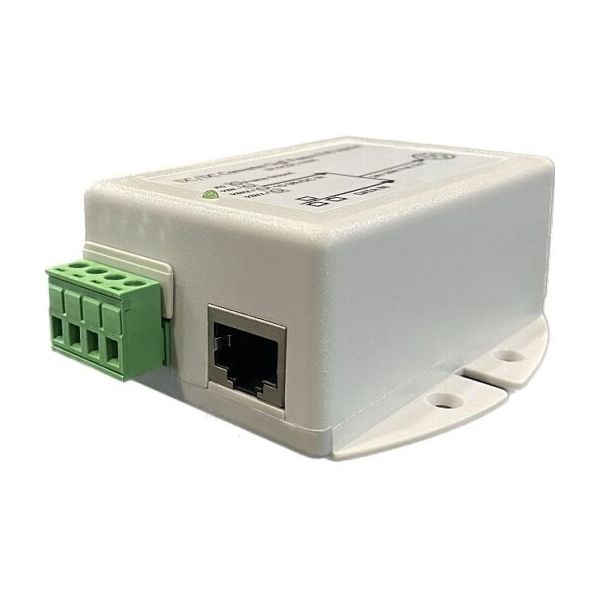

- Removable Wire Terminal Input for up to 12AWG wires
- I.T.E. Power Supply, UL Listed
The TP-DCDC-1224G is a low-cost and high-efficiency solution for those requiring Passive Power over Ethernet from a 12VDC voltage source like a battery system or vehicle. It has an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

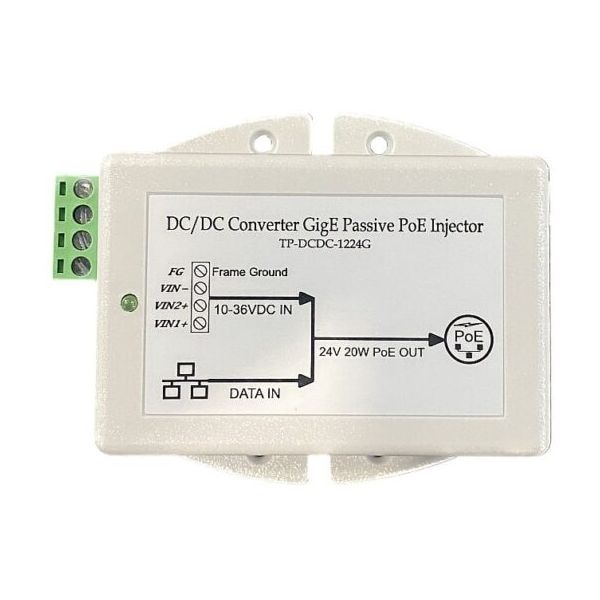

They have a common (-) and two (+) for connecting two power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

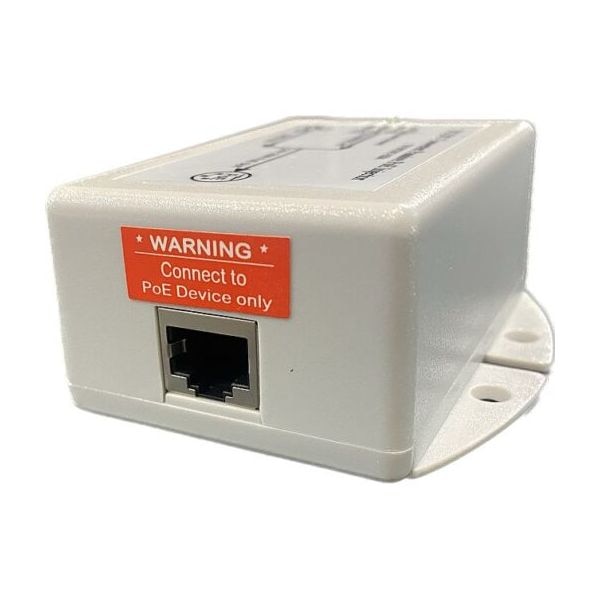

They accept gigabit data in to a shielded RJ45 Jack and provide gigabit data out and PoE power on the shielded RJ45 output jack. It supplies power on Ethernet pins 4,5(V+) and 7,8(V—). This converter has various protections for surges, short circuits, and overload. Other models have power outputs up to 24W.
Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)
Specifications
Specifications TP-DCDC-1224G
| DC input voltage | 9VDC – 36VDC |
| DC input connector | Removable screw type compression wire terminal (12 AWG max) |
| DC output voltage | 24V (passive) |
| Data in & data/PoE output connector | RJ45 (shielded) |
| Output current (max) | 0.8A |
| Output power (max) | 19W |
| Self consumption power | 1W |
| Efficiency (min) | 75% |
| Storage temperature | -40 to +80°C (-40 to +176°F) |
