Ubiquiti UISP airMAX NanoStation 5AC Loco CPE (US)
- SKU: Loco5AC-US
$49.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

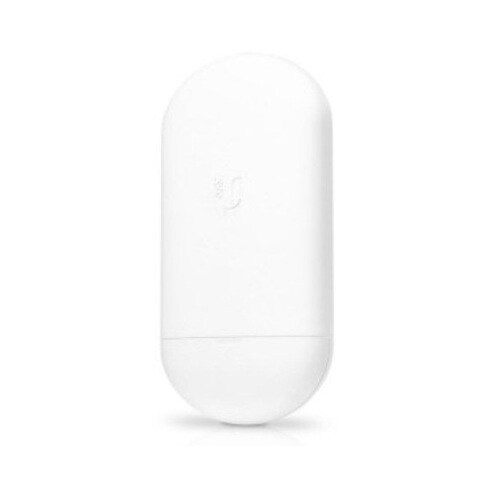

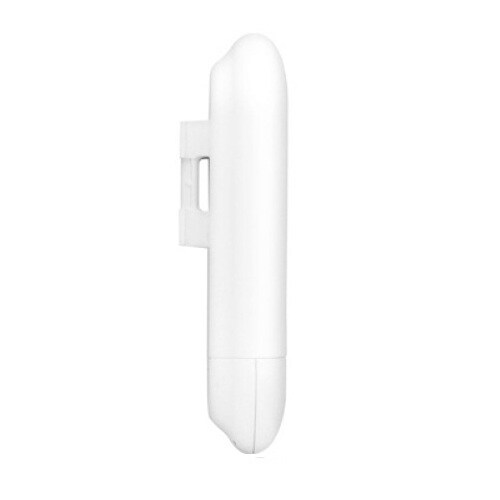

Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
Specifications
Specifications NS-5ACL-US
| Throughput | Up to 450+ Mbps Real TCP/IP Throughput |
| Operating Frequency (MHz) | 5150 - 5250, 5725 - 5850 |
| Management Radio (MHz) | 2412 - 2462 |
| Power Supply | 24V, 0.5A Gigabit PoE Supply* |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 13 dBi |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| LEDs | (1) Power |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Non-condensing |
