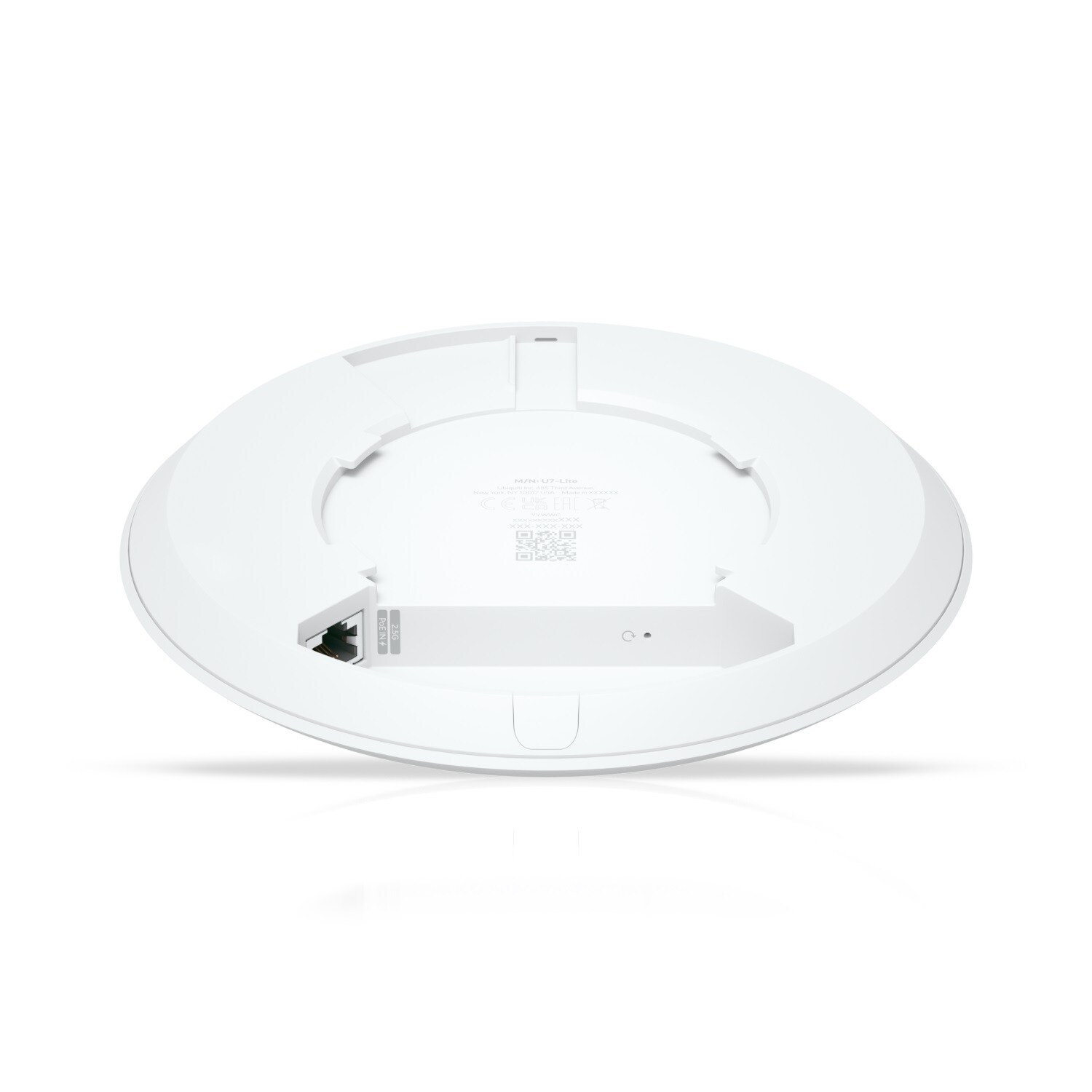

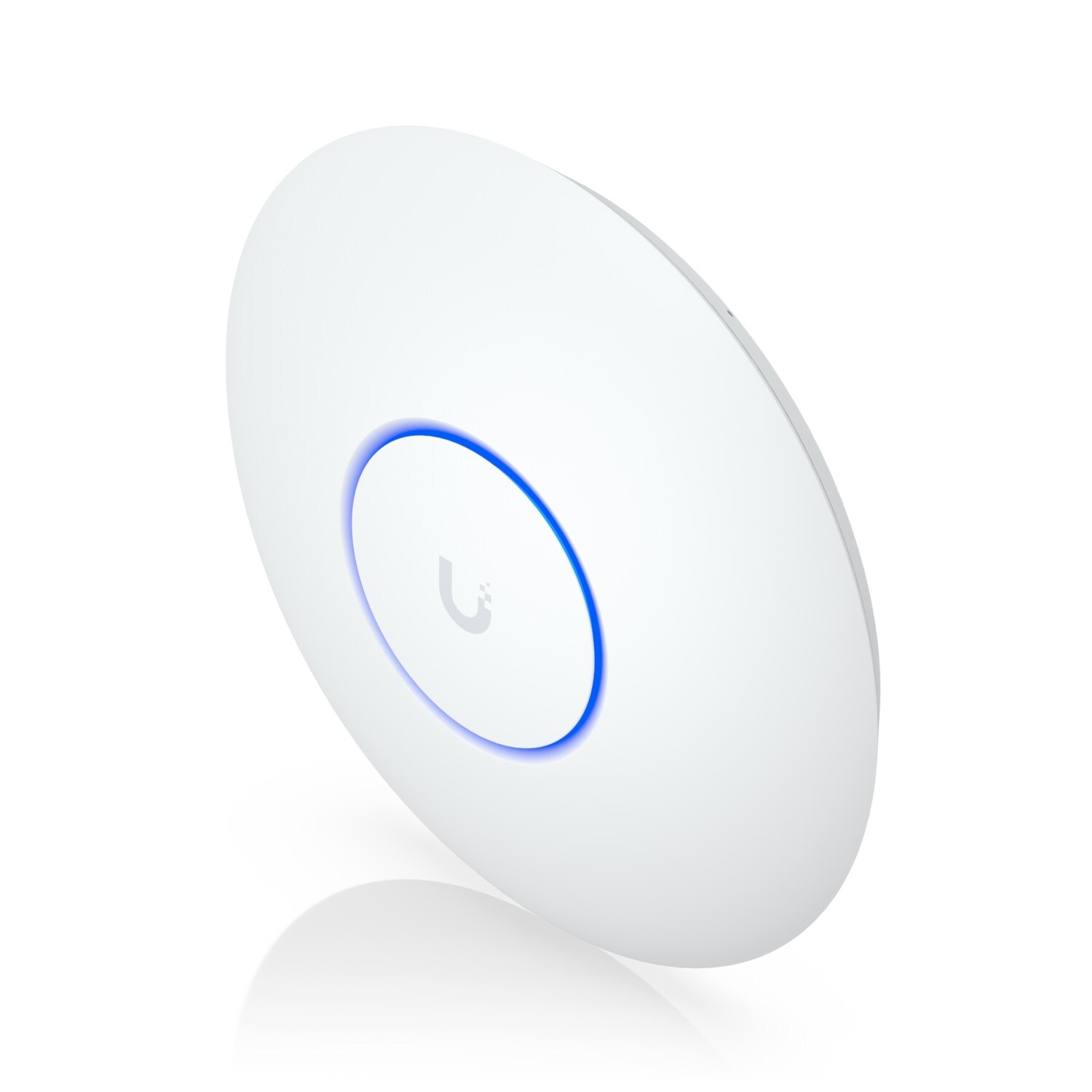

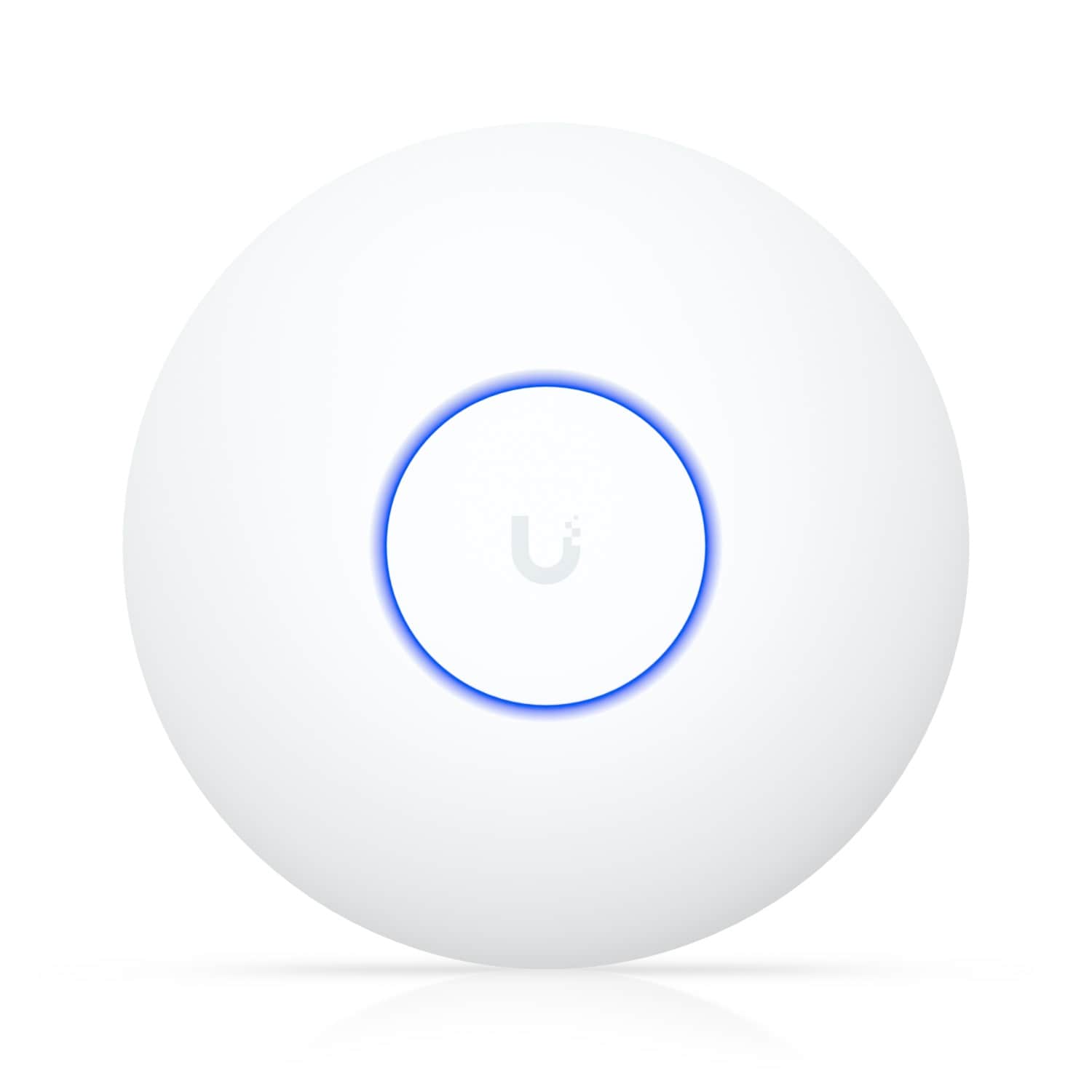

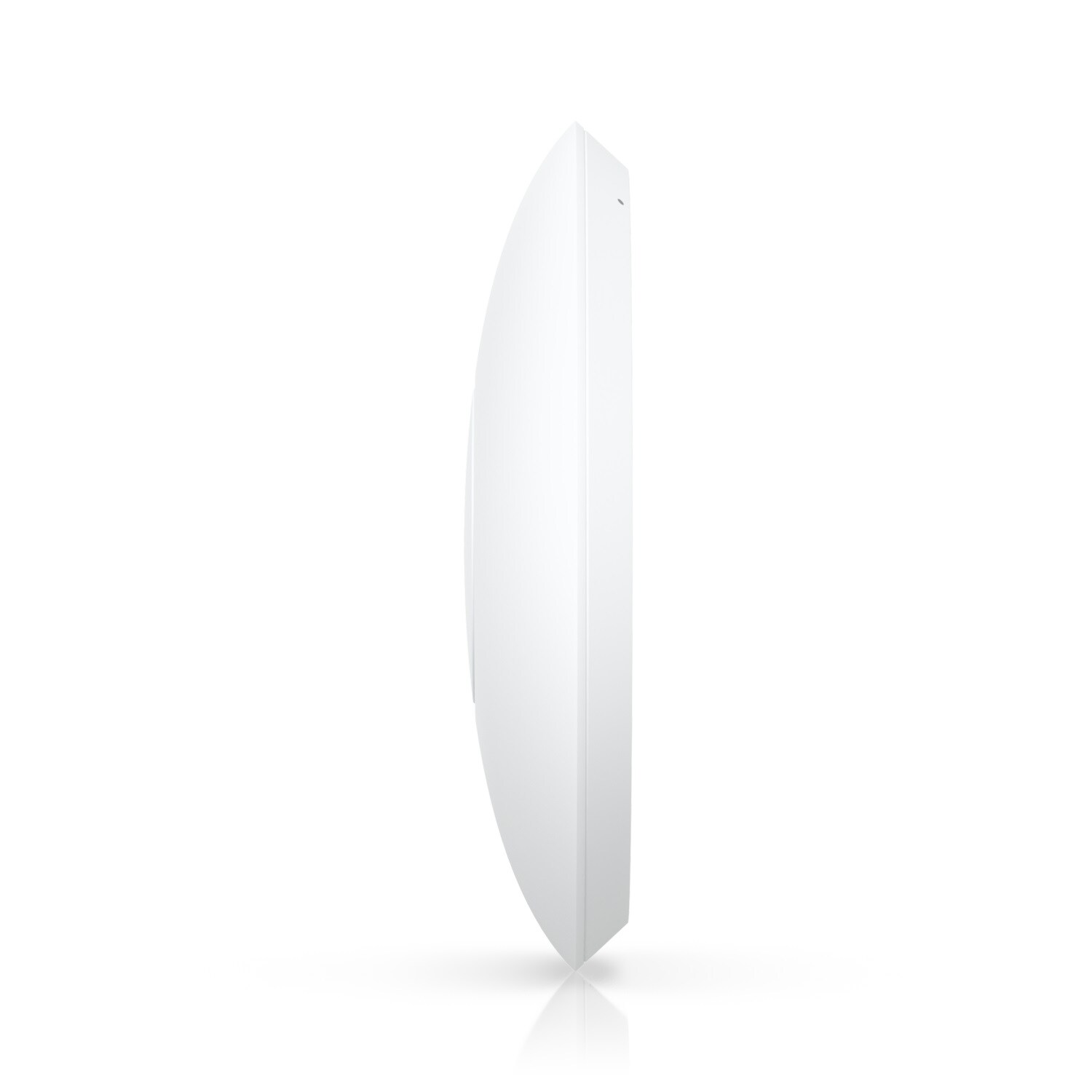

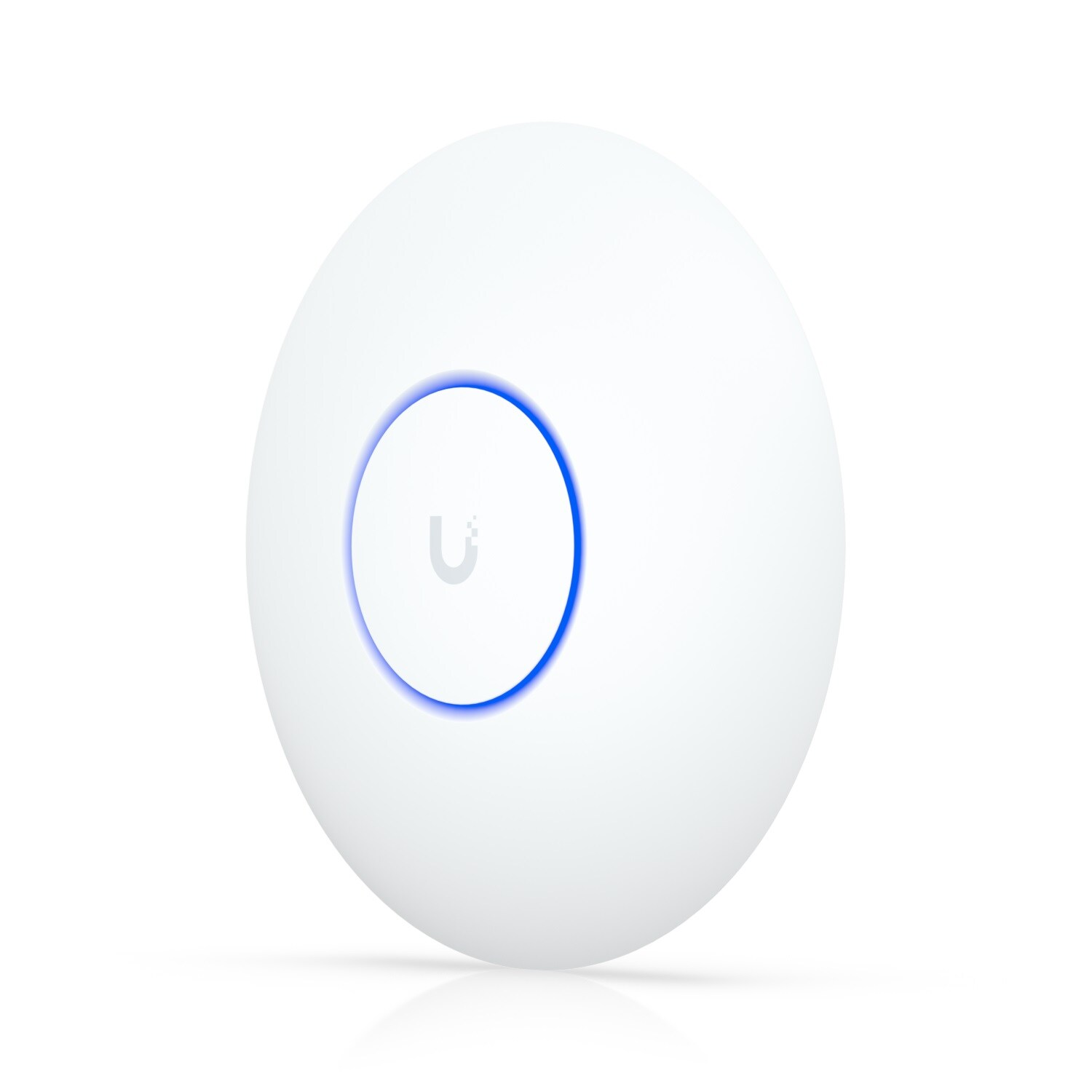

Ubiquiti Networks UniFi U7 Lite US
- SKU: U7-Lite-US
$99.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Features:
- WiFi 7
- 4 spatial streams
- 115 m² (1,250 ft²) coverage
- 200+ connected devices
- Powered using PoE
- 2.5 GbE uplink
Specifications
Specifications U7-Lite-US
| Dimensions | Ø171.5 x 33 mm (Ø6.8 x 1.3") |
| Weight | 313 g (0.69 lbs) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate, galvanized steel (SGCC) |
| Hardware | |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 13W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 24 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240*) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 5 dBi – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -30 to 40° C (-22 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240*) |
| Application Requirements | |
| UniFi Network | Version X and later |
| UniFi OS | Version X and later |
