Product Information

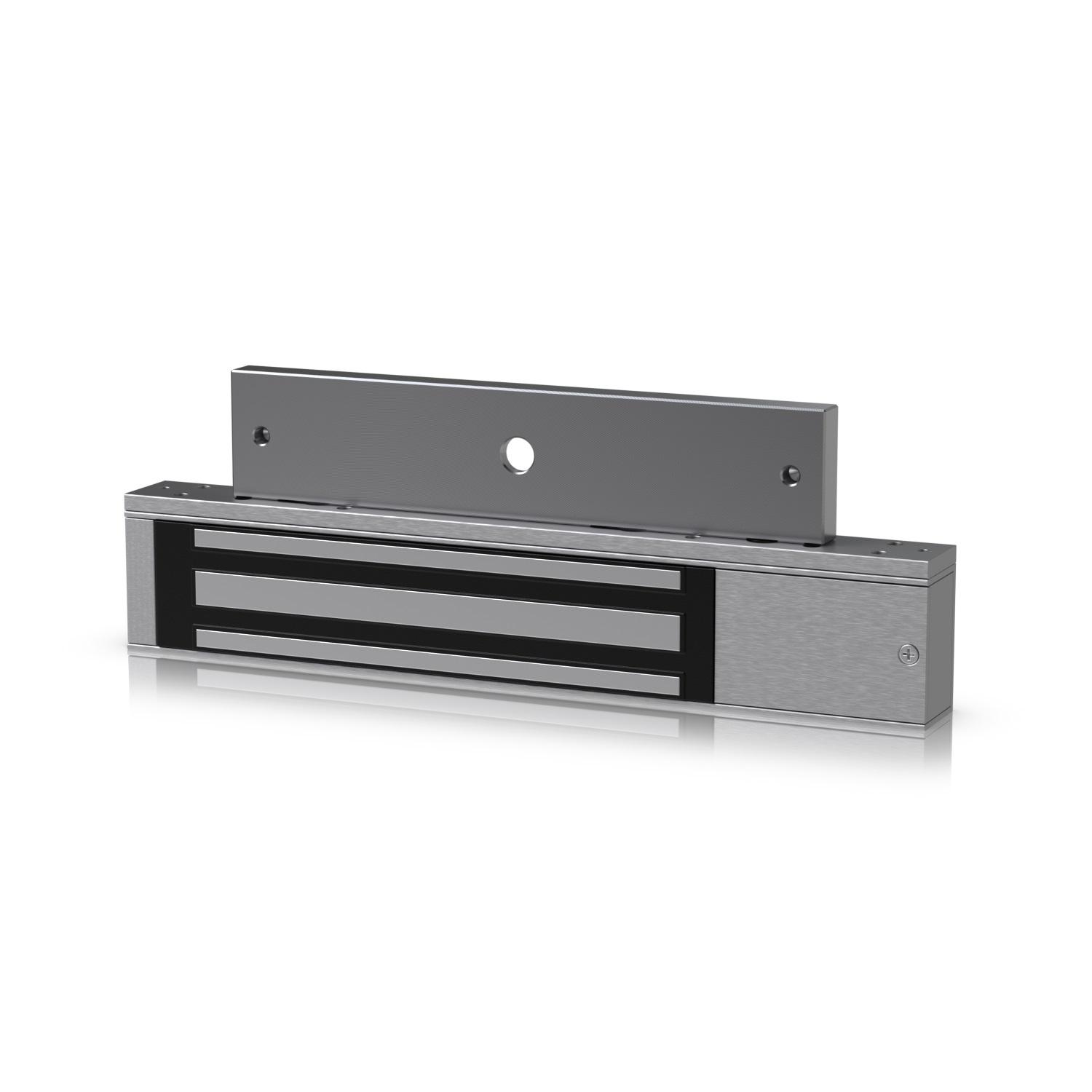

Ubiquiti UniFi Access Lock Magnetic 270kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub). Can be installed on a wide variety of door types*
Compatibility: EAH-8, UA-Hub-Gate, UA-Ultra, UA-Hub-Door, UA-Hub-Door-Mini, UA-Hub

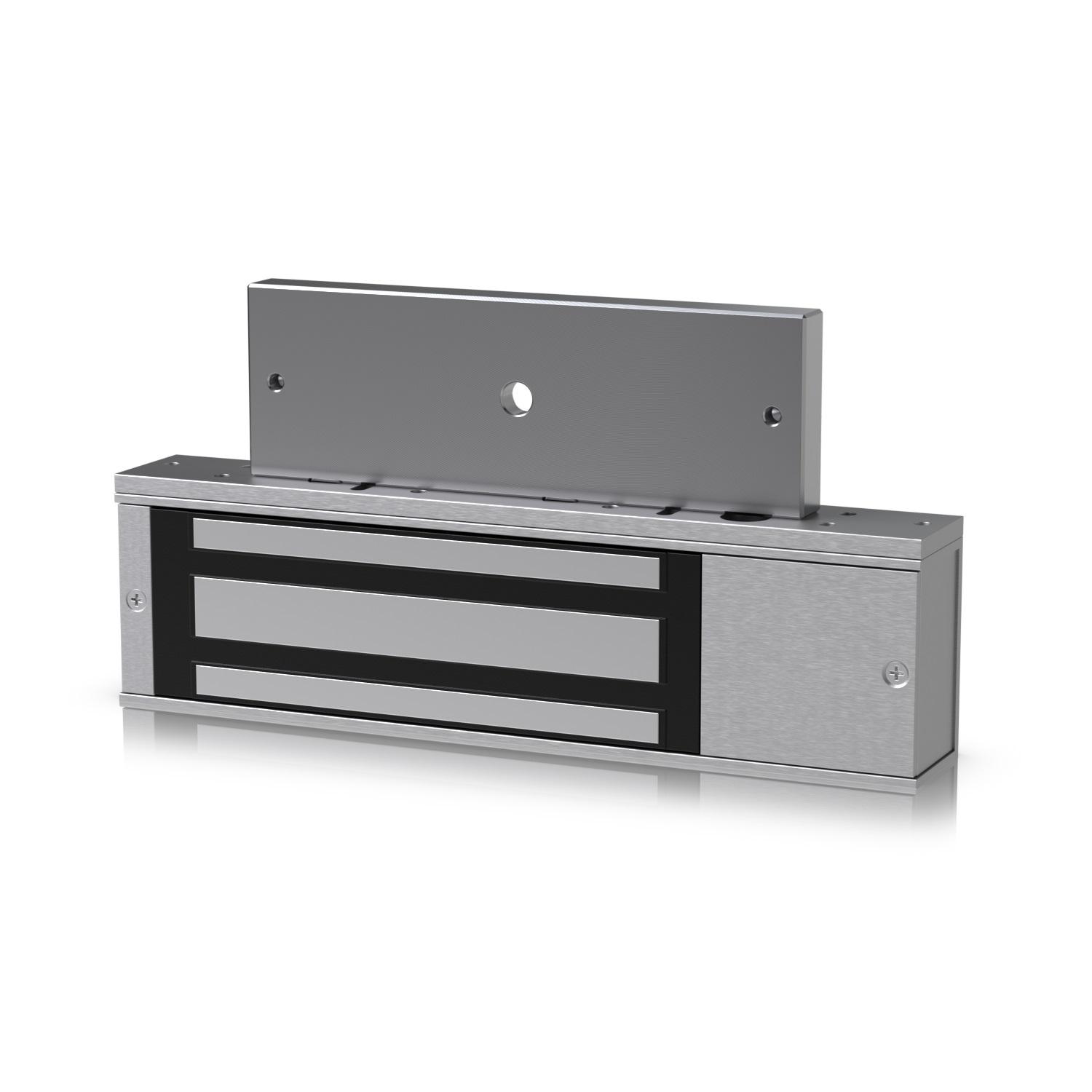

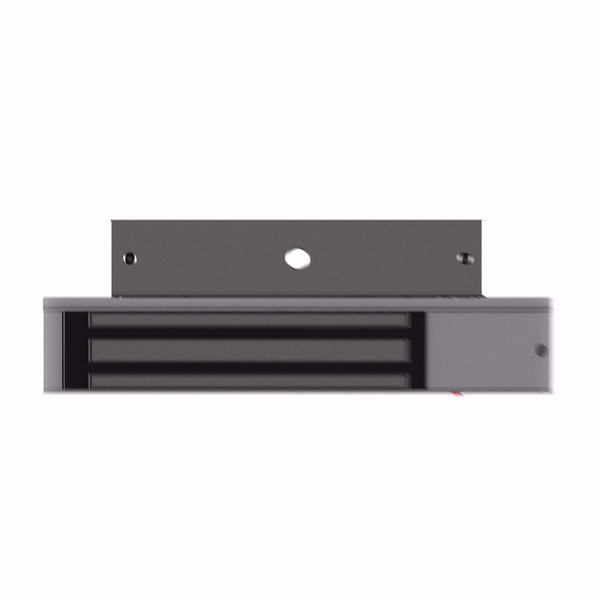

Ubiquiti UniFi Access Lock Magnetic 540kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).
The Access Lock Magnetic is a fail-safe magnetic lock that connects to a UA Hub so you can unlock outfitted inswing and outswing doors from anywhere. This 12V DC-powered lock sends real-time access and status details to your UA Hub. This lock can be installed on a wide variety of door types.
Features
- Holds up to 540 kg (1200 lb)
- Can be installed on a wide variety of door types*
- Access Lock Magnetic 540kg: All types excluding full glass.
Specifications

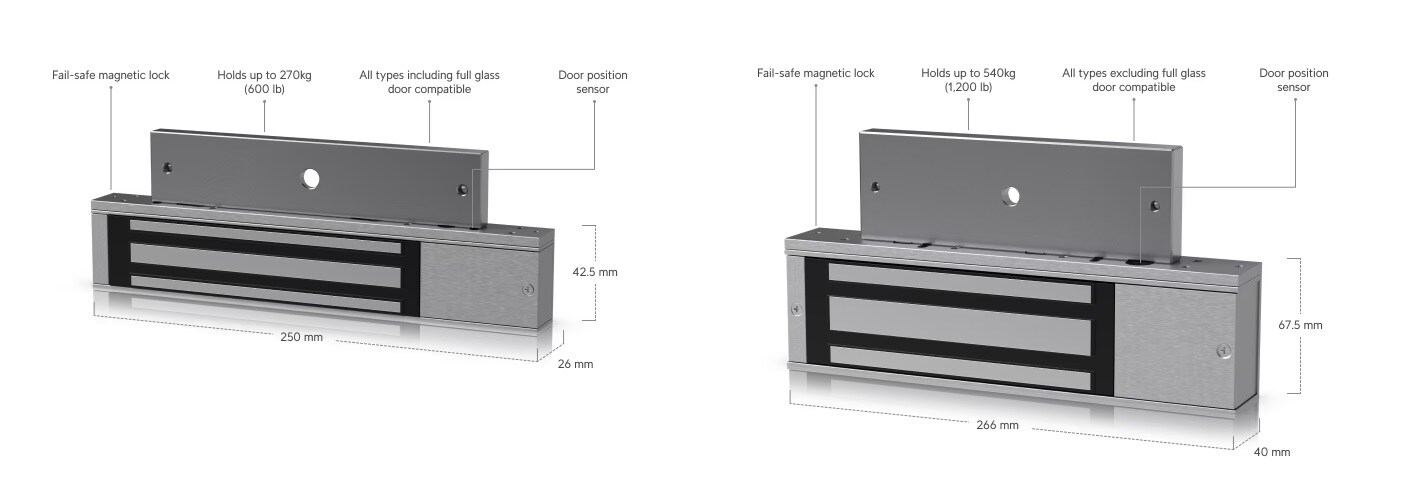

Specifications UA-Lock-Magnetic-270kg
| Dimensions | |
| Lock body | 250x 42.5x 26mm(9.8x 1.7x 1" ) |
| Install plate | 250x 25x 5mm (9.8x 0.98x 0.2" ) |
| Armature | 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") |
| Weight | |
| Lock body | 1 kg (2.2 lb) |
| Install plate | 70 g (0.15 lb) |
| Armature | 600 g (1.3 lb) |
| Hardware | |
| Voltage | 12VDC |
| Current power | UA-Lock-Magnetic-270kg: 800mA ±10% |
| Wiring connection | Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub) Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/-(DPS-onUA-Hub) |
| Lock type | Fail safe lock Single door |
| Holding force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) |
| LED | Green: unlocked Red: locked |
| Suitability | UA-Lock-Magnetic-270kg: wooden/metal/glass door |
| Mounting accessories | UA-Lock-Magnetic-270kg |
| L bracket | door thickness < 42 mm (< 1.7"), outward opening door |
| Z bracket | used with L bracket for inward opening door |
| U bracket | used with glass door |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
Specifications UA-Lock-Magnetic-540kg
| Dimensions | |
| Lock body | 266 x 67.5 x 40 mm (10.47 x 2.66 x 1.57") |
| Install plate | 266 x 40 x 6 mm (10.47 x 1.57 x 0.24") |
| Armature | 185 x 61 x 16 mm (7.28 x 2.4 x 0.63") |
| Weight | |
| Lock body | 2.9 kg (6.4 lb) |
| Install plate | 145 g (0.3 lb) |
| Armature | 1.4 kg (3.1 lb) |
| Enclosure materials | Device/brackets: aluminum Armature: steel |
| Hardware | |
| Voltage | 12VDC |
| Current power | UA-Lock-Magnetic-540kg 500mA ±10% |
| Wiring connection | Connect below terminals to UA-Hub: Lock 12V/NC (connectto Power Lock Relay NC on UA-Hub) Lock 12V/COM (connectto Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/- (DPS- on UA-Hub) |
| Lock type | Fail safe lock Single door |
| Holding force | UA-Lock-Magnetic-540kg 540 kg (1,200 lb) |
| LED | Green: unlocked Red: locked |
| Suitability | UA-Lock-Magnetic-540kg Wood/metal door |
| Mounting accessories | UA-Lock-Magnetic-540kg L bracket: door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracketfor inward opening door |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
